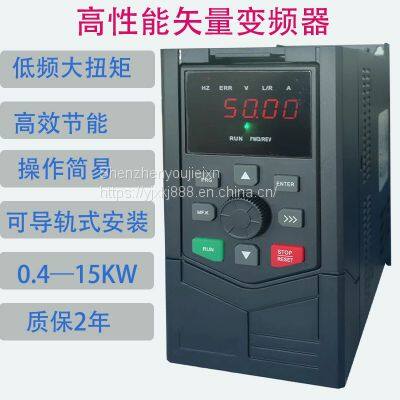

Vector type universal frequency converter single-phase 220V 0.75KW 0.4KW—2.2KW

FST-B vector overload type

Product range: Voltage level: 220V, 380V-450V

Power range: 0.4KW --630KW.

Frequency range: 0-3200Hz

Applicable scope:

Mining applications: belt conveyors, air compressors, ball mills, centrifugal dehydrators, etc;

Metal processing machinery: lathes, milling machines, planers, grinders, boring machines, CNC lathes, woodworking machinery, air compressors, etc;

Textile machinery: carding machines, drawing machines, roving machines, warping machines, large garden machines, warp knitting machines, dyeing and finishing machines, shuttleless looms, non-woven fabric production lines, etc;

? Petroleum: pumping units, water injection pumps, polymer injection pumps, submersible pumps, compressors, oil transfer pumps, etc;;

Construction: cement and glass main transmission equipment, brick factory brick making machines;

Rubber and plastic processing machinery;

Wire and cable extrusion equipment, chemical fiber extrusion equipment;

Lifting machinery: various types of passenger and freight elevators, tower cranes for lifting, luffing, slewing, etc;

Metallurgy: curling machine, uncoiler, drum machinery, roller drive, etc.

Product features:

Current vector frequency converter, automatic torque increase; It can drive asynchronous motors and synchronous motors.

Optional accessories: multi-functional input/output expansion card, brake component, communication card, PG card, programmable control card.

Frequency source: digital setting, analog (current, voltage) setting, pulse setting, and serial communication port setting.

LCD operation panel: capable of copying parameters; Comprehensive monitoring of content.

Protection function: short circuit detection of powered on motor, input/output phase loss detection, overcurrent protection, overvoltage protection, undervoltage protection, overheating protection, overload protection

Protection.

Other functions: current limiting function, PID closed-loop control, automatic voltage adjustment, overvoltage and overvoltage stall control, braking function timing function, swing frequency control

Control.

The auxiliary frequency and main frequency can be added, subtracted, or minimized.

? Shutdown frequency memory, running timing, speed tracking, etc

Frequency converter undervoltage point adjustment, adjustable from 50% to 150% of rated voltage.
