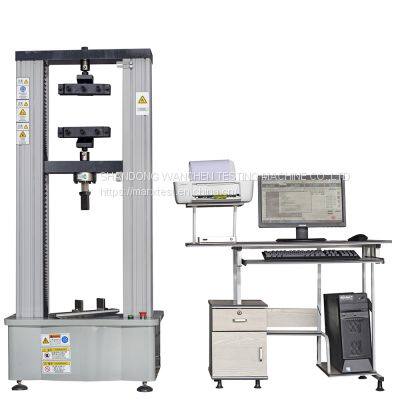

Computerized Electronic Universal Geotextile Tensile Testing Machine ETM-50 50KN

1.Application

This testing machines is equipped with computer, printer, and general test software, to give an accurate determination of metal the material tensile strength, yield strength, the provisions of non-proportional extension strength, elongation, elastic modulus mechanical properties. Test results can print (force - displacement, force - deformation, stress - displacement, stress - deformation, force - time distortion - time) six kinds of curves and related test data, with the software self-test function that can self-diagnose problems. It is ideal testing equipment for the industrial and mining enterprises, scientific research units, universities, engineering quality supervision station. They are perfect testing instrument project quality testing section, universities and colleges, research institution and industrial and mining.

2. Relevant Standard:

ASTM E8 - 16 Standard Test Methods for Tension Testing of Metallic Materials

ISO 6892 -1 Metallic Materials -Tensile testing Part 1: Method of test at room temperature

3. Main Technical Parameters:

Model: ETM-50

Max. load force: 50KN

Crosshead Travel Space: 1000mm

Effective Tensile Space: 700mm

Effective Test width: 450mm

Crossbeam travel speed: 0.001-500mm/min

Testing Specification: ETM-50

Load accuracy: Class 1 (Class 0.5 optional)

Load range: 1%-100%FS (0.4%-100%FS optional)

Load resolution: 1/300000

Deformation Measurement Range: 0.2%～100%FS

Deformation accuracy: ≤±1% (≤±0.5% optional)

Deformation resolution: 1/500000

Load control speed: 0.01~50 kN/s

Deformation control speed: 0.002~0.5mm/s
