kammprofile gasket

Kammprofile gasket   corrugated gasket

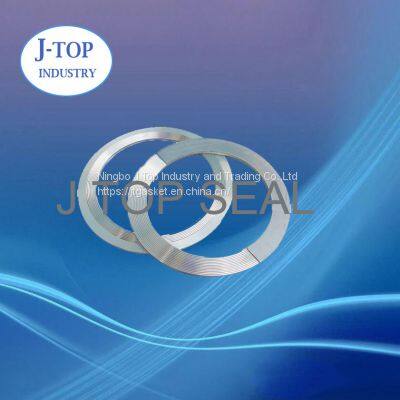

The kammprofiled gasket made by our company is a composite gasket, which utilizes a serrated metal core with a soft facing material. The metal core is machined on each contact face with concentric serrations which provides high pressure areas, ensuring that the soft coating flows into any imperfection in the flange even at relatively low bolt loads. The result is a gasket, which combines the benefits of soft, cut material with the advantages of seal integrity associated with metallic gaskets.

Expanded graphite is the most common facing material used for Maxiprofile gaskets. However, other materials can be used, such as PTFE for chemically aggressive duties or mica for high temperature. Material:Metal mateiral: soft iron,stainless as 304,316,410,304L,316L ,Ni, Monel, Inconel, Brass, Hastelloy ,Sealing material: flexible graphite,ptfe,noasbestos, Eptfe, silver.

Gerneral Size: DN 10-2000mm

Standard: ASME, ASNI, API, JIS,JPI, EN, DIN

We can make according to your need. Your specification is WELCOME.
