Home > Products > Huiyeda > Huiyeda wall mounted charging module M1B02L M1B02L-2 M1A04L rectifier module DC panel 220V

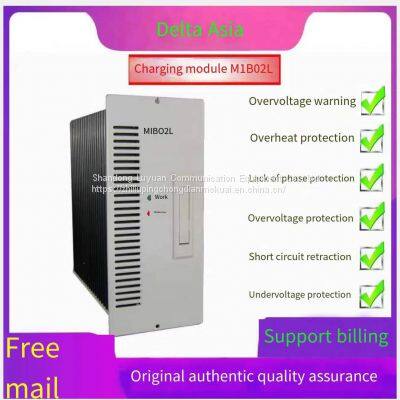

Huiyeda wall mounted charging module M1B02L M1B02L-2 M1A04L rectifier module DC panel 220V
USD $400 - $434
/ Piece
1 Piece(Min.Order)
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
-
Sales of DC panel spare parts for new and original Viti/Emerson EAU01 intelligent AC power distribution monitoring module
-
EMERSON Emerson HD4825-3/HD4830-3 communication power supply rectifier module DC screen
-
Emerson D-level lightning protector SPD12Z lightning protection box SPD11Z spot new original DC screen
-
NZD22010-3R Power Supply Module NZD11020-3R DC Charging High Frequency Rectification Module Sales
-
Zhongheng MDL22020 DC screen high-frequency rectifier module Charging module Power module Brand new and original
-
New Taida PR-4830 DC screen charging module High frequency switching power supply module New original sales
Product Details
| Brand Name | Huiyeda | Model Number | M1B02L |
Product Description
summary:
ANT-M1B02L (M1A04L) rectifier module:
Main technical indicators:
AC input
AC input range: 220V+20% - 15%
AC frequency range: 50HZ ± 10%
DC output
Output rating: 2A/230V (M1B02L)
4A/115V（M1A04L）
Voltage regulation range: 180V-270V (M1B02L)
90V-135V（M1A04L）
Output current limiting range: 20% - 110% × Rated current
Voltage stabilization accuracy: ≤ 0.5%
Steady current accuracy: ≤ 0.5%
Ripple coefficient: ≤ 0.1%
Conversion efficiency: ≥ 93% (full load output)
Dynamic response: recovery time ≤ 200 when 20% load jumps to 80% load ц S. Overshoot ≤ ± 5%
Audible noise: ≤ 55dB
Ambient temperature: - 5 ℃ - 45 ℃
Structural appearance
Module size (height × wide × Depth): 198mm × 80mm × 204mm (box)
220mm × 95mm (front panel)
Module weight: 3.5KG
