Macerator, Waste Water Grinder
- QINGDAO
- T/T L/C PayPal Other
- 30 days
You May Like
Product Details
| Certification | ISO, CE | Warranty | 12 months | |
| Treatment | Broken | After-sales Service | technical service all lifespan | |
| Screw | Twin-Screw | Automation | Automatic | |
| Condition | New | Transport Package | plywood case | |
| Specification | customzied | Trademark | utmach | |
| Origin | zibo, china |
Product Description
Product Application :
The Wastewater Grinder from United Tech Machinery is a high torque, low rotating speed and double shaft grinder under water. It is designed to pulverizing all kinds of solid waste ( clothing, plastic, trash, wood, aluminum can, glass bottle and other debris) to 8-12mm in the modern waste water and sludge to protect pumps, prevents binding and clogging problems. Accommodates high speed water flow while pulverizing various solid waste into particles that let the water flow harmlessly through pumps, pipes and so on.
The Waste water grinder is suitable for Waste Water Treatment Plant, Water works, Rain Pump station and the water inlet channel ( well), intercepts floating materials in water, guarantees normal operation of subsequent pump, it's an advance intercepting waste water device.
We have 4 types wastewater grinders.
They are Single drum grinder, double drum grinder, non-drum grinder, and pipe grinder, etc.
Waste Water Grinder Product principle

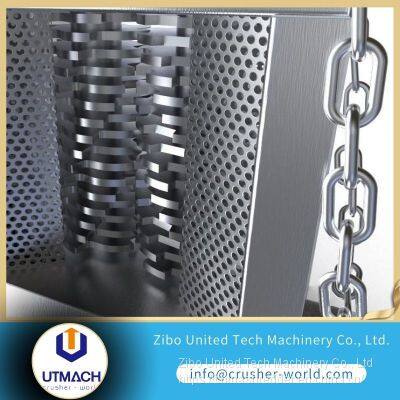

The design of the cutting blade is made of titanium alloy, and an effective and reliable product standard has been established through continuous technological progress and design innovation.
Titanium alloy cutting blades can chop up a variety of solid particles that damage other equipment and have been proven to be suitable for a variety of complex environments.
1. Solid particles enter the cutting area along with sewage;
2. Solid particles are trapped by the drum and exported to the cutting room;
3, most of the sewage and small enough particles through the drum area;
4. Solid particles are cut and pass through the cutting chamber;
5. The crushed particles flow downstream.
| Item | Model | Flow Rate (m3/h) | Pipe | Motor Power (KW) | Net Weight (kgs) |
| Pipe grinder | UTP100 | 60 | DN100 | 1.5/2.2 | 160 |
| UTP150 | 90 | DN150 | 2.2 | 185 | |
| UTP200 | 120 | DN200 | 3 | 210 | |
| UTP250 | 150 | DN250 | 3 | 245 | |
| UTP300 | 180 | DN300 | 3 | 280 | |
| Non-drum grinder | UTN60 | 60 | ≤DN300 | 2.2 | 185 |
| UTN80 | 80 | ≤DN300 | 3 | 218 | |
| UTN120 | 120 | ≤DN400 | 3 | 230 | |
| UTN170 | 170 | ≤DN600 | 4 | 265 | |
| UTN240 | 240 | ≤DN800 | 4 | 300 | |
| UTN340 | 340 | ≤DN1000 | 4 | 330 | |
| UTN480 | 480 | ≤DN1200 | 5.5 | 375 | |
| Single drum grinder | UTS400 | 400 | ≤DN500 | 4 | 436 |
| UTS600 | 600 | ≤DN600 | 4 | 486 | |
| UTS800 | 800 | ≤DN800 | 5.5 | 526 | |
| UTS1000 | 1000 | ≤DN1000 | 5.5 | 572 | |
| Double drum grinder | UTD1100 | 1100 | ≤DN800 | 5.5 | 670 |
| UTD1600 | 1600 | ≤DN1200 | 5.5 | 740 | |
| UTD2200 | 2200 | ≤DN1400 | 7.5 | 815 | |
| UTD3000 | 3000 | ≤DN1400 | 7.5 | 890 | |
| UTD4000 | 4000 | ≤DN1800 | 7.5 | 1144 | |
| UTD5200 | 5200 | ≤DN1800 | 11 | 1442 | |
| UTD6700 | 6700 | ≤DN2400 | 11 | 1570 |
Note:
The voltage about the power supply can be selected by the customer’s specific requirements.
The grinder capacity can be influenced by the material composition and output size.
Optional: Dry & Wet Motor: IP55 or Submersible & anit-explosion: IP68; control cabinet, stainless steel structure;
The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order.
