Home > Products > Purified Water System > High Purity Water Generation System/Automatic Purified Water Generation Plant

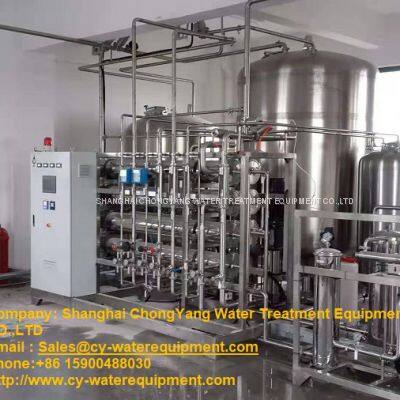

High Purity Water Generation System/Automatic Purified Water Generation Plant
USD $10000 - $100000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Shanghai
- T/T L/C
- 40 days
You May Like
-
PW And WFI Storage System with Loop pipeline
-
Purified Water Generation System with UF And EDI System
-
Reverse Osmosis Stainless Steel PURIFIED WATER ( PW) PLANT, Purification Capacity: 1000
-
Reverse Osmosis (RO) and Deionizers/Pharmaceutical Ultrapure Water Systems
-
Single or double osmotic stage+Continous Electro-Deionizer for Sanitary Reverse Osmosis Systems
-
Medical water products/Stainless Steel Water Treatment Systems/RO Water Purifier Plant
Product Details
| Brand Name | CY-Water | Place of Origin | China | |
| Model Number | CY-ROE-3000 liter -H |
Product Description
Product Name : High Purity Water Generation System/Automatic Purified Water Generation Plant
Product Description :
Pharmaceutical water is divided into four part :
| Item | Process | Way |
| 1 | Pre-treatment part | Quartz Sand filter + Activated Carbon filter |
| 2 | Reverse Osmosis Device Part | Normal & High temperature Membrane |
| 3 | Disinfection Part | Hot water ,Ozone, |
| 4 | Distribution Part | U type , |
It is important to control microorganism and bacteria for purified water equipment ,which include as following these aspect:
The choice of the host material,all of them adopt Stainless Steel 304 ,316L,BPE standard ,the conveyor part is suggest to automatically weld .
Disinfection Method : Pasteurization and Ozonization .
Pipeline and Valve : between the pipeline of the used point and valve ,we are accord to 3D regulations to execute to prevent dead water ,pipeline has certain slope .equal to 5‰.
The welding process: Our factory have automatcial machinery .
It is important to control flowrate of circulation pipeline.
The various meters monitor in time ,that know the condition of water quality at any time .
We can choose the different disinfection methods according to condition on sit .
FAQ of Technical Parameter :
| Item | Question |
| 1 | What is raw water quality ?or do you have report of raw water quality ? |
| 2 | How many capacity is it ? we can provide 1000 litre to 100 T per hour . |
| 3 | What water quality do you need ? Or where will be it used for ? for drinking ,pharmaceutical ,chemical ,cosmetics and so on . |
| 4 | What materials ? UPVC ? Stainless Steel ,304,316? |
| 5 | What brand does main components you need ? pump ?RO Membrane ?and so on . |
Company Name: Shanghai ChongYang Water Treatment Equipment CO.,LTD
Email : Sales@cy-waterequipment.com
Phone:+86 15900488030
