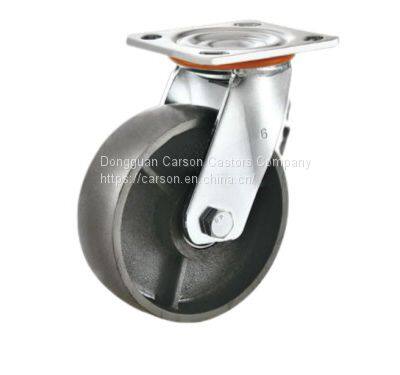

4'' Top Plate Cast Iron Trolley Wheels (350kg)

FOB Price

Negotiable / Unit

10 Units(Min.Order)

Port Yantian, Shenzhen
Payment TermsT/T L/C PayPal Cash Escrow Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin

China

Product Description

Specification for 4'' Top Plate Cast Iron Trolley Wheels (350kg)

Load Capacity: ≤350kg
Installation Method: Top Plate
Installation Size: 85x72mm
Top Plate Size: 114x100mm
Load Height: 144mm
Wheel Size: φ100xW50mm
Wheel Material: Cast Iron
Bracket Type: Swivel/Rigid
Bracket Material: Forged Steel


φ100mm	50mm	350kg	Cast Iron	Swivel/Rigid	Top Plate	85x72mm	144mm
φ125mm	50mm	400kg	Cast Iron	Swivel/Rigid	Top Plate	85x72mm	164mm
φ150mm	50mm	450kg	Cast Iron	Swivel/Rigid	Top Plate	85x72mm	190mm
φ200mm	50mm	500kg	Cast Iron	Swivel/Rigid	Top Plate	85x72mm	244mm

Description:

Trolley wheels are wheels that are used on trolleys, which are carts or small vehicles used for carrying goods or materials. Trolley wheels come in a range of sizes and can be made from different materials, such as rubber, polyurethane, or metal. They may have either solid or pneumatic tires, and may have different types of bearings to allow them to turn smoothly. Trolley wheels have a maximum load capacity, which is the maximum amount of weight they can safely support. Some trolley wheels may also have brakes to help the trolley stop or slow down. Trolley wheels are used in a variety of applications, including hand trolleys, luggage trolleys, shopping trolleys, industrial trolleys, medical trolleys, and platform trolleys.
