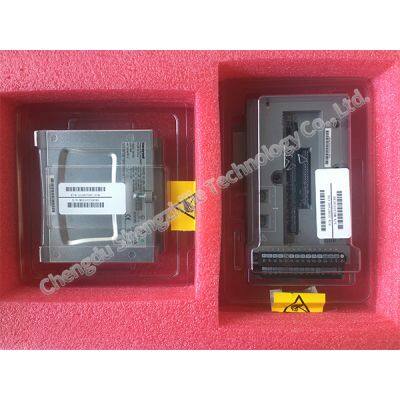

Honeywell ControlEdge? RTU SC-UMIX01

ControlEdge? PLC

1、What Is It?
With Honeywell's ControlEdge RTU process controller, users will have an edge into realizing the best utilization of their distributed assets through efficient remote monitoring, diagnostic and asset management capabilities.The RTU is designed to withstand harsh environments and for easy deployment at remote sites. It also allows remote maintenance, thereby reducing the need to travel to the field. This solution offers a unique combination of capabilities:

• Operates in harsh environments with low power consumption - ideal for remote installation and operation on solar power

• Increased availability through native controller redundancy - no switch required for I/O communication

• Hart-enabled onboard I/O and expansion I/O modules

• Removable and plug-in terminal blocks simplify wiring and reduce time for cabinet assembly

• A new onboard wireless I/O solution- no specialized modules needed to integrate ISA100 instruments. Both wired and wireless I/O devices are programmed and managed with same configuration tool.

• Built-in HART I/O, and ISA100 field instrument integration with Field Device manager

• Efficient remote management across hundreds to thousands of RTUs Reduce equipment monitoring and diagnostic time from hours to minutes.

• Electronic Flow Metering (EFM) capability for both gas and liquids per API 21.1 and 21.2

2、How Does It Work?
ControlEdge Builder is the RTU's integrated tool for designing, configuring, programming and maintaining the unit. It is compliant with IEC 61131-3 and supports languages such as Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST) and Sequential Function Chart (SFC).
ControlEdge RTU offers flexible communication, thereby allowing deployment in a wide variety of existing or new network types. Two features that really differentiate RTUs from PLCs are communications capability and with that, data logging and history backfill. Users can locally store critical data during a communication outage or a period of very low bandwidth, allowing recovery of data at a later time.
3、What Problems Does It Solve?
Honeywell's RTU helps facilities effectively manage complex remote automation and control applications while converting data from complex automation systems into relevant, actionable information. This solution meets multi-well needs in the oil and gas field where additional I/O modules are required. The ControlEdge RTU reduces travel to the field, and reduces equipment monitoring and diagnostic time from hours to minutes.Typical oil and gas applications include:

• Well-head monitoring & control

• Data concentrator

• Gas flow metering

• Block-valve automation

• Pump and compressor control

• Gas stations.

4、Model Numbers
SC-UCMX02 --Non-redundant Controller with 28 mixed onboard I/O with 256MB DRAM
SC-UCNN11 --Redundant Controller
SC-UMIX01 --Mixed I/O Module, 28 channels
SC-TEPR01 --Expansion End Plate, Right
SC-TEPL01--Expansion End Plate, Left
CC-PFB402--Series C Foundation Fieldbus Interface Module with 4 H1 Links (FIM4)
CC-TFB402--Series C FIM4 IOTA, Non-redundant, 4 Links, coated
SP-IHARTP --HART Protocol Enabler License
SP-MRUN01  --Meter Run License, one (1)
SP-IWIO01  --Wireless I/O License
SP-LEPIU1 --ELEPIU License per controller
SP-EBLDR1 --ControlEdge Builder, client license
SP-MCALC1 --Metering Calculation Library, site license

5、About us

Chengdu Shengzhijie Technology Co., Ltd. is a high-tech enterprise mainly engaged in the business of internationally renowned advanced process control and automation products. It is committed to the sales, engineering, testing, maintenance, technical training and service of industrial control products and control systems. The products involve the main products related to automation, such as: Distributed control system (DCS)/Programmable logic controller (PLC), Instrument Safety system (SIS), data acquisition system (SCADA), process controller, recorder, pressure and temperature transmitter (sensor), dangerous gas detection and alarm, gas flow measurement, combustion safety control, valve and actuator, detection and analysis instrument, signal adjustment Management module, is the United States Honeywell control products in western China's largest level agents and inventory center, the United States Honeywell DCS, PLC and SIS control system core engineering, at the same time distribution of the United States Acromag, the United States capital company, the United States lion fine instrument company and other world famous brand products.

We look forward to establishing long-term business relationship with you!
