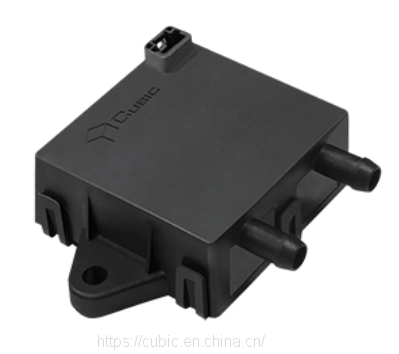

NDIR Automotive Li-battery Thermal Runaway Sensor PM CO2 CO HC H2

Introduction

ATRS-1020 sensors can effectively monitor CO2, CO/HC/H2 and particulate matters released before the thermal runaway trigger of lithium-ion batteries, as well as temperature and pressure, and transmit the measurement signal via CAN communication to battery management system (BMS), to formulate safer early warning strategies. Cubic has mastered a variety of gas sensing and detection technologies. In view of the performance requirements of sensors for thermal runaway monitoring, such as fast response time, accurate measurement, less cross interference, long service life and low power consumption, Cubic innovatively combines non-dispersive infrared (NDIR) spectroscopy and MEMS metal oxide semiconductor technology (MOX), an integrated sensor solution integrating a variety of core sensor technologies is introduced, which can effectively and accurately measure combustible gas.

Features

1.Non-dispersive infrared (NDIR) technology adopted for fast response and high accuracy CO2 concentration measurement

2.Laser scattering (LSD) technology adopted for high accuracy and large PM2.5 measurement range

3.Microelectronic Mechanical Systems adopted for fast response and high selectivity on CO/HC/H2 measurement

4.Integrated automotive sensor measures both CO2, CO/HC/H2, PM 2.5 and temperature

5.Key components are self-made to ensure quality and long life span

6.CAN real time communication and vehicle-level circuit design

7.Target measurement and range customizable

8.Effectively and accurately measurement for combustible gas

9.Comprehensive assessment for li-ion battery thermal runaway

10.Reliable early warning for EV battery leakage

Specifications

Operating principle: NDIR(dual channel non-dispersive Infrared) technology

MEMS (Microelectronic Mechanical Systems)

LSD(Laser scattering)

Measurement target: CO2,CO/HC/H2,PM2.5,Temperature

Measurement range: CO:0ppm~1000ppm(Display up to 3Kppm)

CO2:0ppm~10000ppm(Display up to 60Kppm)

PM2.5:0~5000ug/m3

Temperature: -40℃~120℃

Resolution: CO2/CO/HC/H2：1ppm

PM2.5：1ug/m3

Temperature：0.1℃

Accuracy: CO2: ±（50ppm+5%reading）

CO：±40ppm or ±30% max reading

PM2.5：≤100μg/m3: ±15μg/m3；＞100μg/m3: ±15% reading

Temperature：±2℃

Response time: T90≤15s

Working temperature: -40~+85℃,0-95%RH (non-condensing)

Storage temperature: -40~+95℃,0-95%RH (non-condensing)

Working pressure: 80kPa~120kPa

Power supply: 9~16 VDC, standard voltage 12 VDC

Working current: ≤100mA @12VDC

Low powe consumption mode: ≤50mA @12VDC

Standby current: ≤100μA

Communication: CAN

IP rating: IP54

Dimension: 91*84*34 (mm)
