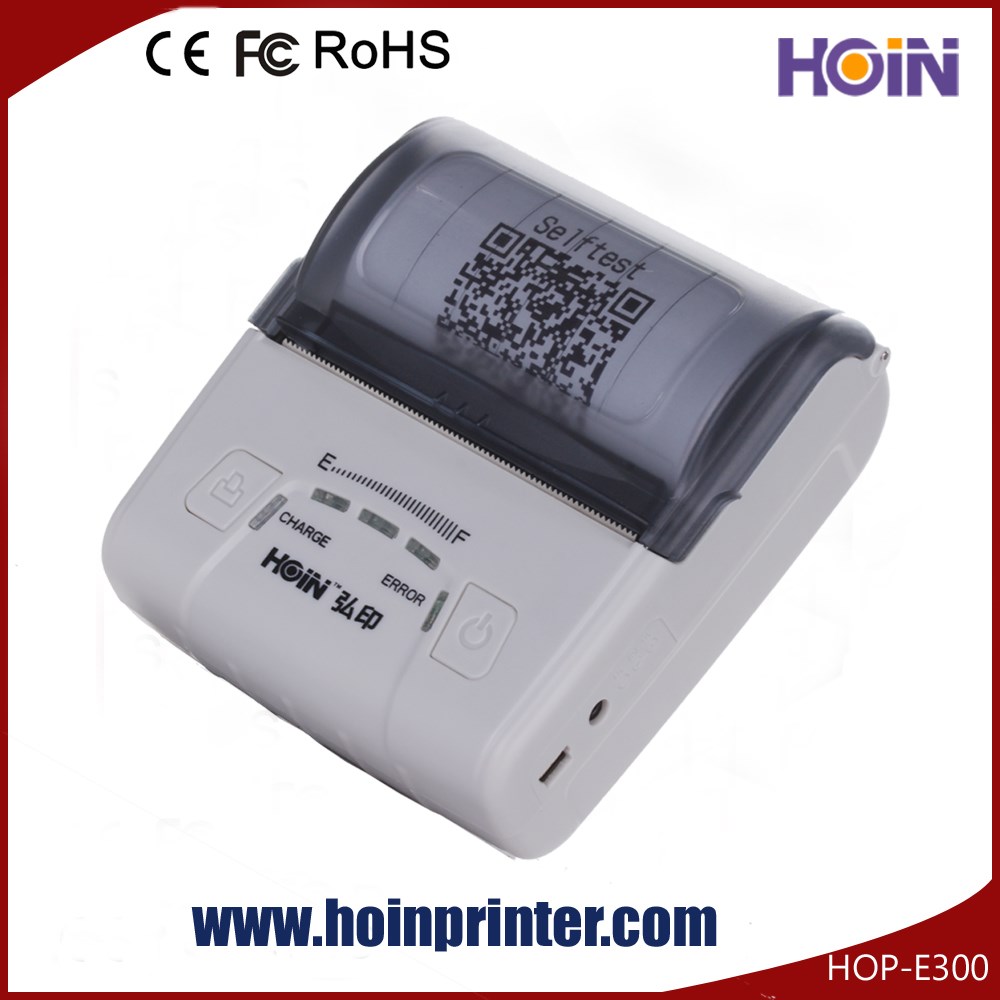

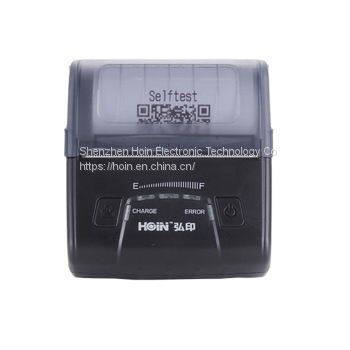

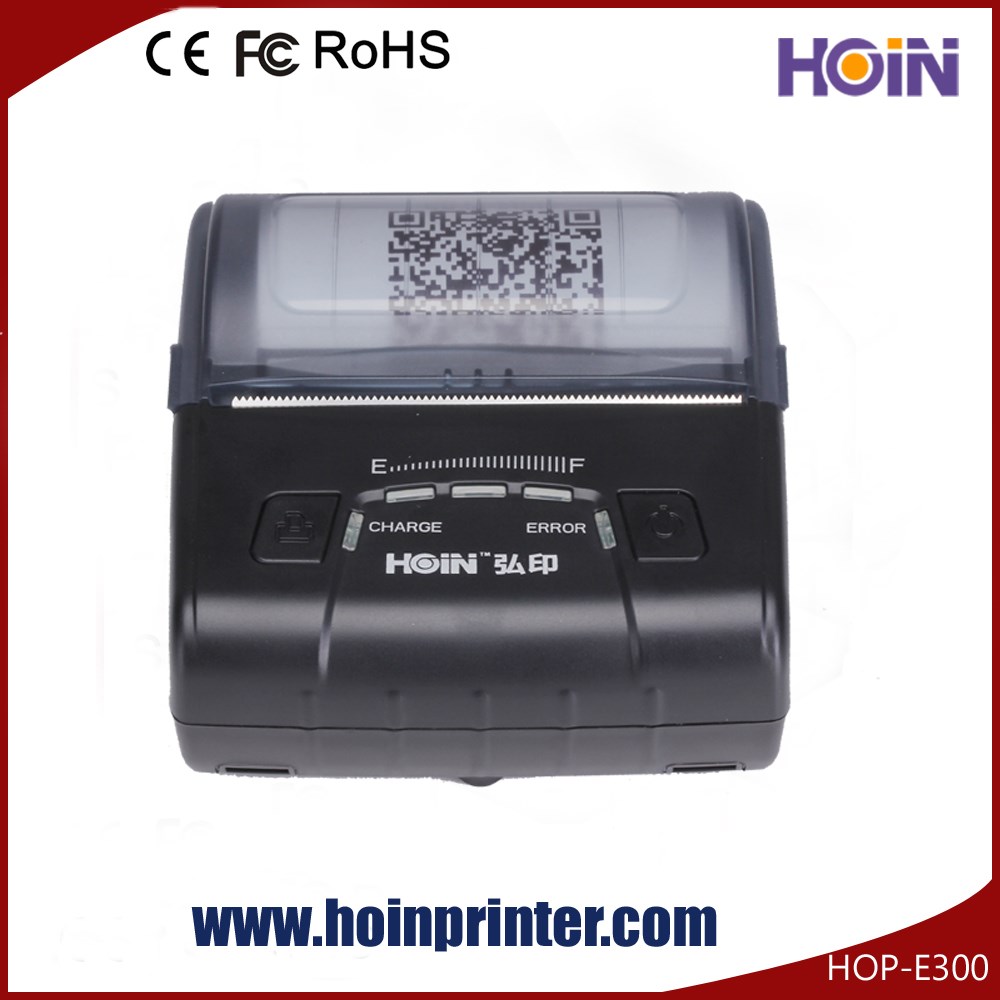

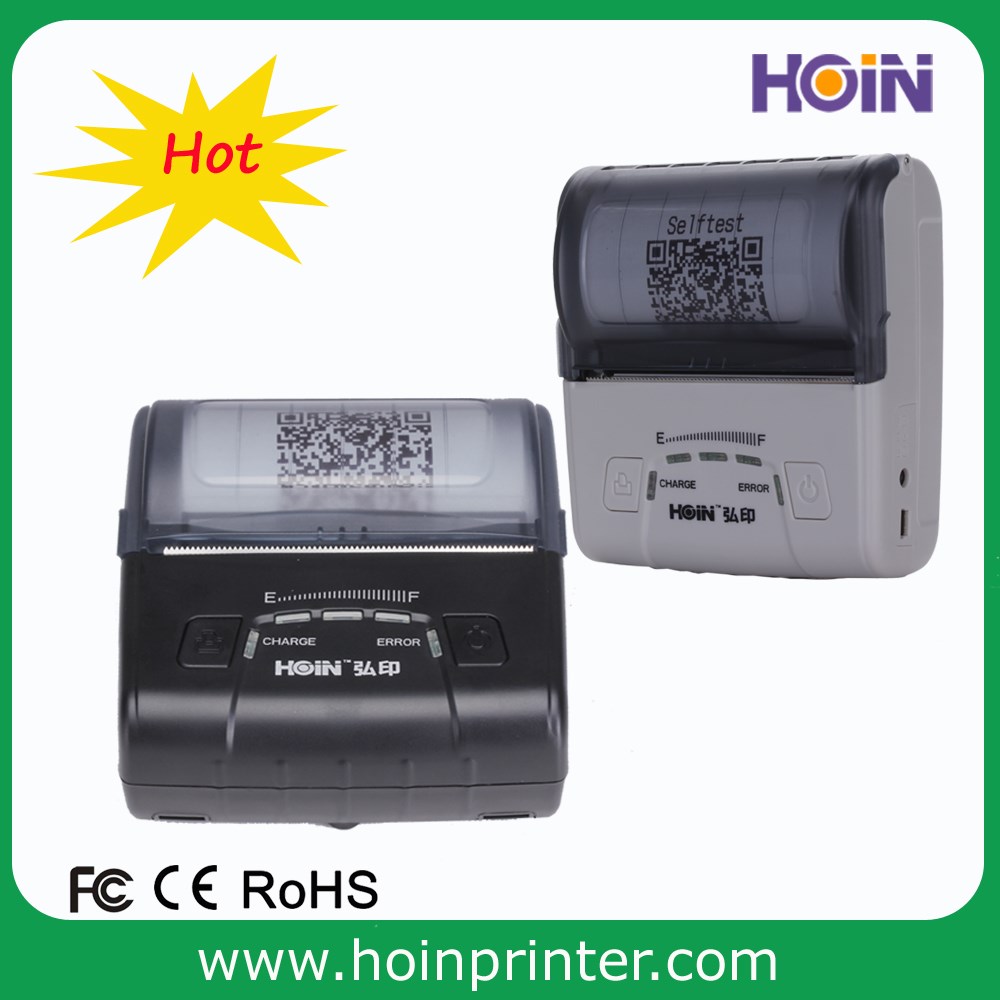

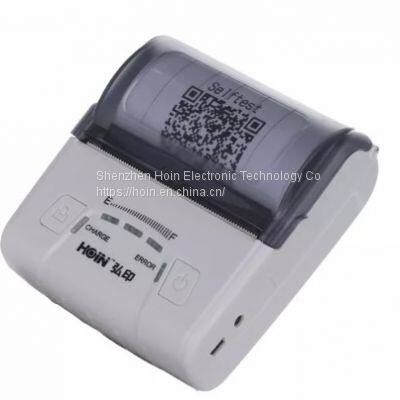

2 Inch 58mm BIS USB+RJ11 Cash Drawer Port Mini POS Thermal Receipt Printer With Demo SDK Software

Print parameter

Printing Method

Thermal Line

Effective Printing Width

 80mm

Resolution

384 dots/line(8dots/mm,203dpi)

Priting Speed

70mm/S

Interface

USB,Serial,Bluetooth

Line spacing

3.75mm(Can adjust line spacing by command)

Line No.

Font A:32character /Line

Font B:42 character/Line

Simplified/Tradtional character 16 Line

Character

The standard GB18030 simplified / traditional Chinese characters library

Character Size

ANK character,Font A:1.5×3.0mm(12×24 Dots)
Font B:1.1×2.1mm(9×17Dots) Simplified/Traditional:3.0×3.0mm(24×24 dots)

Bar code character

Extended character set

PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)

Bar code

1D.Bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
CODABAR/CODE93/CODE128

2D.Bar code:QRCODE

Graphics printing

Graphics printing

Supports bitmap download and print (support each bitmap size Max.8K, download up to 5pcs)

Power saving Mode

Smart power saving

Support

Variable speed printing

Support

Consumption

Support

Dormancy

Support

Dection

Sensor

Lack of paper detection

Indicator

Power Display

Support

Charge Indicator

Support

Lack of paper

Support

Beep

Lack of paper,printing abnormal alarm

Paper

Type

Thermal

Width

80±0.5mm

thickness

≤0.12mm

Diameter

≤40mm

Feed

Easy(Clameshell feed)

Instructions

Instruction

ESC/POS

Power

Type

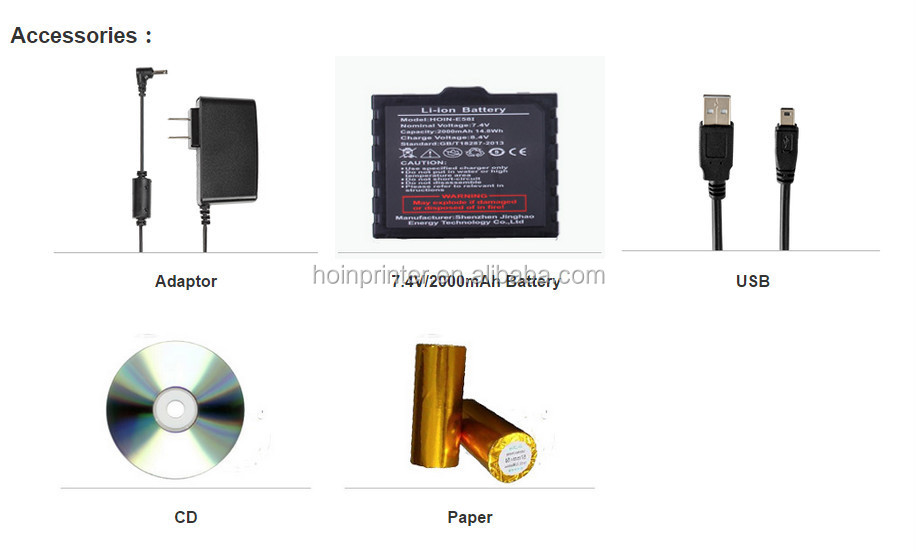

Rechargeable Lithium polymer battery

Capacity

2000mAh/7.4V

Charger

9.0V/2A

Buffer

Input

4KB

NV Flash

40KB

Physical features

Weight

 224g

Dimension

Environment

Operating

Temp:5 ~ 45℃, Humidity:10 ~ 80%

Storage

Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No Dew)

Reliability

Print head life

50KM(Printing Density≤12.5)

Software

Driver

Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1
