Home > Products > VCM/voice coil motor/ voice coil autuator > 18.2× 18.2× 10.3mm M12XP0.5 Voice Coil Motor Actuator VCM Vca

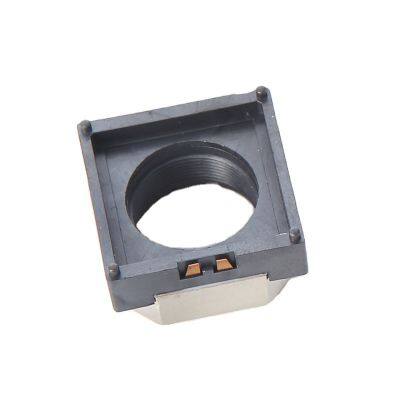

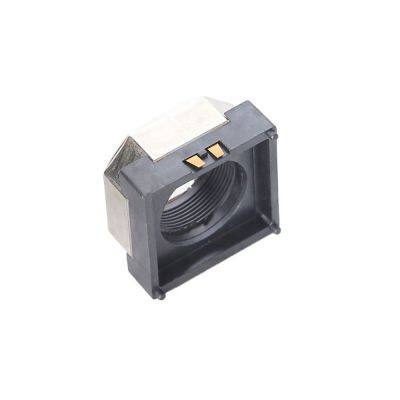

18.2× 18.2× 10.3mm M12XP0.5 Voice Coil Motor Actuator VCM Vca

FOB Price

US$ 8 - 12 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CCHT		Place of Origin	China
Model Number	04-006-001		Certification	ROHS, UL

Technical Parameter of Voice Coil Motor
Model No.	04-006-001	04-006-002	04-006-013	04-006-012
Dimension	18.2×18.2×10.3mm	22.2×18.2×10.3mm	22.2×22.2×14.6mm	22.2×22.2×14.6mm
Weight	5g	5g	13g	13g
Mount	M12xP0.5	M12xP0.5	M12xP0.5	M12xP0.5
Weight of lens	<5g	<5g	<8g	<8g
RFL	3~5mm	3~5mm	3~8mm	2~8mm
Displacement direction	Along Tilt	Along Tilt	Along Tilt	Along Tilt
Working ambient temperature range	-30oC~+60oC	-30oC~+60oC	-30oC~+60oC	-30oC~+60oC
Storage ambient temperature range	-40oC~+70oC	-40oC~+70oC	-40oC~+70oC	-40oC~+70oC
Rated current	<120mA	<120mA	<120mA	<120mA
Max. current	<120mA	<120mA	<120mA	<120mA
Coil resistance	32Ω±2(25oC)	32Ω±2(25oC)	32Ω	32Ω±5%(25oC)
Starting current	15~40mA	15~40mA	20~40mA	15~40mA
Displacement	>0.45mm	>0.45mm	>0.60mm	>0.70mm
Hysteresis accuracy	<0.015	<0.015	<0.01	<0.015
Linearity	<0.02mm	<0.02mm	<0.04mm	<0.03mm
Temperature rise	≤100oC	≤100oC	≤100oC	≤100oC
