Home > Products > HD motorized zoom lens > 3MP 12.5~750mm 60X F3.5 C Mount HD Motorized Zoom Lens

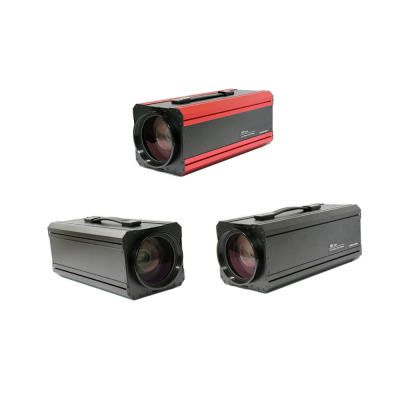

3MP 12.5~750mm 60X F3.5 C Mount HD Motorized Zoom Lens

FOB Price

US$ 3300 - 3500 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CCHT		Place of Origin	China
Model Number	02-010-003

Technical Parameter of HD Motorized Zoom Lens
Model No.: 02-010-003
No.	Item		Specification
1	Imager size		1/1.8"(9mm)
2	Pixel		3MP
3	Focal Length		12.5～750mm(60X)
4	Interface		C-Mount
5	FNO.(Max)		F3.5-F360C
6	FOV(16:9) (DxHxV)	1/1.8''	W：38.80°×33.82°×19.02° T：0.71°×0.62°×0.35°
		1/2''	W：34.70°×30.24°×17.01° T：0.63°×0.55°×0.31°
		1/3''	W：26.30°×22.92°×12.89° T：0.47°×0.41°×0.23°
7	Back Focus（in air）		29.17mm
8	Control Mode	Focus	Electrical/Motorized
		Zoom	Electrical/Motorized
		Iris	DC automatic
9	Distortion Rate	1/1.8''	W：-1.64%@y=4.5mm T：1.36%@y=4.5mm
		1/2''	W：-1.50%@y=4.0mm T：1.14%@y=4.0mm
		1/3''	W：-1.01%@y=3.0mm T：0.68%@y=3.0mm
10	Focus range		5m~∞
11	Filter size		M114×P0.75
12	Dimension(WxHxL)		144.0×139.8×361.2mm
13	Weight		5.79Kg
14	Working Temperature		-30～+60℃
15	Motor Version		Low Temperature Version（Planetary Gear Reducer）
