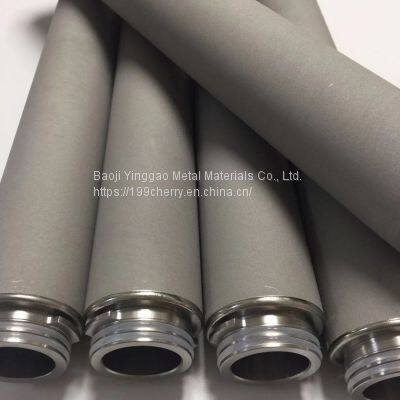

Porous sintered titanium?filter

The porous sintered titanium filter is made of high-quality 0A grade high purity sponge titanium as raw material by pressing and high-temperature vacuum sintering.

Compared with the traditional filtration materials such as paper, cotton, PP, PE, PES, PTFE, etc., the metal powder sintered porous materials have good permeability, pore size and pore control, stable shape, high filtration accuracy, wear resistance, good mechanical properties, good heat conduction, heat resistance and heat dissipation, and can be repeatedly washed and used for many times.

Parameters

Material: Pure titanium

Size: OD20-80*WT2.5-3.0*L10-1200mm

Filter accuracy: 0.22-100μm

Porosity:20-40%

Penetrability: 3-800m3/㎡hkpa

Compression strength: 2-3Mpa

Temperature toleration: 250℃

Max working pressure: 0.6Mpa

Connection: Customized according to customer requirements

Features

1. Offers high corrosion resistance

2. Cleanable/Back washable

3. Allows for re-use

4. Maximum economy

5. High-Temperature Sintering

6. No media migration

7. Various gasket/O-Ring materials and configurations

8. Easily retrofits most systems

Application

It can be widely used in the electronic industry,water treatment industry, food industry, biotechnology, chemical industry, petrochemical industry, metallurgical industry and gas purification,is a new filter with broad development prospects.

1) Sparging

2) Separation and filtration

3) Carbonisation

4) Liquid filtration

5) Catalyst recovery

6) Steam filtration

7) Slurry oil filtration

8) Flame arrestors

9) Silencing

10) Fluid distribution and control

11) Semiconductor industry

12) Fuel cell stack

13) Coating electrode

14) Damping

15) Heat exchange

16) Bio-implants
