W12-6x3500 High quality 3 roller small plate rolling machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
J23 16 ton steel sheet mechanical punch machine power press price
-
Popular punching machines J23-35 35 ton steel punching machine for metalwork
-
J23-40 ton ton C frame power press punching machine for metal work
-
J23-63 63 ton metal punching machine
-
High Precision J23-100 100 Pneumatic / Hydraulic Metal Press Machine
-
JH21-25 ton C frame fixed bolster power press machine
Product Description
Product Description
Introduce:

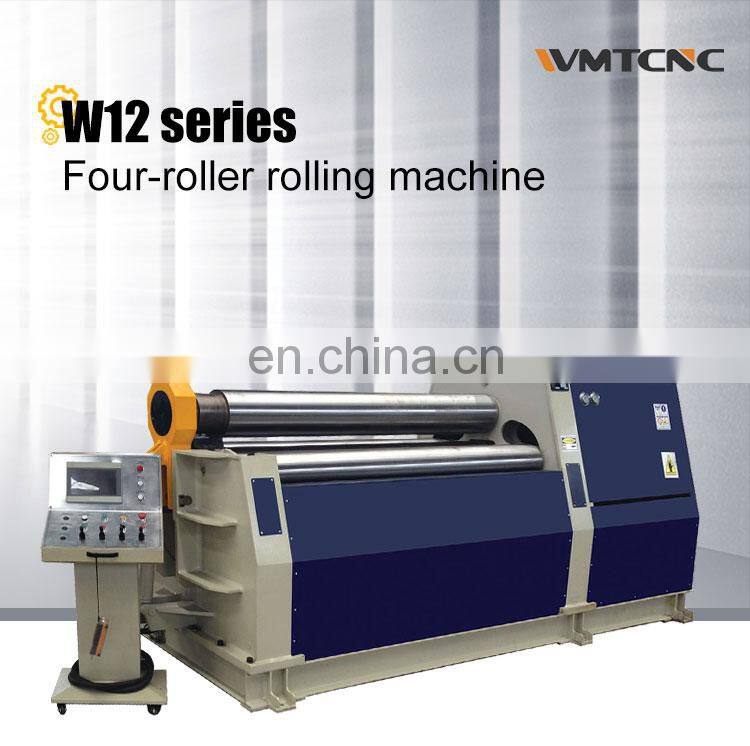

The machine adopts the four-roller structure with the upper roller as the main drive,Both upward and downward movement through hydraulic motors powered.The lower roller makes vertial movements and imposes a force on the piston through the hydraulic oli in the hydraulic cylinder so as to clamp the plate tight.Side rollers are arranged on the two sides of the lides of the lower roller,and make inclining movement along the guide rail,and provide drive through the screw,the nut,the worm and the leadscrew.The advantage of the machine is that the preliminary bending and rolling of the top ends of the plates can be conducted on the same machine.
Max. rolling thickness when full loaded | Common Mild Steel | ≤8MM | |||
S355/AISI304 | ≤5MM | ||||
Max. pre-bending thickness when full loaded | Common Mild Steel | ≤6MM | |||
S355/AISI304 | ≤3MM | ||||
Max. rolling width(Cylinder Length) | 3000MM | ||||
Min. roll diameter when max. specification | 500MM | ||||
yield limit S245 | 245 MPA | ||||
yield limit S355/AISI304 | 345Mpa | ||||
Upper roller diameter | 280MM | ||||
lower roller diameter | 280MM | ||||
lower roller speed | 80MM/MIN | ||||
Side roller diameter | 220MM | ||||
Side roller speed | 80MM/MIN | ||||
Working roller | Material | 42CRMO | |||
Hardness | HB240-286 | ||||
Hydraulic system pressure | 20MPA | ||||
Rolling speed | 4.5M/MIN | ||||
Main motor power | 7.5 KW | ||||
Cone accessory | NO standard | ||||
