Automobile seat gearbox assembly machine Motor production equipment

FOB Price

USD $31900 - $33600 / Unit

1 Unit(Min.Order)

Supply Ability 2 Unit / Units per Month
Port port of Shenzhen
Payment TermsCash

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Keyuxin		Place of Origin	China
Model Number	022

Product Description

Shenzhen Keyuxin Automatic Machine Co., Ltd
TEL：18665307510
email: 570397983@qq.com

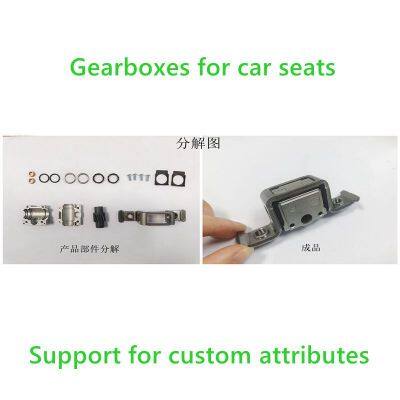

Gearboxes for car seats
Location process	Special gear box equipment for car seat
Rated input voltage	AC220V /50HZ；
Air pressure	The working pressure is 0.5~0.7MP;
Air source interface dimensions	φ12 quick connector;
Equipment inlet and outlet dimensions	The length of the rotor pipeline is 2000MM from point 0 on the side of the chassis, and the height of the rotor pipeline is 670MM from point 0 on the belt surface to the bottom of the chassis without a cup
	The feeding line of the housing is 200MM long from point 0 on the side of the chassis, and 780MM high from point 0 on the belt surface to the bottom of the chassis without a cup
	The feed height of the rear cover is 700MM from 0 point at the bottom of the chassis
Overall size and color	1750 x 1200 x 1800 (MM) The actual device size varies
	The overall structure is compact, paint parts color Wanbao to green;
	The frame part adopts aluminum profile structure specification (40 x 40) mm, transparent acrylic;
The production efficiency	The capacity of the equipment is 1000-1200 per hour1200/H
interface	Man-machine operation interface, with the necessary protection function;
Unparallel ease of use	After loading the material, 1 manual guard, lack of material alarm function;
security	Must ensure safe operation and good grounding.
Ease of maintenance	UC-MAUC；
Basic Device Configuration	Bearing manufacturer Jingyi bearing
	Optical fiber, sensor manufacturers Omron
	Controller (PLC) manufacturer Xinjie
	Operating panel (touch screen) manufacturer Xinjie
	Motor manufacturer Oneng
	Pneumatic components manufacturer AirTAC;
	Buffer manufacturer AirTAC
Drawing list of wearing parts	Come with it;
Support for custom attributes.
