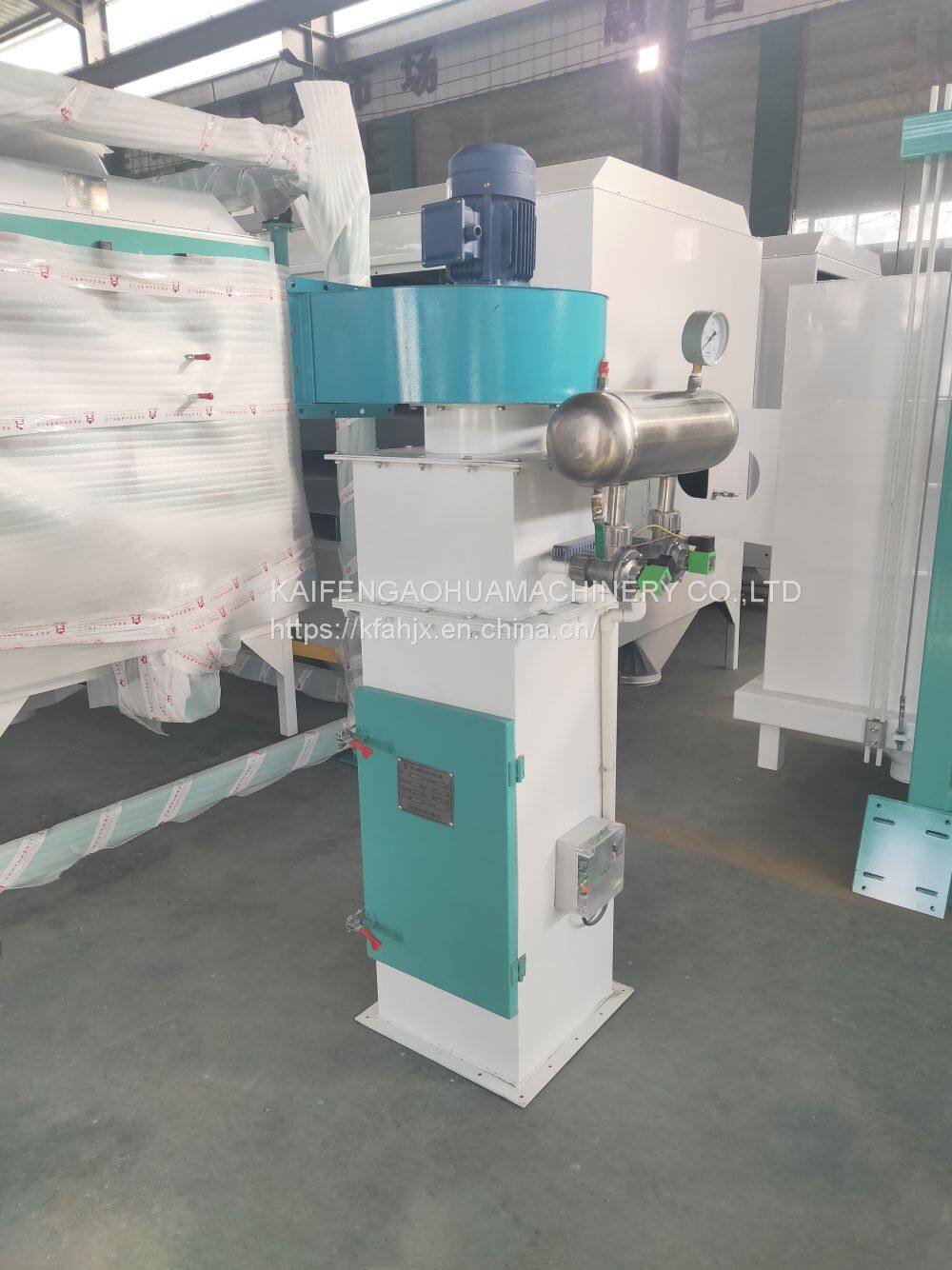

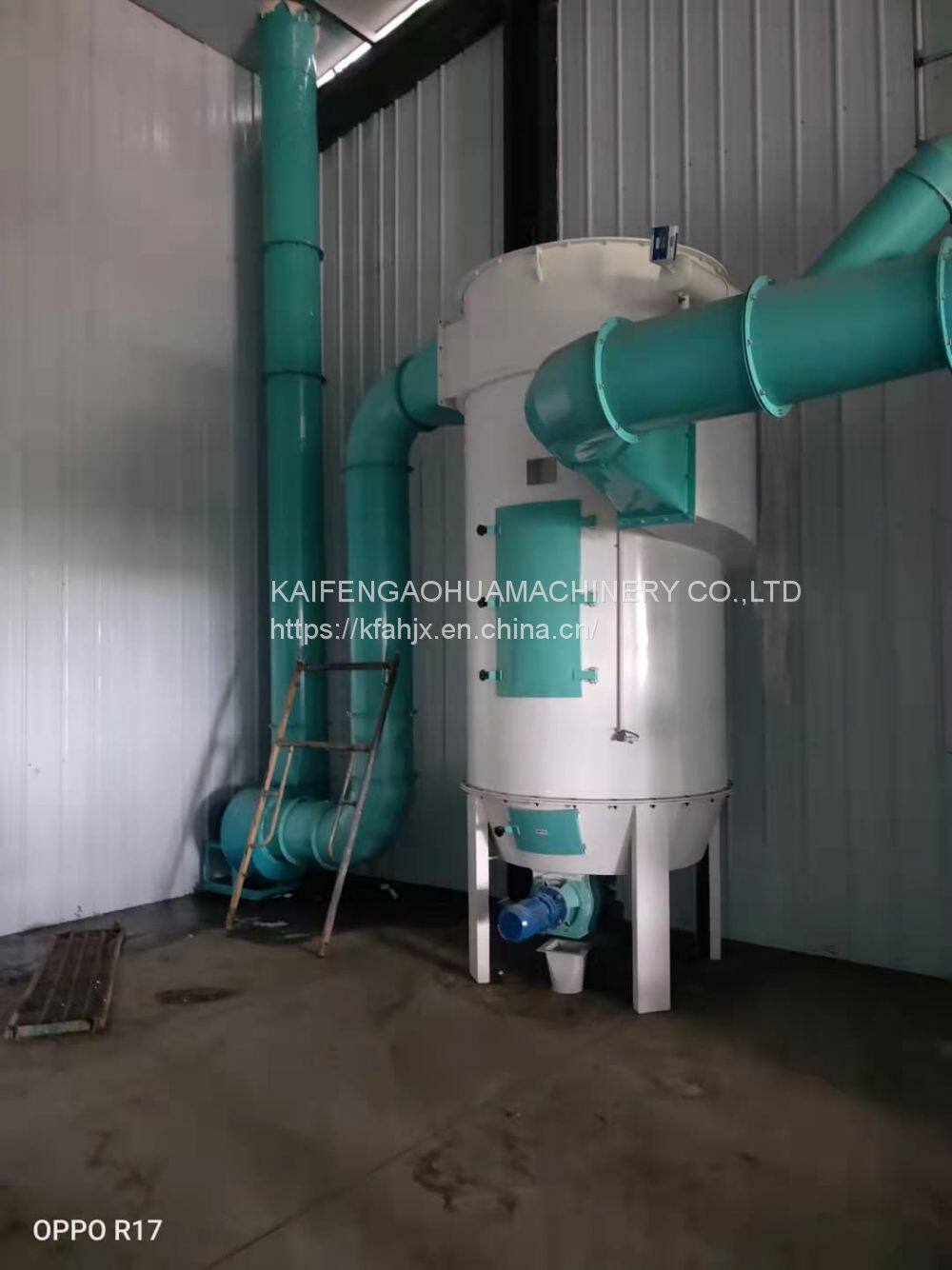

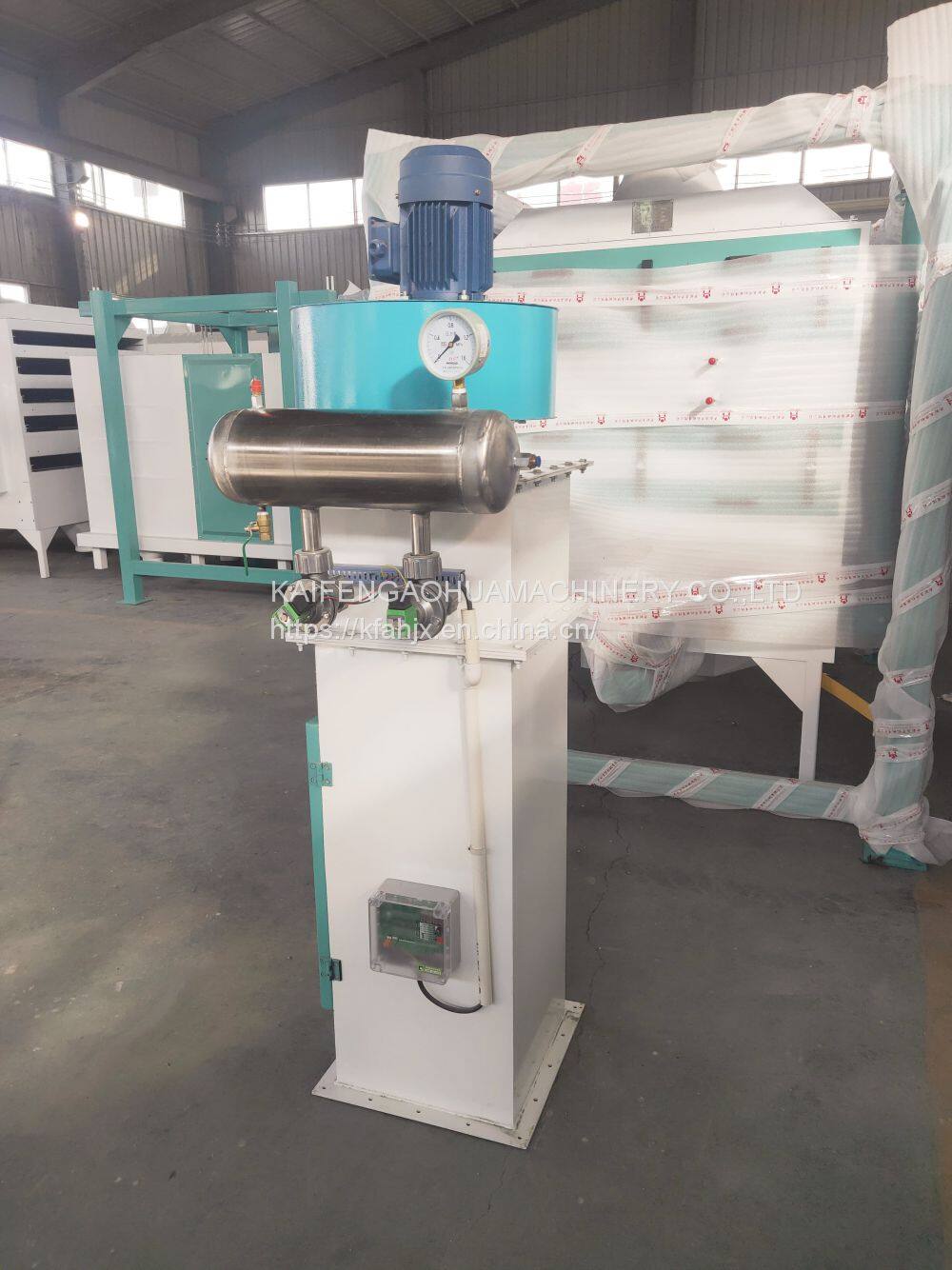

Pulse Dust Collector

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product introduction: TBLM series low pressure pulse bag filter is a new type of high efficiency dust collector. The round box is convenient for the placement of the equipment, tangential centrifugal feeding can make the dust fall in advance, all solenoid valves are controlled by the computer, and the ash discharge scraper and the air shutoff are driven by belts, which is conducive to the stable use of the equipment. , maintenance is convenient, the use of low pressure air source to blow the filter bag, has the advantages of atmospheric pressure, high efficiency, and can reduce the wear of the filter bag, it is an ideal equipment for environmental protection.

Product features: Dust collectors with various structures and forms are available for users to choose from. The air bag structure design is improved, and the pressure resistance is stronger without air leakage. An independent air inlet box can be added and a cone dust form can be added to effectively improve the cleaning effect.

Specifications	Filter bag length mm	Handling air volume m3	Filter area m2	Closer motor power KW	Scraper motor power KW	Low pressure pump model	Weight k g A	Weight kg B	Weight kg C
TBLM-26	1800	1032-5160	17.2	0.75		ZYMB40	710	573	672
	2000	1146-5730	19.1	0.75		ZYMB40	749	663	705
	2400	1380-6900	23	0.75		ZYMB40	794	620	130

TBLM-39	1800	1542-7710	25.7	0.75	1.5	ZYMB40	1030	823	781
	2000	1722-8610	28.7	0.75	1.5	ZYMB40	1080	860	1025
	2400	2076-10380	34.6	0.75	1.5	ZYMB40	1120	915	1072

TBLM-52	1800	2112-10560	35.2	0.75	1.5	ZYMB40	1230	998	1169
	2000	2292-11460	38.2	0.75	1.5	ZYMB40	1500	1030	1218
	2400	2766-10380	46.1	0.75	1.5	ZYMB40	1700	1124	1286

TBLM-78	1800	3090-15450	51.5	0.75	1.5	ZYMB60	1720	1387	1634
	2000	3538-17190	57.3	0.75	1.5	ZYMB60	1800	1453	1721
	2400	4146-20730	69.1	0.75	1.5	ZYMB60	2000	1552	1798

TBLM-104	1800	4416-20580	68.6	0.75	1.5	ZYMB80	2200	1640	2000
	2000	4590-22950	76.5	0.75	1.5	ZYMB80	2500	1910	2320
	2400	5526-27630	92.1	0.75	1.5	ZYMB80	3000	2220	2650
