PVC pipe making machine
USD $35000 - $55000
/ Set
1 Set(Min.Order)
- 30 Set / Sets per Month
- QINGDAO
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 45 days
You May Like
-
PVC WPC Crust Foam Board production line
-
PP HDPE Plastic pipe make making extruder machine
-
PP PE ABS sheet/board production extrusion line
-
China Factory Price Plastic PP PE Pet PBT Monofilament Filament Round Flat Yarn Wire Extruding Extruder Extrusion Production Line
-
PP PET strap band production line
-
PVC WPC Window door profile production line
Product Details
| Brand Name | Trusty | Place of Origin | China | |
| Model Number | SJSZ65/132 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Weight | custom-made | Dimension(L*W*H) | custom-made | |
| Voltage | 220V | Application | Pipe | |
| Condition | New | Power(W) | 37kw | |
| Automatic Grade | full Automatic | Plastic Processed | PVC | |
| Screw Design | Double-screw |
Product Description
PE/HDPE PIPE MAKING MACHINE
PP/PPR/PERT PIPE PRODUCTION LINE
PVC SINGLE DOUBLE FOUR PIPE EXTRUSION LINE1.PVC pipe extrusion line
Machine List
| No. | Equipment list for PVC pipe manufacturing plant | Quantity |
| 1 | Mixing machine | 1 set |
| 2 | Auto feeder | 1set |
| 3 | Conical double screw extruder | 1 set |
| 4 | Die head and sizing mold | customized |
| 5 | 1st cooling tank | 1 set |
| 6 | 2nd cooling tank | 1 set |
| 7 | haul off device | 1 set |
| 8 | auto cutting machine | 1 set |
| 9 | Laser printer or ink jet printer | 1 set |
| 10 | PVC pipe stacker | 1 set |
| 11 | Crushing machine | 1 set |
| 12 | PVC powder milling machine | 1 set |
| 13 | Air compressor | 1 set |
| 14 | water chiller | 1 set |
Technical Parameter
| Diameter range(mm) | Extruder Model | Main motor power KW | Max. Capacity(KG/H) | Max. Haul off speed(m/min.) |
| 16-40 Dual | SJSZ-51/105 | 18.5 AC | 150 | 10 |
| 20-63 Dual | SJSZ-65/132 | 37 AC | 250 | 15 |
| 20-63 | SJSZ-51/105 | 18.5 AC | 120 | 15 |
| 50-160 | SJSZ-65/132 | 37 AC | 250 | 8 |
| 63-200 | SJSZ-65/132 | 37 AC | 250 | 3.5 |
| 110-315 | SJSZ-80/156 | 55 AC | 450 | 3 |
| 315-630 | SJSZ-92/188 | 110 AC | 800 | 1.2 |

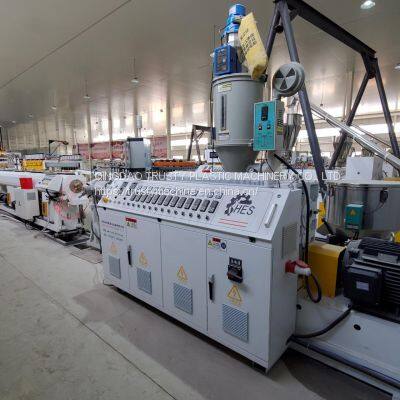

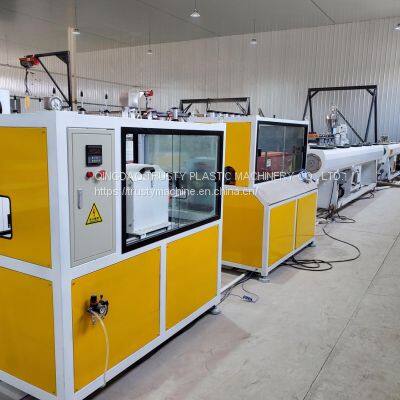

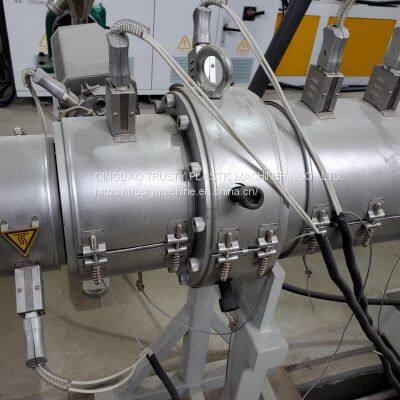

Machine Photos
2.PE pipe extrusion line
Machine List
| No. | Item | Qty |
| 1 | Automatic Feeder and Drier | 1 |
| 2 | Single Screw Extruder | 1 |
| 3 | Color Line Co-Extruder | 1 |
| 4 | Mould | 1 |
| 4.1 | Die Core | |
| 4.2 | Die Lips | |
| 5 | Vacuum Calibration tank | 1 |
| 5.1 | Copper Calibration Sleeve | |
| 6 | Spray Water tank | 1 |
| 7 | Three cater pillar Haul-off unit | 1 |
| 8 | No dust Cutting machine | 1 |
| 9 | Pipe stacker | 1 |
| 10 | Laser printer | 1 |
Technical Parameter
| Model | Extruder | Pipe diameter(mm) | Motor Power(kw) | Output(kg/h) | Length to diameter ratio(L/D) |
| SJ-63 | SJ65 | 20-63 | 37 | 80-150 | 33:1 |
| SJ-110 | SJ65 | 20-110 | 55 | 100-200 | 33:1 |
| SJ-160 | SJ75 | 50-160 | 75 | 150-250 | 33:1 |
| SJ-250 | SJ60 | 50-250 | 90 | 400-500 | 38:1 |
| SJ-315 | SJ90 | 110-315 | 160 | 280-400 | 33:1 |
| SJ-450 | SJ75 | 200-450 | 160 | 600-800 | 38:1 |
| SJ-630 | SJ90 | 315-630 | 250 | 800-1000 | 38:1 |
| SJ-800 | SJ150 | 450-800 | 360 | 600-1300 | 33:1 |
| SJ-1000 | SJ150 | 630-1000 | 380 | 800-1500 | 33:1 |
| SJ-1200 | SJ120/SJ90 | 800-1200 | 450 | 900-1800 | 33:1 |
Machine Photos
FAQ
1.Are you a factory or a trading company?
Factory
2.Can I get free samples?
Send free samples. But you need to pay the cost of Express which can be reduced in the order of machine in the future.
3.How do I get response quickly?
If you send email, whatsApp, WeChat to contact us, we promise to reply to you within 8 hours! WhatsApp is the best and 24 hours online:)
