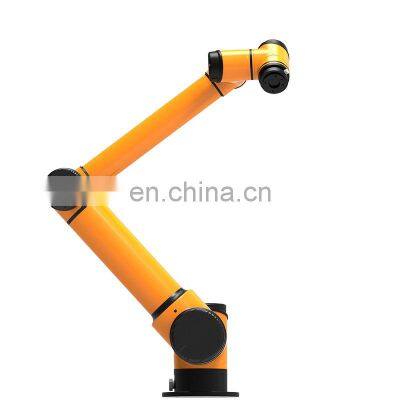

Hotsale AUBO I16 aubo cobot 6 axis collaborative robot cobot for 16kg payload 967.5mm arm reach
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
aubo cobot china AUBO C5 collaborative robot payload 5kg and 886.5 mm reach
-
Hotsale AUBO-I16 6 axis collaborative robot cobot for 16kg payload 967.5mm arm reach
-
AUBO C3 small cobot china robot arm reach 625mm and 3kg playload cheap cost cobot
-
2022 aubo cobot AUBO C5 886.5 mm arm reach and max payload 5kg cobot 6 axis collaborative robot
-
Hotsale AUBO I3 6 axis collaborative robot cobot for 3kg payload 625mm arm reach
-
Cobot China AUBO-I10 cobot 6axis arm for 10kg payload 1350mm arm reach cobot welder
Product Description
Products Description
AUBO-I16 TECHNICAL SPECIFICATIONAS | ||
Dedrees of freedom | 6 | |
Reach | 967.5 mm | |
Payload | 16 Kg | |
Weight | 38 Kg | |
Lifetime | 30000 h | |
Collaboration | Collaboratiove operation acoording to ISO 10218-1:2001 | |
Repeatability | ±0.03 mm | |
Linear velocity | ≤3.0 | |
Power consumption | 600W(Under normal working conditions) | |
Materials | Aluminum,Steel,Plastic | |
Ambient humidity | 25%-90% | |
Ambient temperature | 0-50℃ | |
IP Classification | IP 54 | |
Programming | Teach pendant with user interface | |
Communication | CAN bus | |
Motor Type | DC 48V | |
Installation orientation | Any celling,Floor,Wall | |
Axis Movement | Working Range | Maximum Speed |
J1 Axis Base | ±175° | 180°/s |
J2 Axis Shoulder | ±175° | 180°/s |
J3 Axis Elbow | ±175° | 180°/s |
J4 Axis Wrist | ±175° | 180°/s |
J5 Axis Wrist | ±175° | 180°/s |
J6 Axis Wrist | ±175°/±360° | 180°/s |
I/O Port On Wrist | I/O Port On Wrist | |||||||||
Voltage | Current | Digital In | Digital Out | Analog In | Analog Out | |||||
0V/12V/24V | 0.8A | 4 | 4 | 2 | 0 | |||||
Control Box | ||
Dimensions | 380 *350 *256 mm | |
Weight | 38 Kg | |
Cabling | 5 m | |
Color | Black | |
Communication | Eternet、Modbus-RTU/TCP | |
Interface | SDK(Support CC++LuaPython) | |
Power Supply | 100-240VAC, 50-60Hz | |
IP Classification | IP43 | |
I/O Ports | General I/O | Safety I/O | |
Digital In | 16 | 16 | |
Digital Out | 16 | 16 | |
Analog In | 4 | - | |
Analog Out | 4 | - | |
Power Input | 24V | ||
Power Output | 3A | ||
Teach Pendant | ||
Domensions | 355*235*54 mm | |
Weight | 1.57 Kg | |
Display Screen | 30cm Touch LCD Screen | |
Cabling | 4m | |
IP Classification | IP43 | |
Color | Orange and Black | |
Product packaging
Similar Products
AUBO-I3
AUBO-I5
AUBO-I10
Application
Contact Us
AE Robotics Co., Ltd
Email : info@automationar.com
Sales Manger : Eric
P&W：+86 135 1097 8730
P&W：+86 135 1097 8730
Tele：0755-82598262
Company Profile
AE Robotics Co., Ltd
We are an one-stop robot provider in China.Providing high cost effective robot and cobot.we are distributor of ABB,KUKA,KAWASAKI EPSON etc. and sell robot whole world. we provide customer one stop serivce, help customer customzied robotics tools.
Trust is first, Providing the best Pre-sale service and after-sale service is very important for customer. Hope we can make win-win and long-term business.
FAQ
Q1：How long time delivery time
A1：7~10workding days
Q2: What brand of gearbox
A1： J1~J3 is Japan nabtesco RV reducer, J4~J6 is Leaderdrive Harmonic reducer
Q3: How to program
A3: Teaching pendant english interface,
Q4:How many Digital interface
A4: User Digtial input and output 16/16
Q5：What is warranty
A5: 12month
Q2: What brand of gearbox
A1： J1~J3 is Japan nabtesco RV reducer, J4~J6 is Leaderdrive Harmonic reducer
Q3: How to program
A3: Teaching pendant english interface,
Q4:How many Digital interface
A4: User Digtial input and output 16/16
Q5：What is warranty
A5: 12month
