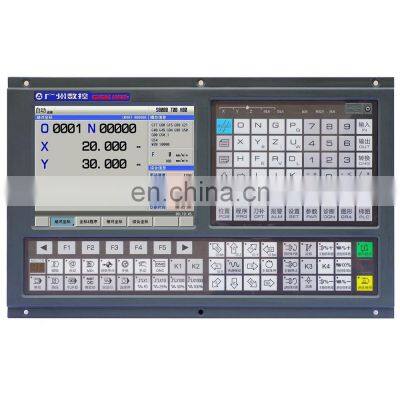

GSK 980MDC-Wodrut NEW 5 Axis Woodworking slot milling machine Numerical control system
Negotiable
1 (Min.Order)
- T/T Credit Card
You May Like
-
GSK 920D-E NEW 5 Axis cnc machine controller Woodworking CNC system
-
GSK 218MC CNC system of milling machine machining center Guangzhou CNC
-
GSK 920D-E NEW Factory original Woodworking CNC system 5 Axis cnc machine controller
-
GSK 920D-E NEW 5 Axis CNC controller Woodworking CNC system
-
Woodworking CNC system Factory original GSK 920D-E NEW CNC controller 5 Axis cnc machine controller
-
GSK 920D-E 5 Axis cnc machine controller Woodworking CNC system Popular original CNC controller
Product Description
Product Description
GSK 980MDC-Wodrut Woodworking slot milling machine Numerical control system
(Be careful：For detailed specifications, models and inquiries, contact customer service for negotiation)
Product features
● minimum control accuracy 1 μm. Maximum moving speed 60m/min
● graphical form filling programming, easy to learn and operate
● multiple slot types can be selected, and irregular slots can be processed according to user requirements
● it can realize isometric processing of grooves with the same size and depth, and simplify programming
● different depth treatment of the same groove can be set
● be able to delete and insert the sequence of slots
● it has the function of graphic preview of which slots are included in the program
● graphic track preview function, which can preview the tenon model in advance
● support machining path simulation
Specification
project | Specifications | ||
Proprietary software version | V 3.01PM | ||
essential information | Coordinate plane selection | ||
Position command range: ± 9999999 × Minimum input unit | |||
Absolute / incremental programming, English / metric conversion, linear axis / rotary axis | |||
Preparation function | Fast positioning, line / arc interpolation, metric and imperial system input, sentence macro instruction, macro program call,jump, cycle instruction, etc | ||
Feed function | Fast movement speed: μ Class (is-b) 0 mm/min ~60000 mm/min | ||
Fast magnification: F0, 25%, 50% and 100% four levels of real-time adjustment | |||
Cutting feed rate: μ Class (is-b) 0 mm/min ~30000 mm/min | |||
Feed rate: 0 ~ 150%, 16 levels of real-time adjustment | |||
Fast moving acceleration and deceleration: linear type; Cutting feed acceleration and deceleration: exponential type and linear type; The start speed, end speed and acceleration / deceleration time of acceleration / deceleration are set by parameters | |||
Graphic fill in processing | Various types of tenons are available for users to choose from | ||
After filling in the blank, the mortise can be processed | |||
Spindle function | Spindle speed: it can be given by s code or PLC signal, and the speed range is 0RPM ~ 999rpm | ||
Spindle magnification: 50% ~ 120%, a total of 8 levels of real-time adjustment | |||
2 channels of 0V ~ 10V analog voltage output | |||
One channel of spindle encoder feedback, and the number of spindle encoder lines can be set (0 or 100p/r ~ 5000p/r) | |||
Accessibility | Special m codes (M00, M01, M02, M30, M98, M99), and other m codes are defined by PLC | ||
PLC functions | Two level PLC program, 5000 steps at most, and the refresh cycle of the first level program is 8ms | ||
13 basic commands and 31 functional commands | |||
PLC program online display and real-time monitoring; Support PLC warning and PLC alarm | |||
Multiple PLC programs can be stored, and the currently running PLC program is selected by parameters | |||
Basic i/o:41 input /36 output | |||
Expandable serial i/o unit (optional): ioa-01t: 24 point input, 16 point output, 4-channel analog voltage output | |||
IOA-02T：40point input, 24 point output, 8-Channel analog voltage output, 4-channel analog voltage input | |||
Program storage and editing | Program capacity: 40m, 10000 programs (including subroutines and macro programs) | ||
MDI allows you to input and run 8 program segments | |||
Support macro program / subroutine calling, and allow 4-fold subroutine nesting | |||
Program check function | Graphic simulation, idle operation, machine tool lock, auxiliary function lock, single section operation | ||
interface | 8.4 "true color LCD, 7 soft function keys | ||
Support display in Chinese, English and other languages | |||
Display of machining path, real-time enlargement, reduction, translation and angle switching of machining path | |||
Position, program, tool compensation, alarm, parameter, setting, graph, diagnosis, ladder diagram | |||
Operation management | Operation mode: edit, automatic, input, mechanical zero return, manual pulse / single step, manual, DNC | ||
Level 6 operation authority management, program switch and parameter switch | |||
32 time limited shutdown | |||
Communication function | USB: USB disk file operation, support PLC program and system software USB disk upgrade | ||
RS232: bidirectional transmission of part programs, parameters and other files, supporting PLC program update | |||
Safety function | Emergency stop, hardware travel limit, software travel check, data backup and recovery | ||
Electrical interface | 5 control axes (including axis C), 2 analog voltage outputs, 1 encoder feedback input, 1 electronic handwheel input (supporting handheld electronic handwheel), 1 RS232, 1 usb-h, 41 input /36 output | ||
Overall dimension | GSK980MDc（width × high × Deep） | 420×260×150㎜ | |
