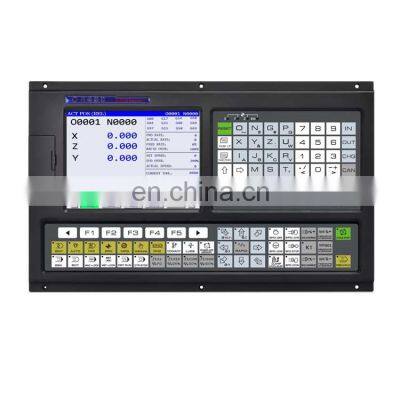

3-axis controller panel similar to GSK CNC controller control system kit with plc+atc for milling machine

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

The CNC system of the milling machine machining center is a popular CNC system independently developed by the company, which is suitable for milling machines, drilling and milling machines, grinders, etc. The system adopts 32-bit high-performance CPU and super large-scale programmable device FPGA. Real-time control and hardware interpolation technology ensure the system μ High efficiency under M-level precision, editable PLC makes the logic control function more flexible and powerful. The system can control 5 feed Axis, 2 analog spindles, 1ms high-speed interpolation, 0.1 μ M control precision, significantly improve the efficiency, precision and surface quality of parts processing.

Product features

● X, Y, Z three axis control, shaft type can be customized
● 1ms interpolation cycle, 0.1um control accuracy
● Two 0V ~ 10V analog voltage output, support double spindle control
● Linear, exponential and S-type acceleration and deceleration mode can be selected
● Built-in multi-PLC program, the current running PLC program can be selected
● PLC program online display, real-time monitoring, real-time signal tracking
● Support statement macro code programming, support macro program call with parameters
● Rigid tapping and flexible tapping can be set by parameters
● With rotation, zooming, polar coordinates, fixed cycle and a variety of milling groove compound cycle function
● With historical alarm and operation resume function, convenient user operation and maintenance management
● 8-inch color display screen, resolution 800×480, Chinese and English interface can be selected by parameter.
● Provides multi-level password protection for convenient device management
● 36-point universal input / 36-point universal output
● Support standard RS232 and USB interface, support U disk file operation, system configuration and software upgrade, can achieve
file transfer, serial DNC processing and USB online processing functions

Specification parameters

Number of control shaft	Number of control axes: 3 axes (X，Y，Z)
Number of control shaft		Number of linkage axes: 3 axes
Feed shaft function	Position instruction range: metric input (G21) : -9999.9999mm ~ 9999.9999mm, minimum instruction unit: 0.0001
		Position command range: Inch input (G20) : -999.9999inch to 999.9999inch. Minimum command unit: 0.0001inch
		Electronic gear: instruction frequency doubling coefficient 1 ~ 65536, instruction frequency division coefficient 1 ~ 65536
		Fast moving speed: maximum 60m/min
		Rapid rate: F0, 25%, 50%, 100% four levels of real-time adjustment
		Manual feed rate: 0 ~ 150%, 16 levels of real-time adjustment
		Feed rate: 0 ~ 150%, a total of 16 real-time adjustment
		Hand wheel feeding: 0.001mm, 0.01mm, 0.1mm, 1mm four gears
		Single step feeding: 0.001mm, 0.01mm, 0.1mm, 1mm four gears
		Interpolation methods: linear interpolation, circular interpolation, spiral interpolation and rigid tapping
		Automatic chamfering function
Acceleration and deceleration function	The system has a forward-looking function, up to 15 NC programs can be preread, so that small line interpolation high-speed smooth, suitable for parts processing mold processing
		Cutting feed: front acceleration and deceleration linear, front acceleration and deceleration S type, rear acceleration and deceleration linear, rear acceleration and deceleration exponential type
		Fast moving: front acceleration and deceleration linear, front acceleration and deceleration S, rear acceleration and deceleration linear, rear acceleration and deceleration exponential
		Manual mode and handwheel mode are after acceleration and deceleration control. Handwheel mode can be selected as immediate stop mode or complete operation mode.
		The start speed, end speed and time of acceleration and deceleration are set by parameters
Main function	2 channels 0 ~ 10V analog voltage output, support dual spindle control
		1 way spindle encoder feedback, spindle encoder line number can be set (100p/r ~ 5000p/r)
		Transmission ratio between encoder and spindle :(1 ~ 255) (1 ~ 255)
		Spindle speed: can be given by S code or PLC signal, speed range 0r/min ~ 9999r/min
		Spindle ratio: 50% ~ 120%, a total of 8 grades of real-time adjustment
		Spindle constant line speed control
		Rigid tapping
Function of cutting tool	Tool length compensation
Function of cutting tool		Tool tip radius compensation (Type C)
Precision compensation	Pitch error compensation: compensation points, compensation interval, compensation origin can be set
Precision compensation		Reverse clearance compensation: can be set to a fixed frequency or speed up and down to compensate the amount of reverse clearance machine
The PLC function	Two-stage PLC program, processing speed of 1.5μs/ step basic instruction; Maximum 4700 steps, level 1 program cycle 8ms
		Number of instructions: 45 (including 10 basic instructions and 35 functional instructions)
		Support PLC warning and PLC alarm
		Support multiple PLC programs (up to 20), the current running PLC program can be selected
		Basic I/O: 36 input /36 output
The man-machine interface	8.4-inch widescreen LCD with 800×480 resolution
		Display in Chinese, English and other languages
		Two dimensional tool path display
		Real time clock
Operation management	Operation mode: edit, automatic, input, machine zero back, hand wheel/single step, manual, program zero back
		Multi-level operation permission management
		Alarm log
The program to edit	Program capacity: 56MB, 400 programs (including subroutines, macroprograms)
		Edit function: program/program segment/word search, modify, delete, copy, paste
		Program format: ISO code, support statement macro code programming, support relative coordinates, absolute coordinates and mixed coordinates programming
		Program call: support macro program call with parameters, 4 levels of nested subroutines
Communications functions	RS232: parts program, parameters and other files two-way transmission, support PLC program, system software serial port upgrade
Communications functions		USB: U disk file operation, support PLC program, system software U disk upgrade
Safety features	Emergency stop
		Hardware travel limit
		Software trip check
		Data backup and recovery
