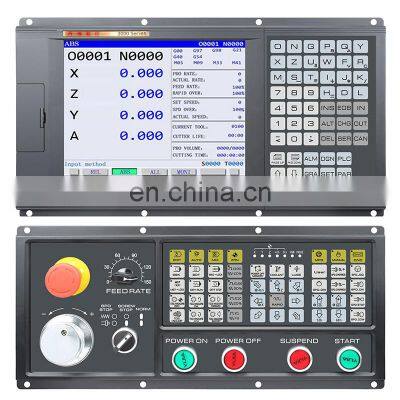

4 axi CNC control system kit with atc+plc is similar to GSK CNC controller panel for the lathe and turning center

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product features

● X, Z, Y, A 4 axis control, can be customized control axis number ● 1ms interpolation cycle, control precision 1μm ● Maximum speed 60m/min ● Adaptive servo spindle can achieve continuous spindle positioning, rigid tapping, rigid thread processing ● Built-in multi-PLC program, the current running PLC program can be selected ● Support statement macro code programming, support macro program call with parameters ● Support metric/English programming, with automatic tool alignment, automatic chamfering, tool life management functions ● Support Chinese and English display, by parameter selection ● USB interface, support U disk file operation, system configuration and software upgrade ● Two 0V ~ 10V analog voltage output, support double spindle control ● 1 way handwheel input, support handheld unit ● 36-point universal input / 36-point universal output ● Shape installation size, instruction system and GSK980TDb fully compatible

Specification parameters

Number of control shaft	Number of control axes: 4 axes (X, Z,Y,A)
Number of control shaft		Number of linkage axes: 4 axes
Feed shaft function	Minimum input increment: 0.001mm (0.0001inch) or 0.0001mm (0.00001inch) Optional
		Minimum instruction increment: 0.001mm (0.0001inch) or 0.0001mm (0.00001inch) Optional
		Large stroke: ±99999999 x minimum instruction increment
		Fast moving speed: maximum 60m/min
		Rapid rate: F0, 25%, 50%, 100% four levels of real-time adjustment
		Feed rate: 0 ~ 150%, a total of 16 levels of real-time adjustment
		Interpolation methods: linear interpolation, arc interpolation (support three-point arc interpolation), thread interpolation, rigid tapping
		Automatic chamfering function
Thread function	Normal thread (follow spindle)/ rigid thread
		Single head/long head male inch straight thread, taper thread and end thread, equal pitch thread and variable pitch thread
		The length, Angle and speed characteristics of thread withdrawal can be set
		Thread pitch: 0.01mm to 500mm or 0.06 teeth/inch to 2540 teeth/inch
Acceleration and deceleration function	Cutting feed: front acceleration and deceleration linear, front acceleration and deceleration S type, rear acceleration and deceleration linear, rear acceleration and deceleration exponential type
		Fast moving: front acceleration and deceleration linear, front acceleration and deceleration S, rear acceleration and deceleration linear, rear acceleration and deceleration exponential
		Thread cutting: linear, exponential optional
		The start speed, end speed and time of acceleration and deceleration are set by parameters
Main function	2 channels 0 ~ 10V analog voltage output, support dual spindle control
		1 way spindle encoder feedback, spindle encoder line number can be set (100p/r ~ 5000p/r)
		Transmission ratio between encoder and spindle :(1 ~ 255) (1 ~ 255)
		Spindle speed: can be given by S code or PLC signal, speed range 0r/min ~ 9999r/min
		Spindle ratio: 50% ~ 120%, a total of 8 grades of real-time adjustment
		Spindle constant line speed control
		Rigid tapping
Function of cutting tool	Tool length compensation
		Tool tip radius compensation (Type C)
		Tool wear compensation
		Tool life management
		Knife setting method: fixed point knife setting, trial cutting knife setting, back reference point knife setting, automatic knife setting
		Tool deviation execution mode: modify coordinate mode, tool movement mode
Precision compensation	Reverse clearance compensation
Precision compensation		Memory pitch error compensation
The PLC function	Two-stage PLC program, up to 4700 steps, level 1 program refresh cycle 8ms
		PLC program communication download
		Support PLC warning and PLC alarm
		Support multiple PLC programs (up to 20), the current running PLC program can be selected
		Basic I/O: 36 input /36 output
The man-machine interface	10.4-inch widescreen LCD with 800×600 resolution
		Display in Chinese, English and other languages
		Two dimensional tool path display
		Real time clock
Operation management	Operation mode: edit, automatic, input, machine zero back, hand wheel/single step, manual, program zero back
		Multi-level operation permission management
		Alarm log
The program to edit	Program capacity: 56MB, 400 programs (including subroutines, macroprograms)
		Edit function: program/program segment/word search, modify, delete, copy, paste
		Program format: ISO code, support statement macro code programming, support relative coordinates, absolute coordinates and mixed coordinates programming
		Program call: support macro program call with parameters, 4 levels of nested subroutines
Communications functions	RS232: parts program, parameters and other files two-way transmission, support PLC program, system software serial port upgrade
Communications functions		USB: U disk file operation, support PLC program, system software U disk upgrade
Safety features	Emergency stop
		Hardware travel limit
		Software trip check
		Data backup and recovery

G code table
code	Function	code	Function
G00	quickly locate	G50	floating workpiece coordinate system
G01	Linear interpolation	G54-G59	Set the coordinate system of the workpiece
G02	clockwise arc interpolation	G65	macro code modeless call
G03	counterclockwise arc interpolation	G71	axial rough turning cycle
G04	stop, quasi stop	G72	radial rough car cycle
G17	Plane selection code	G73	seals the cutting cycle
G18	plane selection code	G70	finishing cycle
G19	Plane selection code	G74	Axial grooving cycle
G10	data input mode effective	G75	radial grooving cycle
G11	Cancel data input mode	G76	Multiple thread cutting cycle
G20	Inch unit selection	G80	rigid tapping status cancelled
G21	metric unit selection	G84	axial rigid tapping
G28	automatic return machine zero	G88	radial rigid tapping
G30	returns to the second, third and fourth reference points of the machine tool	G90	axial cutting cycle
G31	jumper	G92	thread cutting cycle
G32	equal pitch thread cutting	G94	radial cutting cycle
G33	Z axis tapping cycle	G96	constant line speed control
G34	Variable pitch thread cutting	G97	cancel constant line speed control
G10	cancel tip radius compensation	G98	per minute feed
G41	tip radius left compensates	G99	for each turn of feed
G42	tool tip radius right compensation
