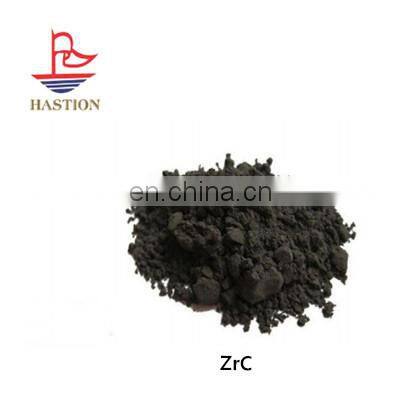

Zirconium Metal Prices Zirconium Alloy Zirconium Carbide Powder For Coating

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Overview

Product Application

ZrC used in the preparation of high-performance, high-tech fields such as high-performance cemente carbide, aerospace, atomic energy, texitile electronics, coating, hard film and metallurgical automation. It is a new carbon composite functional materials that can improve the high temperature corrosion resistance of its products. It is a high hardness of high melting materials and excellent high temperature refractory materials and it can used as rocket engine.

Chemical Characteristics

Grade

Chemical Contents(%)

FSSS

Fisher Number

(um)

Total Carbon

Free Carbon

Impurity Contents(≦%）

ZrC

11.6±0.2

≦0.35

0.08

0.01

0.005

0.30

0.05

0.005

4.0±0.5

Note: We can make the diferent partical size and chemical composition according to customize.

Company Profile

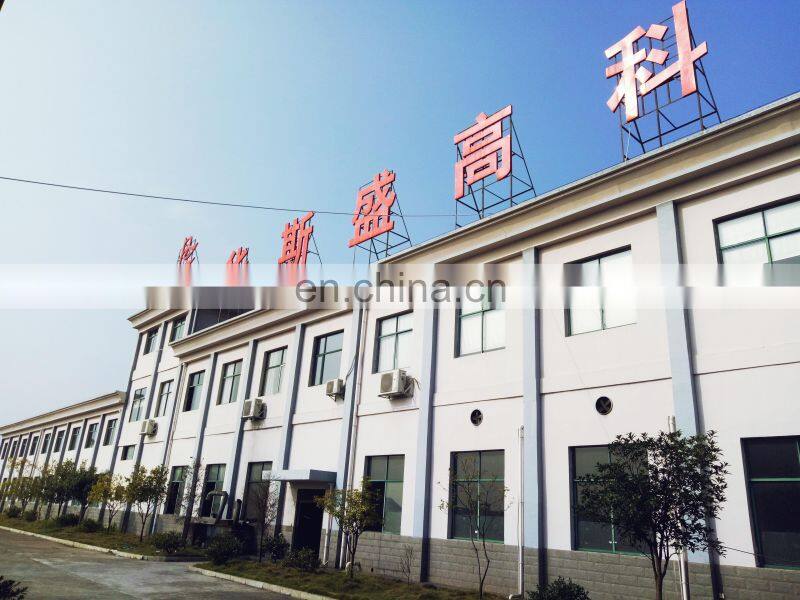

Zhuzhou Hastion High-Tech Materials Co., Ltd. is in Yanling, Zhuzhou of cemented carbide centralized place, which covers an area of 20000 square meters. Hastion is a comprehensive high-tech enterprise integrating scientific research, development, production and sales, and has passed the ISO9001-2015 quality system certification. The company has a high professional quality R & D and management team, which more than 30 staffs have engineer titles and bachelor degree accounts for 38% of the management staff. The company has obtained many patents such as "A method of making cemented carbide material of TiCN", and several utility model patents such as "A cemented carbide tile cutter".

Production Process

The production process of powder-metallurgical products basically includes the four steps of powder preparation, forming,sintering and finishing.

1.Titanium carbide production
The APT (ammonium para-tungstate) is calcined into tungsten oxide under high te-mperature. Subsequently the oxide is reduced to tungsten metal in a hydrogen atmosphere. The metal powder is then mixed with carbon and carburised under inert atmosphere at high temperatures. The production parameters are decisive for the WC grain size in the sintered carbide.

2.Powder preparation
The tungsten carbide is intensely mixed with the binder metal cobalt, nickel or iron, various grain growth inhibitors and materials,which promote compaction, by wet grinding so that a homogeneous suspension is created. Afterwards, the suspension is dried in a spray tower to produce a granulate with good flow characteristics. This granulate represents the basis for all forming processes.

3.Metal forming
The objective of the forming process is to obtain a near net shape sample. Pressing is normally carried out at room temperature with pressures reaching up to several tons per square centimetre.There are several ways of pressing blanks:During isostatic cold pressing the powder is filled into an elastic flexible hose and pressed into acompacted form through high liquid pressure. The powder blocks which are produced in this way can then be processed mechanically. All common machining methods like milling,cutting, drilling or turning maybe applied.In uniaxial pressing the pressing tool consists of a die and an upper and a lower punch. The carbide powder is filled into the die and then compacted to create the so called green carbide,which is ejected from the pressing die.Extrusion pressing is mainly used to produce rectangular bar or cylindrical rod, with or without axial hole(s). A plasticiser is added to the powder. The resulting paste is pressed through an extrusion nozzle. Before sintering, the plasticiser must be evaporated in special drying furnaces. Metal Injection Moulding (MIM) is a process used to produce more complex forms which cannot be produced by direct pressing. The paste preparation is similar to the extrusion process.

4.Sintering process
The sintering process converts the blank into a homogeneous and dense carbide with a high level of hardness. The material is sintered at temperatures between 1,300 and 1,500 °C (liquid phase sintering) and sometimes also at high pressure (up to 100 bar). The volume is reduced by up to 50 % during this process.

5.Finishing
In order to achieve the final requirements of surface finish, tolerances,etc. carbide parts can be subjected to a series of finishing processes such as grinding, spark erosion and coating.

Certifications

Exhibition

FAQ

1. who are we?
We are based in Hunan, China, start from 2011,sell to Domestic Market(11.11%),South Asia(11.11%),Southern Europe(11.11%),Central America(11.11%),Eastern Asia(11.11%),Southeast Asia(11.11%),Eastern Europe(11.11%),South America(11.11%),North America(11.11%).
There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Steel-bonded cemented carbide,carbide ceramic tile cutting,carbide rods,Carbide glass cutting wheel,Cermet rods

4. why should you buy from us not from other suppliers?
Our factory in yanling, Zhuzhou of Carbide centralized place, occupies an area of 50 acres of land. Langfeng own excellent R&D team, responsible for the design of the products, R&D and quality control, have achieved a number of invention patents already.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,Express Delivery；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
