Product Description

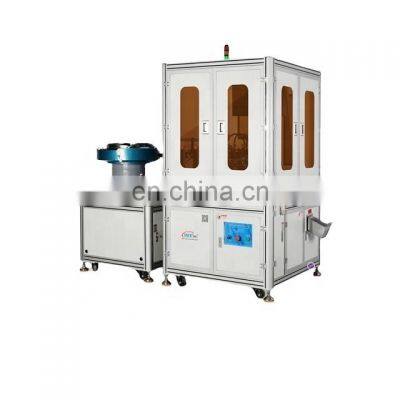

Hot Sales Hardware Pins Shaft Roller Products Optical Sorting Machine
Types: RK-1520 U-Type Groove Optical Sorting Machine
Suited for: Pins, shafts, rollers and special components
Inspection Screen
1.The machine is equipped with a vertical top view industrial camera for inspecting the multi-segment height, outer diameter, and total length of the product.
2.It can be outfitted with additional industrial cameras for the inspection of leaks and other factors.
2.It can be outfitted with additional industrial cameras for the inspection of leaks and other factors.
Technical Parameter:
Note: Customized service can be provided according to the detect demand.
Machine Features:
U Type Groove Optical Sorting Machine patent Number No. ZL2013202116018.
1.The machine is suitable for the inspection of products that cannot stand on the glass plate.
2.Both products that can and cannot stand can be inspected by this machine.
3.Detection speed:100~500 PCS /min Depend on individual case.
1.The machine is suitable for the inspection of products that cannot stand on the glass plate.
2.Both products that can and cannot stand can be inspected by this machine.
3.Detection speed:100~500 PCS /min Depend on individual case.
4.Easy to operate and maintain.
5.Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
5.Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
Inspection Items:
Diameter,Hole diameter | Roundness |
Length | With coating |
Width | With mark |
Height,Thickness | With cut/tapering |
Surface defect | Parallel edge length |
Deformed,Broken | Broken pin,Recess depth |
Different shape | With thread |
Crack | Fine or coarse thread |
Burrs,Chips | Tooth numbers |
Across Corners | Pitch |
Across Flat | Slanted thread |
Chamfer angle | Minor diameter |
Included angle | Major diameter |
Arc radius | Hardness |
Concentricity | Recognition of different materials |
With or without heat treatment |
Delivery and Package:
Shipping
1.Upon receipt of payment,delivery date will be in 25-30 working days.
2.By Sea, by Air or by Express(DHL etc.)
Packed in plywood cases (No Fumigation required) or according to customer‘s requirement.
Service Advantage:
1, Warranty: 12 months FREE overseas service.
2, Enjoy lifelong maintenance.
3, Professional service team, to provide 24 hours, 365 days of technical support.
4.Offer remote online service ,if there is no solution within 2 hours,door to door service will be offered after both parties
negotiation.
5.Convenient service ,response for your machine breakdown in the shortest time and get rid of your worry.
2, Enjoy lifelong maintenance.
3, Professional service team, to provide 24 hours, 365 days of technical support.
4.Offer remote online service ,if there is no solution within 2 hours,door to door service will be offered after both parties
negotiation.
5.Convenient service ,response for your machine breakdown in the shortest time and get rid of your worry.
Welcome to ask for details.
If you could provide related samples and test items, a project plan will be send to you after practical test by us. Then discuss the equipment specification and procurement plan.
We promise that most suitable machine with costing the least money.
