600KN 60TON Precise Hydraulic Instron Used Universal Tensile Testing Machine Price
- T/T Credit Card
You May Like
-
Hot Selling Technique Stress Relaxation Astm With Low Price
-
New Design Metals Stress Relaxation Test Equipment Made In China
-
New Design Tensile Testing Equipment Controlled Steel Strand Tester Stress Relaxation Astm Made In China
-
Brand New What Is Test Controlled Steel Strand Stress Relaxation Tester With High Quality
-
Steel Strand Tensile Stress Relaxation Testing Machine Servo Testing Machine Hydraulic Pump Test Bench
-
Steel Strand Tensile Stress Relaxation Testing Machine Servo Tensile Electro-Hydraulic Dynamic Testing Machine
Product Description
600KN 60TON Precise hydraulic instron used universal tensile testing machine price
CONTACT:LINDA
SKYPE:KASON004
WHATSAPP:+86 18253185736
1.Application:
The machine adopts hydraulic loading, Computer Display, easy and convenient to operate.
It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials.
Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber,
and so on.

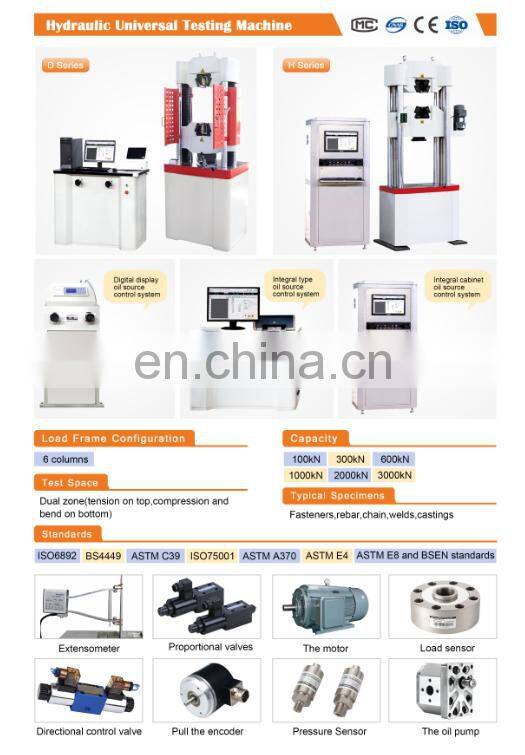

2.Standards:
ISO6892,BS4449,ASTM C39,ISO75001,ASTM A370,ASTM E4,ASTM E8 and BSEN standards.
3.1.Adopts that fuel tank is mounted under the host, tensile test space is located above the host,
compression, bending, shearing test space is located under the host, means between beam and
worktable.

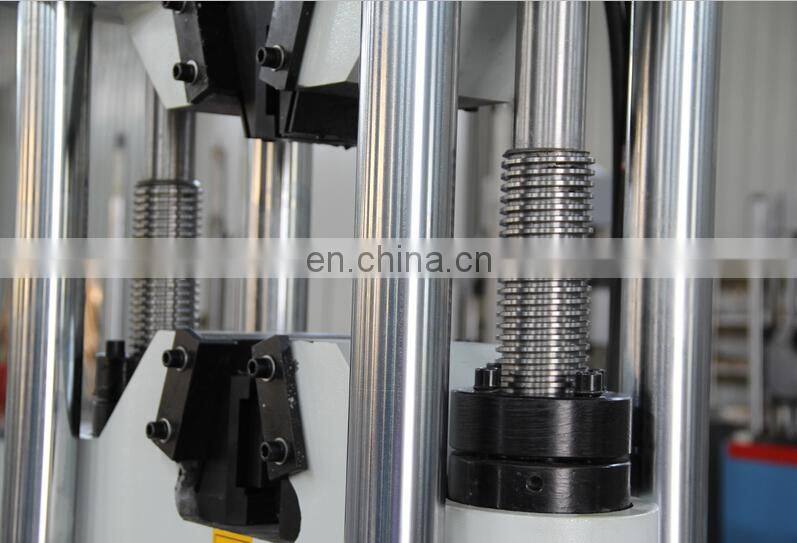

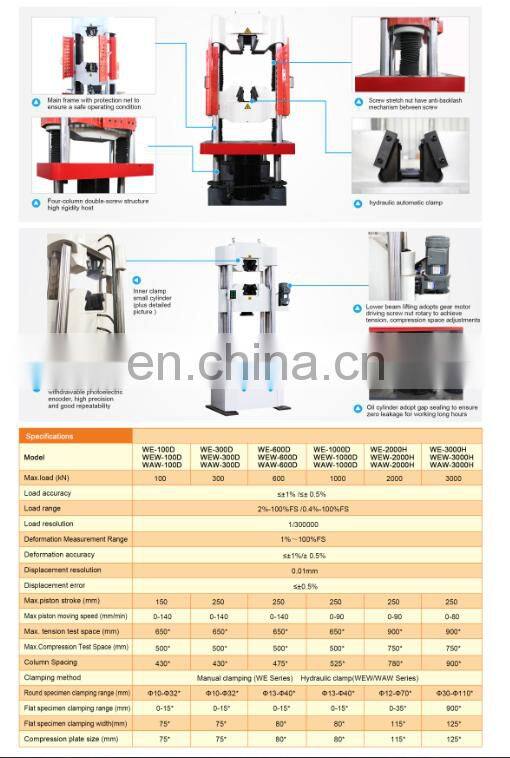

3.2.The structure is designed with solid four column and two screw, the whole machine has strong
stability.
3.3.The host is designed all-inclusively to ensure its super strong stiffness so that it can resist micro-
deformation when it is loading.
3.4.Middle beam adopts adjustable gap screw-nut mechanism, eliminating the gap and improving
the measurement performance.
4.Overload Protection:
4.1.When the test force exceeds 2%-5% of the maximum test force of each file, overload protection,
it will stop.
4.2.When the piston rises to the upper limit position, travel protection, pump motor will stop.
SKYPE:kason004 Tel:+86 18253185736
5.Main Specifications:
Model | WEW-600D |
Structure | 6 Column (Four Columns Two Ball Screws) |
Control Way | Loading Process Manual Control, Computer Automatic Data Dealing. |
Max. Load | 600kN |
Load Accuracy | ≤±1% (Optional: ≤± 0.5%) |
Load Range | 2%-100%FS (Optional: 0.4%-100%FS) |
Load Resolution | 1/300000 |
Deformation Measurement Range | 2%~100%FS |
Deformation Accuracy | ≤± 1% (Optional: ≤± 0.5%) |
Displacement Resolution | 0.01mm |
Displacement Error | ≤±0.5% |
Max.piston Stroke | 250mm |
Max. Piston Moving Speed | 0-90mm/min Manual adjustment
|
Crossbeam Lifting Speed | 150mm/min |
Max. Tension Test Space | 650mm(Can Be Customized) |
Max. Compression Test Space | 500mm (Can Be Customized) |
Center Spacing Between Columns | 540mm |
Column Effective Spacing | 475mm |

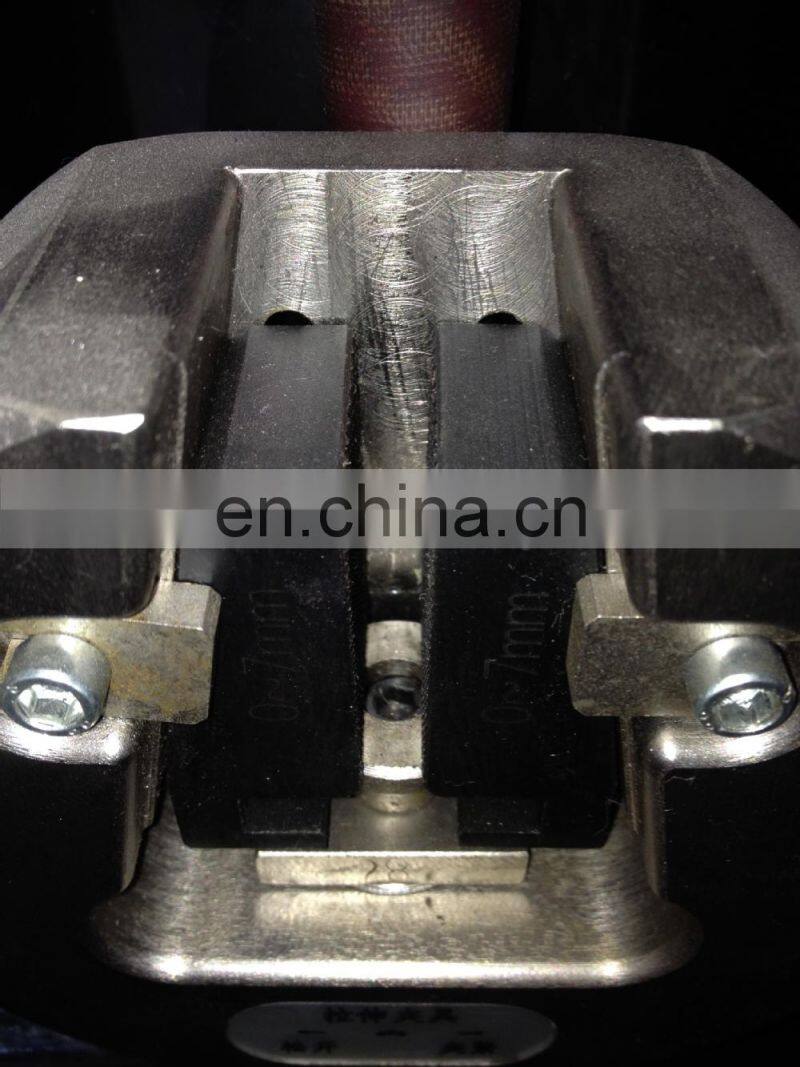

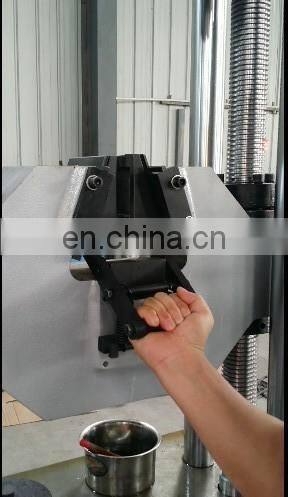

Clamping Method | Hydraulic Automatic Clamp |
Round Specimen Clamping Range | Φ13-Φ26mm,Φ26-Φ40mm (Optional: Φ6-Φ13mm, Φ40-Φ50mm) |
Flat Specimen Clamping Range | 0-15mm (Optional: 15-30mm) |
Flat Specimen Clamping Width | 80mm |
Compression Plate Size | φ160mm |

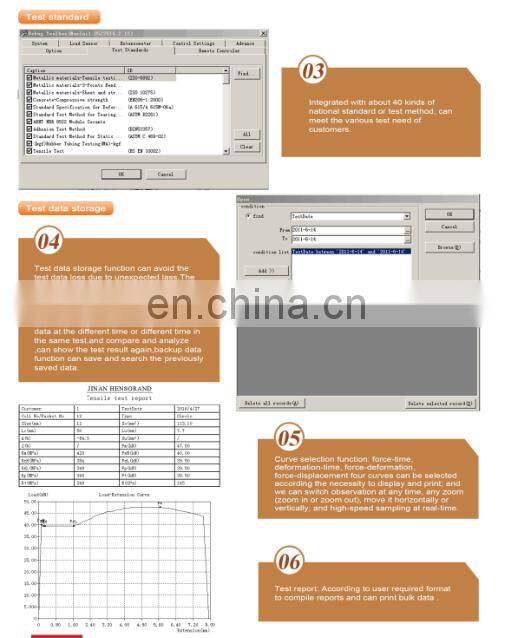

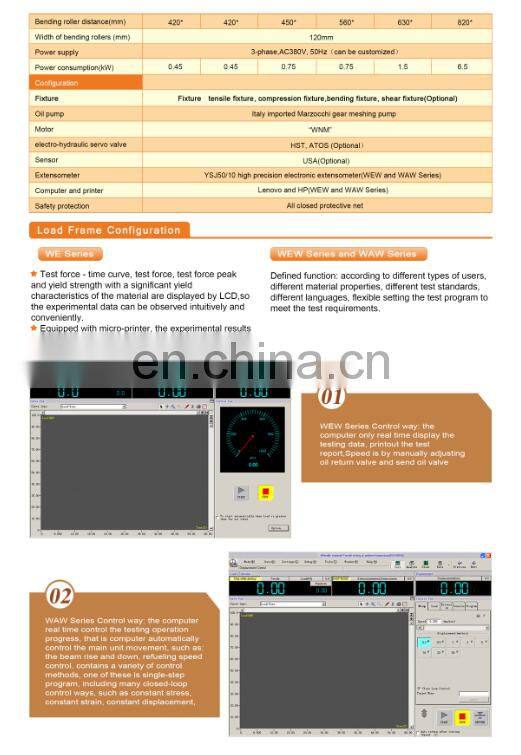

SOFTWARE
FOREIGH CUSTOMER
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
