Product Description
HC-C021C Handheld portable Ultrasonic Pulmonary Function Spirometer/ incentive Spirometer
Features for HC-C021C Handheld portable Ultrasonic Pulmonary Function Spirometer/ incentive Spirometer :
Introduction:

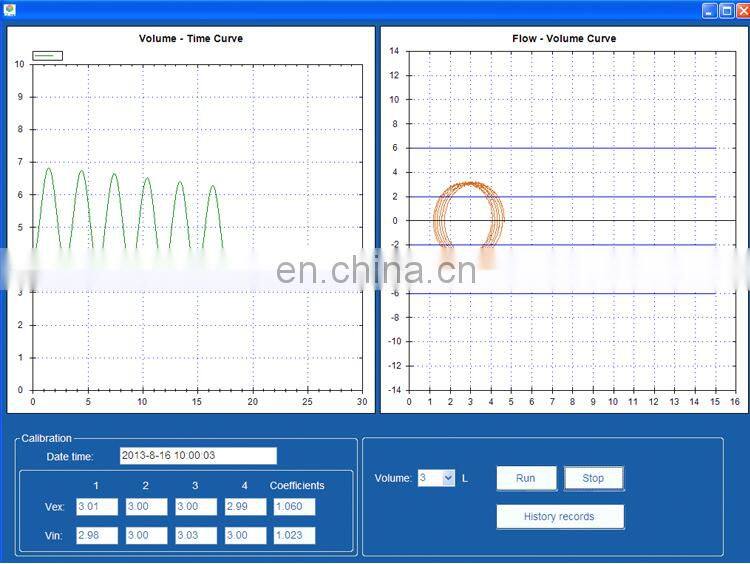

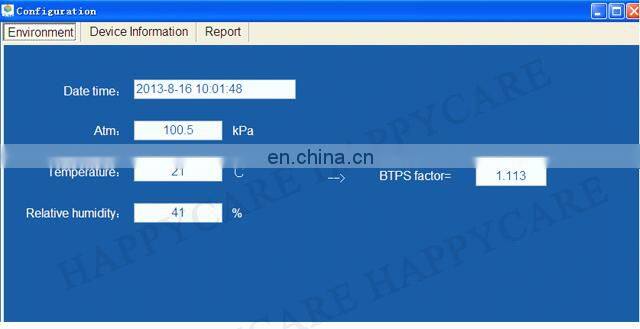

Handheld Pulmonary Function Spirometer adopts ultrasonic technology by ultrasonic gas flow sensor to measure body’s respiratory function and inspiratory function, to convert the patient breathing signal into electrical signal which is sent to corresponding signal processing circuit, to display real-time respiratory flow curve and then to calculate a variety of physiological and spirometric parameters. It can be used to monitor static vital capacity, forced vital capacity and maximum voluntary ventilation rate. The software can automatically do BTPS correction and evaluate pulmonary function.
Application:
Test instruments used in respiratory internal medicine, pulmonary medicine, tracheitis medicine, surgery etc.
Preoperative Pulmonary function tests.
With the needs of the internal medicine diagnosis and treatment.
To meet the needs of the cardiology medical work.
The physical examination of the company and the school.
To meet the needs of industrial hygiene.
Specifications:
Measure exhale and inhale function of the human body
Portable and compatible
Upgradable and expandable
No need to replace the sensor, no maintenance, simple, light-weight, easy handling
Dedicated disposable mouthpiece, suitable for children and adults
|
Working conditions |
|
|||||||
|
Ambient temperature |
5℃-40℃ |
|
||||||
|
Relative Humidity |
≤95% RH (non-condensing ) |
|
||||||
|
Atmosphere pressure |
80kPa-106kPa |
|
||||||
|
Power supply |
DC 4.75V-5.25V (supplied via USB port) |
|
||||||
|
Items |
Ranges |
Max error |
||||||
|
VC (Vital Capacity) |
(0.5-8)L |
±3% or ±0.050L whichever is larger |
||||||
|
FVC(Forced Vital Capacity) |
(0.5-8)L |
±3% or ±0.050L whichever is larger |
||||||
|
MVV(Maximum Ventilatory Volume) |
250L/min |
±3% or ±15L/min whichever is larger |
||||||
|
Configurations |
|
|||||||
|
Handheld Pulmonary Function Tester * 1 unit |
Setup CD disc * 1 pc |
|
||||||
|
Breather pipe * 10 pcs |
USB softdog * 1 unit |
|
||||||
|
nasal splint * 10 pcs |
Trolley and braket * 1 set |
|
||||||
|
Mouthpiece (consumable) * 10 pcs |
Personal computer * 1unit (optional) |
|
||||||
|
Users Manual * 1 pc |
Printer * 1 unit (optional) |
|
||||||

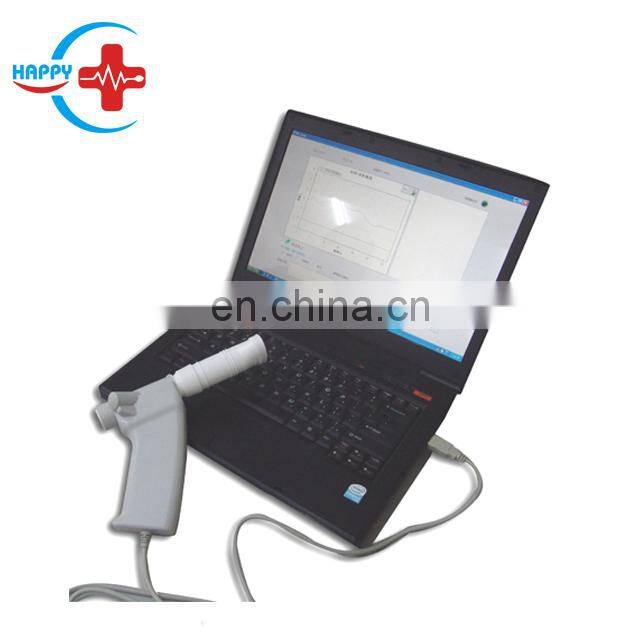

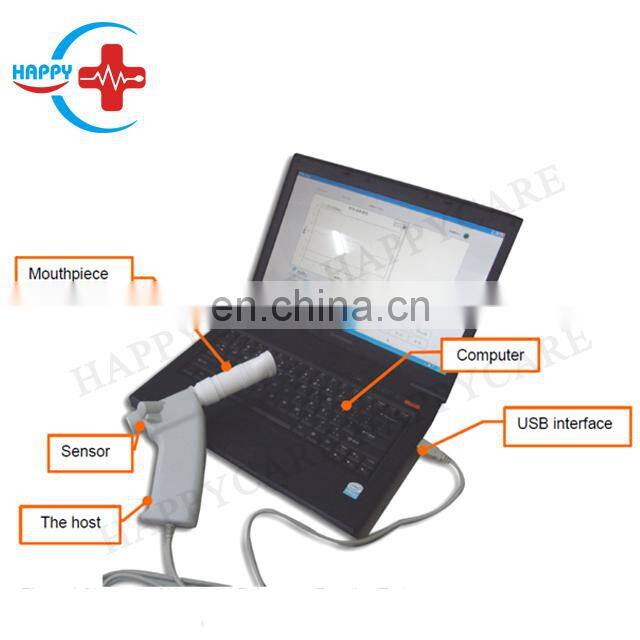

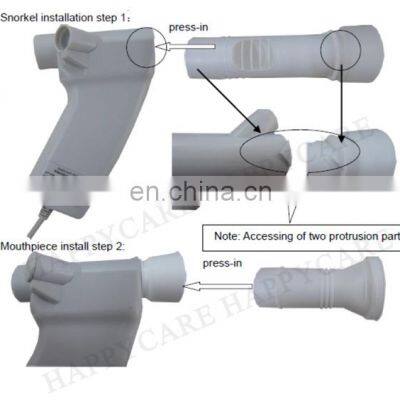

Pictures for HC-C021C Handheld portable Ultrasonic Pulmonary Function Spirometer/ incentive Spirometer :
1. How to place order of HC-C021C Handheld portable Ultrasonic Pulmonary Function Spirometer/ incentive Spirometer ?
A: Firstly we confirm product details and then send the Proforma Invoice,
You make payment to us through Trade Assurance or T/T, Western Union or MoneyGram,
after we confirm your payment then ship the product to you once finished production.
2. For HC-C021C Handheld portable Ultrasonic Pulmonary Function Spirometer/ incentive Spirometer product,What’s the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ,For our HC-C021C Handheld portable Ultrasonic Pulmonary Function Spirometer/ incentive Spirometer , our MOQ:1pc,
3. What is your warranty?
A: For most products the warranty is for 12 months, some products we provide 18 months warranty.
For HC-C021C Handheld portable Ultrasonic Pulmonary Function Spirometer/ incentive Spirometer , we provide 12 months warranty.
4. What’s your delivery time?
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity.
For HC-C021C Handheld portable Ultrasonic Pulmonary Function Spirometer/ incentive Spirometer , the delivery time is 10 working days.
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.
