Chemiluminescence Immunoassay Analyzer/immunoassay Analyzer Price Competitive

 HC-B014 chemiluminescence immunoassay analyzer/immunoassay analyzer price competitive

Features for immunoassay analyzer:
1, you can use reagent automatic sampler
Optional reagent automatic sampler, eliminating the need for light-emitting substrate artificial loading procedures to improve the detection accuracy.
2, remote network diagnosis and remote data exchange
Specifically for export-oriented equipment supporting online hardware monitoring and diagnostic system, and the realization of network remote instrument and non-destructive data exchange, to facilitate product technical support and services.
3, the stability of the mechanical part
The international market, the British original models have more than 5,000 units are used every day, the instrument internal mechanical structure design reasonable and secure to ensure the stability of the instrument.
4, advanced measurement methods to create unparalleled performance parameters
Ultra-sensitivity, wide linear range, without cumbersome repeat calibration, calibration can be used once the standard curve stable 2-6 weeks to support 1 to 3 points to amend the standard curve, 4 to 7 points to draw a new standard curve.
5, professional unique interference absorption device
Built-in adjacent microporous phototransistor absorption and mechanical interference anti-jamming device to ensure the detection accuracy, to ensure that weak light detection and expand the linear range of the system.
6, efficient integrated design
Streamlined design, the appearance of generous, ** for convenience. Precision three-dimensional transmission, low loss fiber transmission, to ensure excellent instrument performance and low noise operation.
7, qualitative and quantitative and a variety of curve fitting method
Support quantitative and qualitative analysis of two ways, and can print the corresponding report card. All data can be exported to Excel, user-friendly analysis of data processing, quality control can be analyzed and generate quality control map.
8, open working mode
1-96 samples tested, the number of optional, that is suitable for batch testing, a small number of patients or emergency situations can also be random test.
9, data analysis method is excellent
Built-in nearly 30 kinds of data analysis curve to fit the way to meet the needs of various projects can be set by the instrument can also be selected by the staff, the standard curve data and graphics can be displayed and printed at any time.
10, reagent open and single board a number of functions
Reagents open, you can use a number of manufacturers of reagents, the use of standard 96-well plate with the same orifice can be set up multiple projects and measurement analysis to improve detection efficiency.

Technical parameters:

Measurement system: photon counter (PMT)

Sample forms: 96 orifice or article

Spectral range: 300-650 nm

Linear measurement range: 2.0 x 10-7 rlu/SEC

Stability: 8 hours working instability CV < 3%

Sensitivity: TSH analysis sensitivity of 0.01 or less uIU/ml, 0.1 200000 miu/ml HCG sensitivity analysis

Interference between hole: less than 3 x 10-5

Repeatability: CV < 3%

Detection speed: 2 minutes and 45 seconds (96 hole sample testing)

Communication interface: RS232

Working environment: 10 °C to 30 °C

Working voltage, working voltage: 220 v + 22 v, 50 hz + 1 hz

Shape size: 500 mm * 350 mm * 350 mm

24 kg weight.

Standard configuration:

Chemiluminescence analyzer: 1

The software CD: 1

Chemiluminescence reagent training: 24 doses per box

Description: a

Data connections: a

Optional configuration

Brand computer: 1

Laser printers: 1

Wash the trigger: 1

Oscillator: 1

Pipetting 100 mu (l) : 1

Spear head box: 1

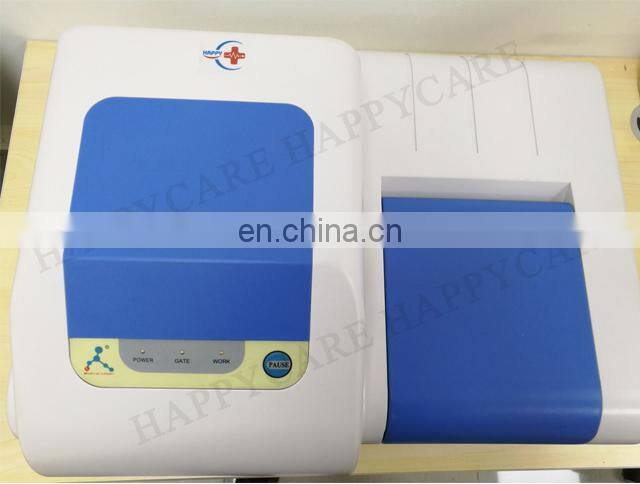

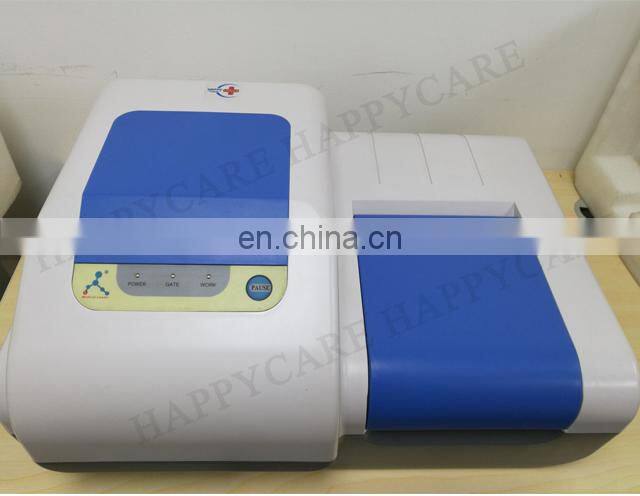

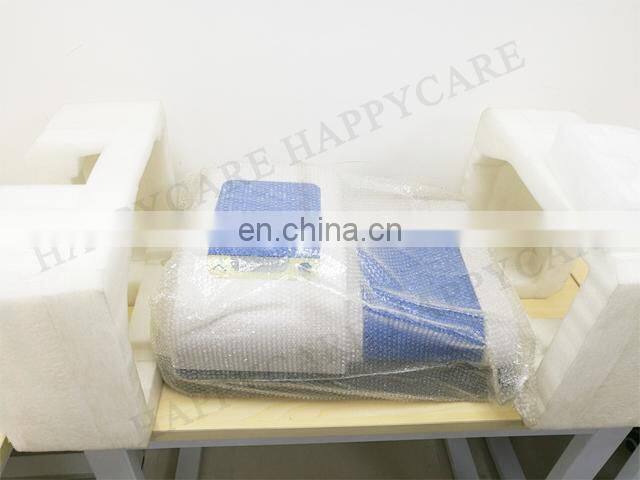

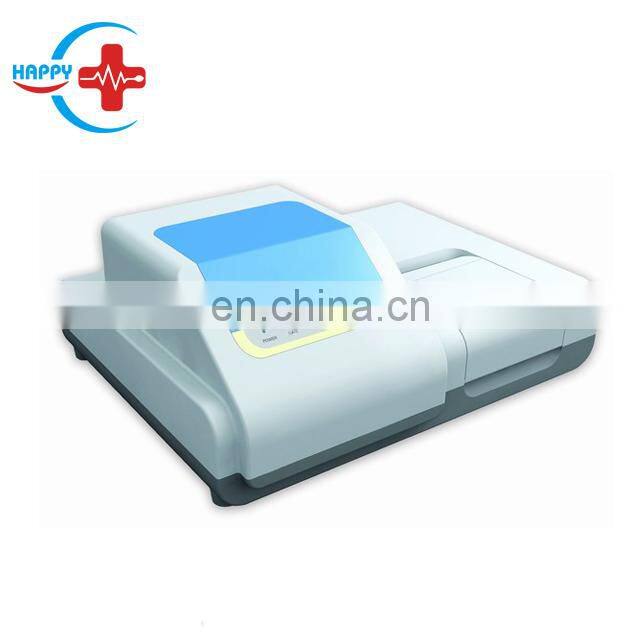

Pictures for immunoassay analyzer:
