HC-A005 Pregnancy Ultrasound Scan/Medical Diagnostic Equipment/18 Inch Large LCD

 Features for HC-A005 Pregnancy Ultrasound Scan/18 inch large LCD Touch Screen 3D Ultrasound:

It is first ultrasound scanner that with large and touch screen, it is popular for its pretty
appearance, powerful functions, and easy to operation.

It is computer based so its functions is powerful, include can create detail diagnosis report, with
large volume store, can work with any USB printer. And it also can use as a office computer when not
use it as ultrasound scanner.

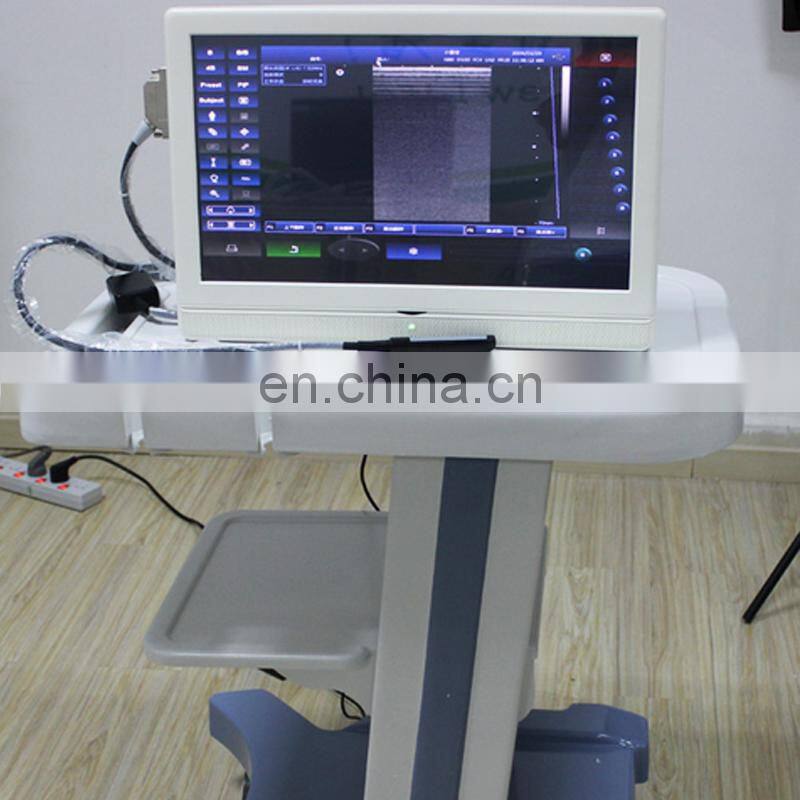

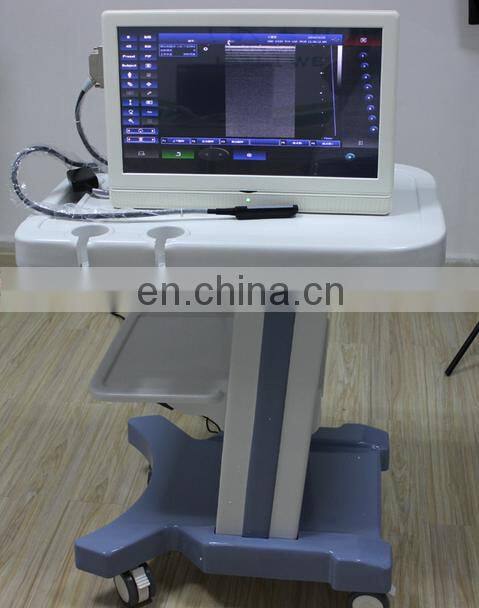

Its structure also is special, can put on desk, also can wall hanging, and install on a trolley with
rocker arm.

Specification:

-Monitor: 18.5 inch touch LCD screen

-D-Maximum Scanning Depth: 250mm

-Multi-frequency: 5 segment frequencies+THI for check

-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0

-Image gray scale: 256 level gray scale

-Zoom: 10 ratio: 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0.

-Angle scanning: There are 25%, 30%, 35%…100% altogether16 angles for scanning

-Dynamic range: Continuous adjustable: 30~120dB, 16 levels in all.

-Contrast: 0-100 continuous adjustable

-Cine Loop: 64, 128, 256, 512, 1024frame, Auto/manual cine loop

-Scanning mode: B, 2B, B/M, M, 4B, ZOOM; Real-time Zoom on B mode

-Image direction: Up/down/left/right and polarity reversion

-Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge;
enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.

-Gain: gain: adjustable between 0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment
separately.

-Supported output apparatus: 3 USB connector for U-Disk, Laser/ink printer, mouse, keyboard; RJ-45
connector for internet and DICOM3.0

-Measurement and calculation:

M mode: heart rate, time, distance, slope and stenosis;

Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;

Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD -Storage: Image storage,
cine loop storage, measurement result and report can be stored, storage capacity 4G.

-Patient information management: Diagnosis case management, report print, comment library, image
output(USB), import data.

-Marks: Comment, body mark(140 kinds for different parts’ option), arrow.

-DICOM Real-time Ethernet transmission: This option allows real-time transmission by Ethernet.
Ethernet-capable allows local and internet ultrasound data transmission.

-System preset: System preset includes parameter presets of abdominal , GYN, OB ,vascular, cardiac,
small organs, andrology, urology, comments, manufacture default settings, system upgrade and
maintenance settings.

-Probe Connector:2

-Dimension: 48*34*10cm

-Weight: Around 6.5kg

Main feature:

·Full digital imaging technology

·PC based powerful information management

·Complete application software packages

·Broadband Multi-frequency probes

·Large volume permanent storage

·USB ports & RJ-45 ports

·Compatible with laser/inkjet printers

·Silica gel waterproof keyboard

·18 inch large LCD

·Touch screen(optional)

Standard Configuration:

-Ultrasound scanner host 1 unit

-Convex probe(R60, 3.5MHz) 1pcs

-Power adapter 1pcs

-Computer Keyboard and Mouse 1set

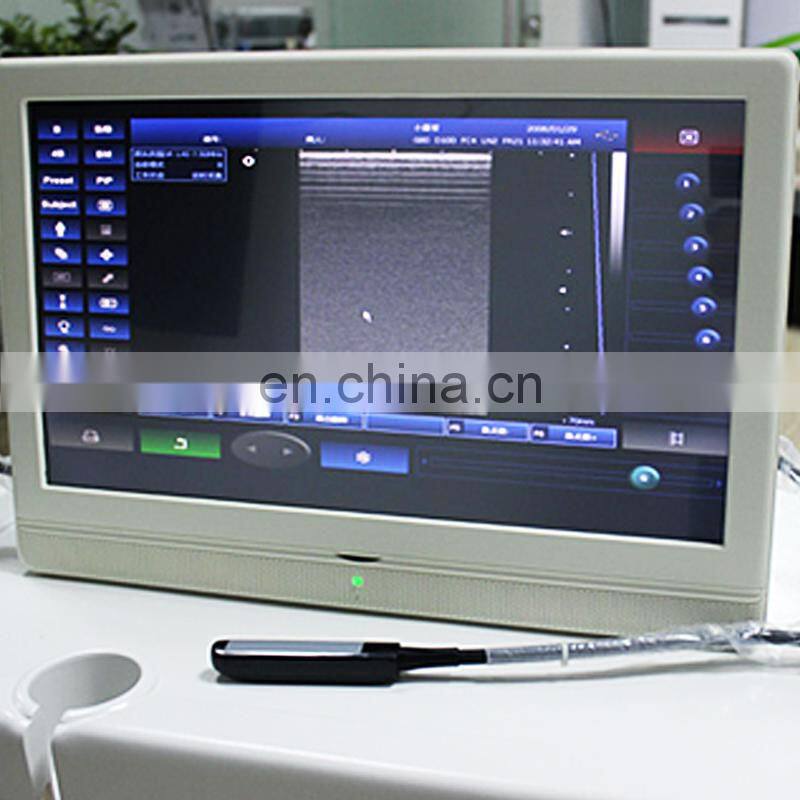

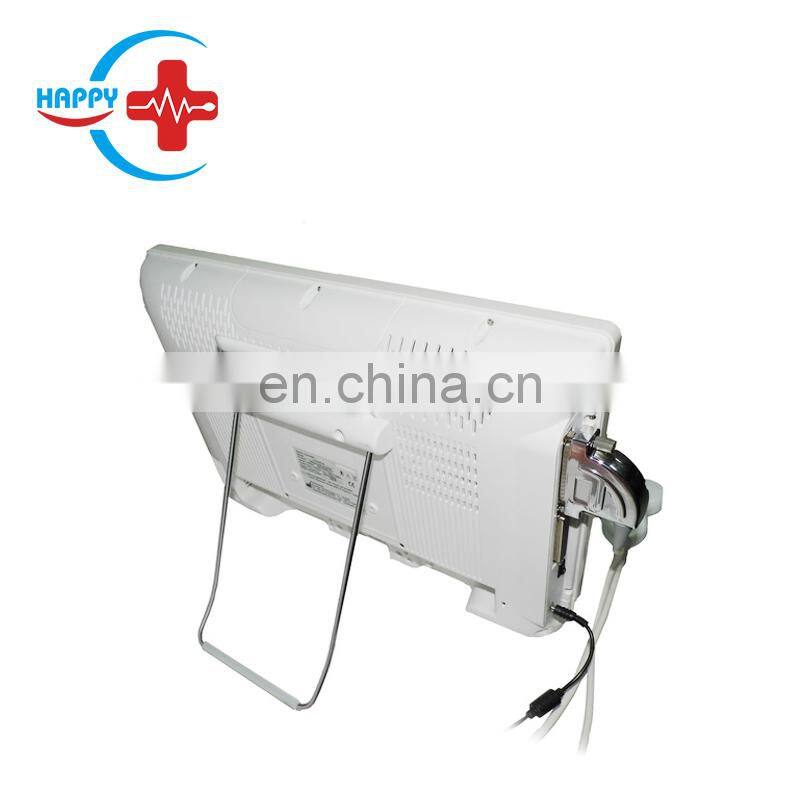

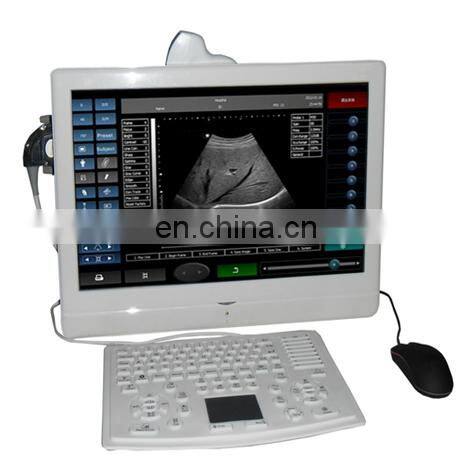

Pictures for  HC-A005 Pregnancy Ultrasound Scan/18 inch large LCD Touch Screen 3D Ultrasound:
