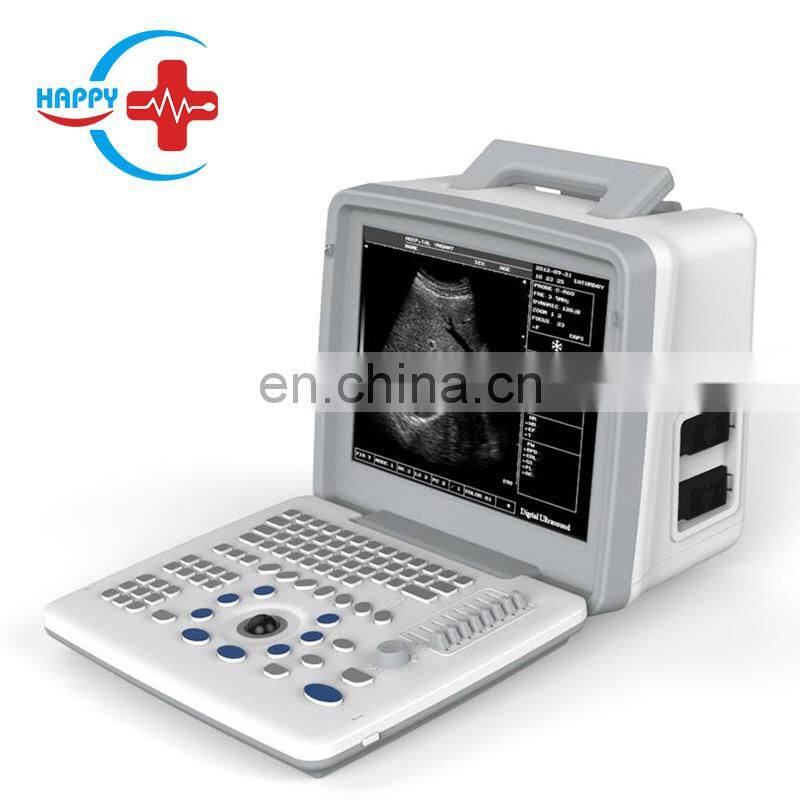

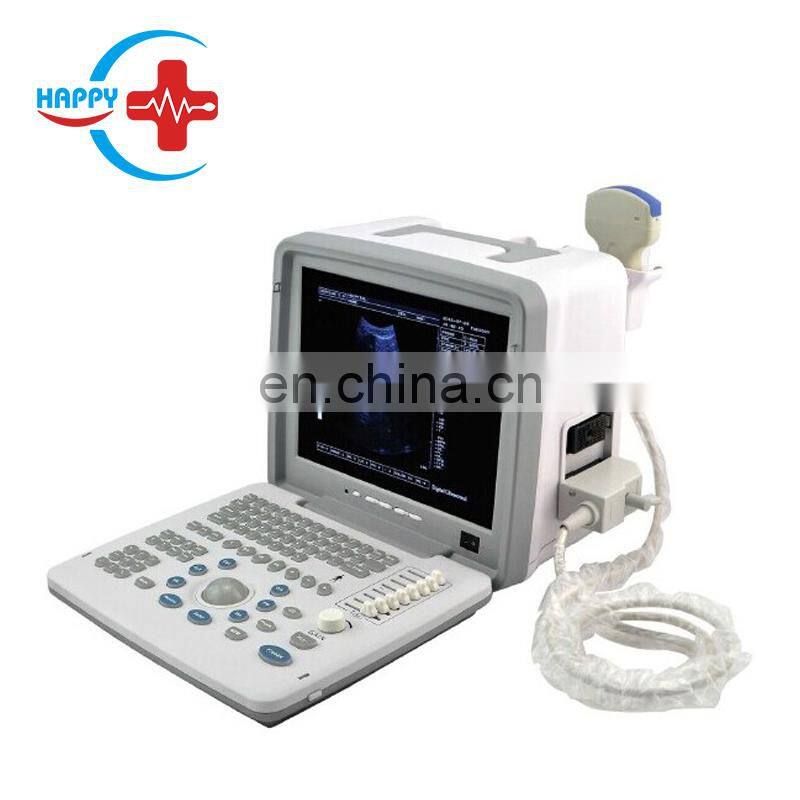

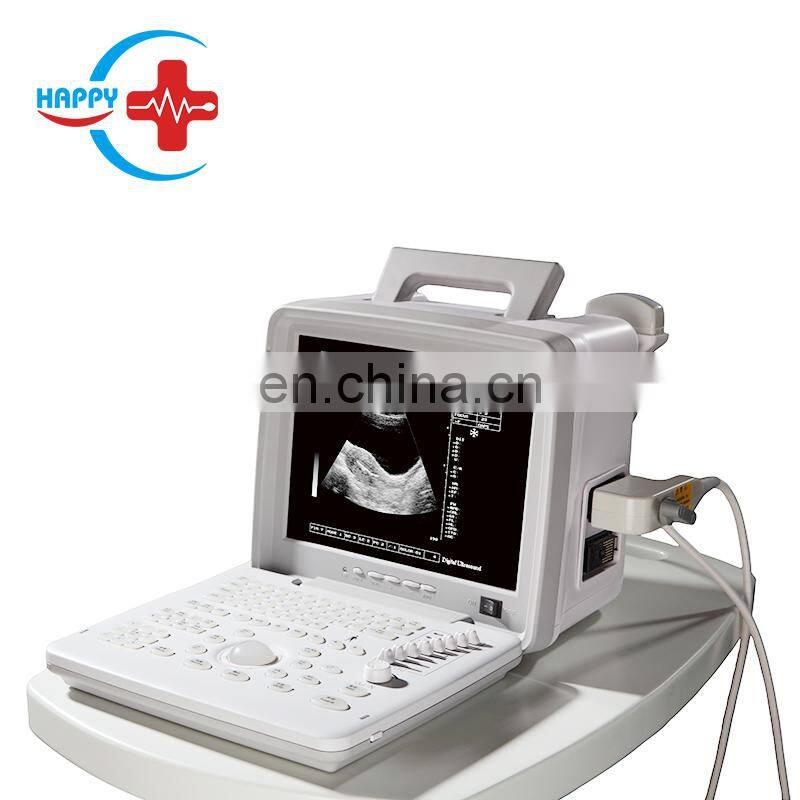

HC-A002 China original cheap LED Full Digital Portable Ultrasound Scanner

Model

HC-A002

Display Modes

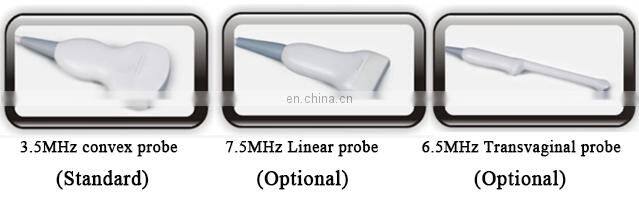

3.5MHz/R60 convex array probe:B,B/B,4B,B+M,M

5 MHz/R20 Dimpling array probe:B

6.5MHz/R13 Dimpling array probe:B
7.5 MHz/L40 Line array probe:B

Image Mutiplying    Factor

3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0
( 6modes)x0.8, x2.0 (display penetration depth)
6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)

E-zoom

magnify 2 times of real time image

Dynamic Range

0~120dB ajustable

Focus Position

1,2,3 and 4-segments dynamic electron focusing

Image Processing:

γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.

According to the user’s pattern style preference, the    parameter will be set up automatically and saved ,Boot default this parameter. This default of    parameter can aslo be modified in the menue.

Frequency Conversion:

2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of    frequency conversion
frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0  MHz/7.5MHz can match high frequency probe

Measuring Function

Distance,circumference/area (method of ellipse, method  of loci), volume, heart rate, gestational weeks (BPD,GS,CRL,FL,HL,OFD,TTD,AC ),  expected date of confinement and fetus weight, etc.

Annotation Function

hospital name, patient’s name, age and gender
64 body marks (with probe’s position);
Full-screen character annotation; Real-time clock    display

Puncture Guide

3.5MHz convex array probe can display puncture guide line in B mode

Gain Control

8 segments TGC and overall gain can be adjusted respectively

Image Polarity

left and right flip, black and white flip, up and down flip

Capacity Cine Loop

real time display 256 consecutive images which are memorized successively

Image Playback

series playback or check one by one

Permanent Storage:

128 images

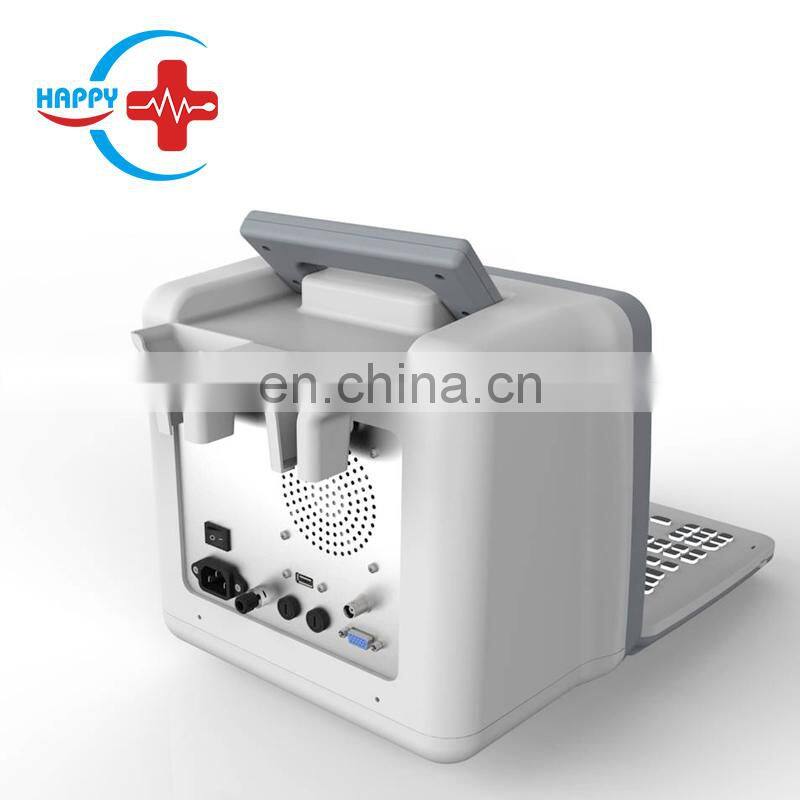

Output Interface

VGA video output offers connection to SVGA color display
PAL video output offers connection to PAL display and printer
video image recorder and image workstation, etc

USB Port

Offers storing images in USB flash disk
