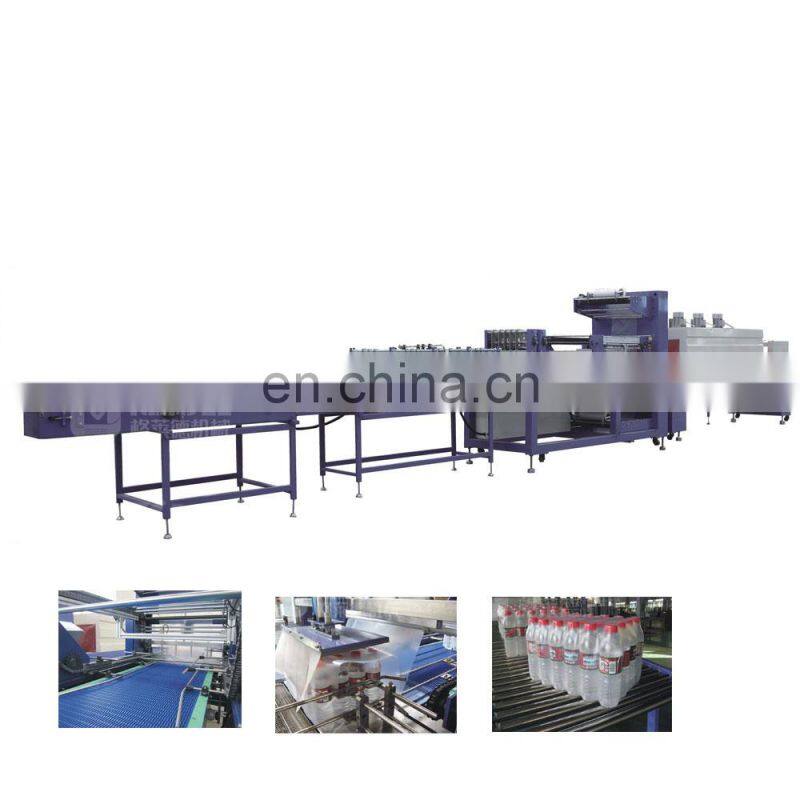

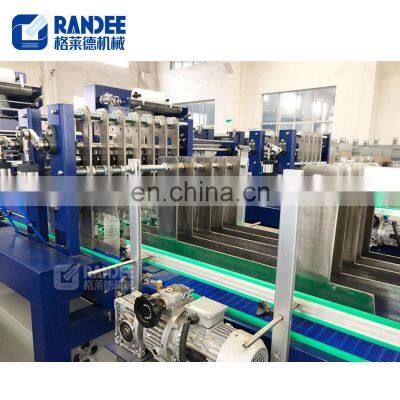

Automatic Linear Type High Speed PE Film Heat Shrink Packaging Machine / Wrapping Machine

Machine description and features:

Packing Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ cooling

1.Feeding: The bottles enter into conveyor trough of sealing machine, on the conveyor trough there are adjustable guardrail. The feeding will stop when the bottle arrived to the set position.

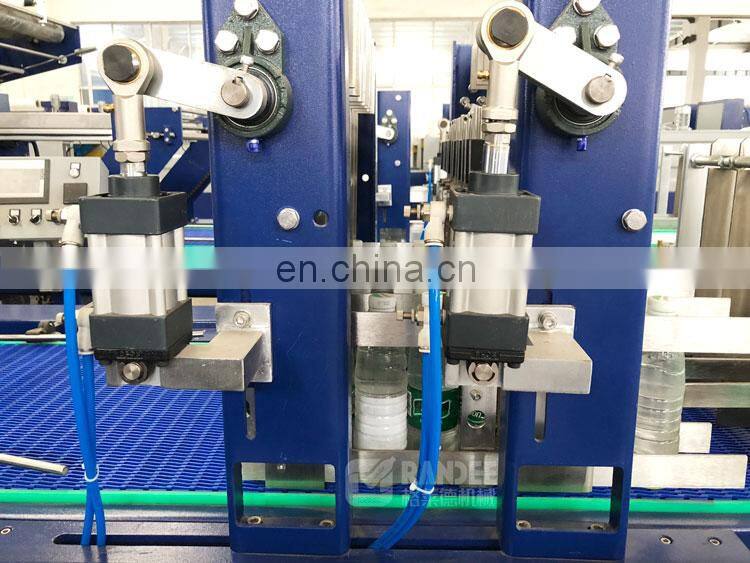

2.Pushing bottles: After the bottles arrived to the pushing platform, the pushing cylinder will work at the same time to push the bottles over the sealing-cutting line.

3.Cover film and sealing: After bottles pushed over the sealing-cutting line, the upper pressing device will press the bottles, this process will protect the bottles falling. After pushing cylinder return, the film sealing cylinder and film cutting cylinder will work together to finish the film covering and sealing process.

4.Shrink: After finishing the film covering the bottles will enter to the shrinking stove.

5.Cooling: After shrinking, the bottles will enter into the cooling device which installed on the end part, then enter into the stock shelf and waiting for stacking.

Main machine:

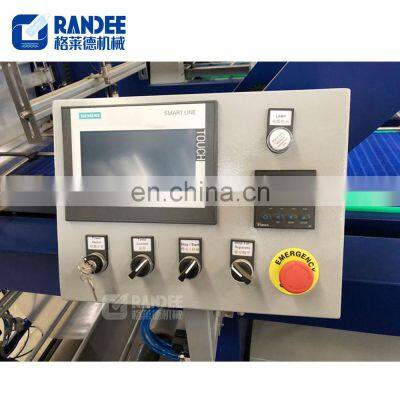

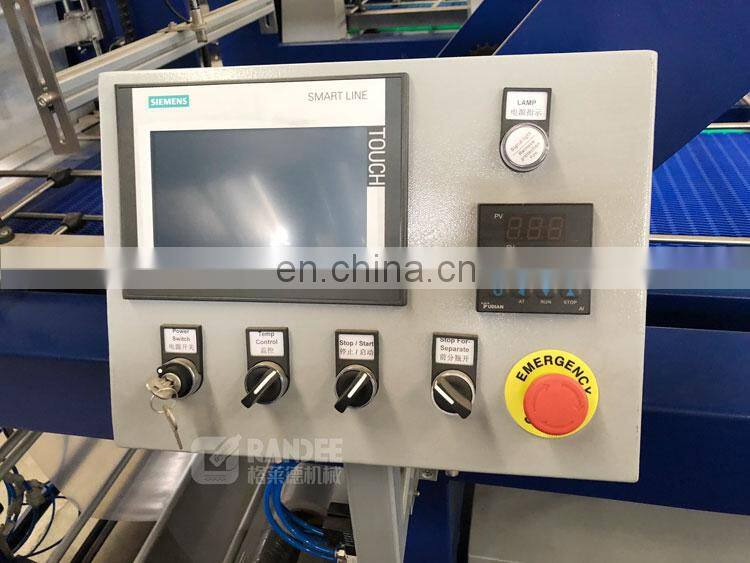

Touch screen

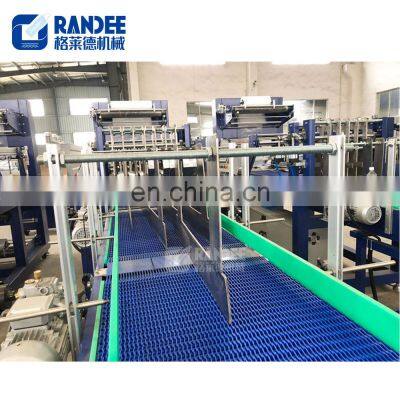

Feeding bottle conveyor belt

Feeding bottle mechanism

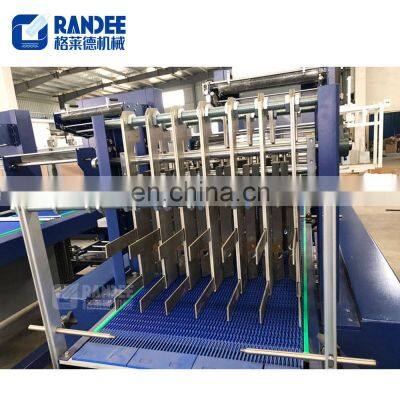

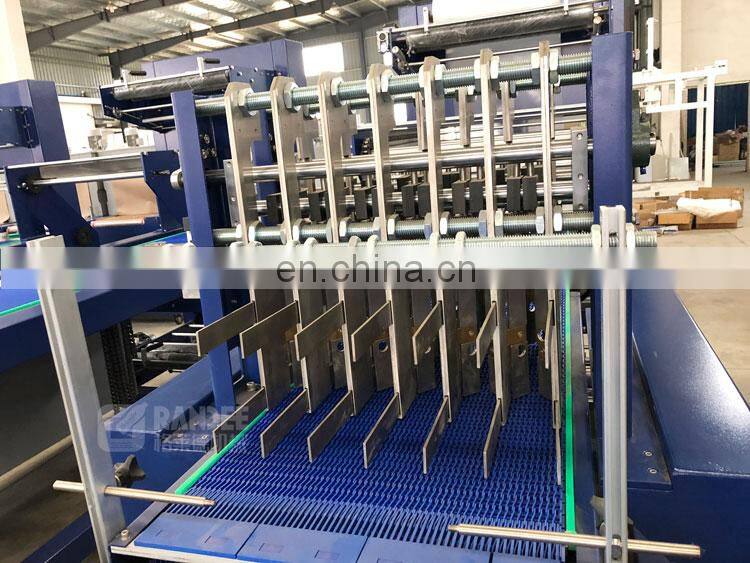

Dividing bottle mechanism

Cutting part

Shrink tunnel

Main technical parameter:

Main configuration

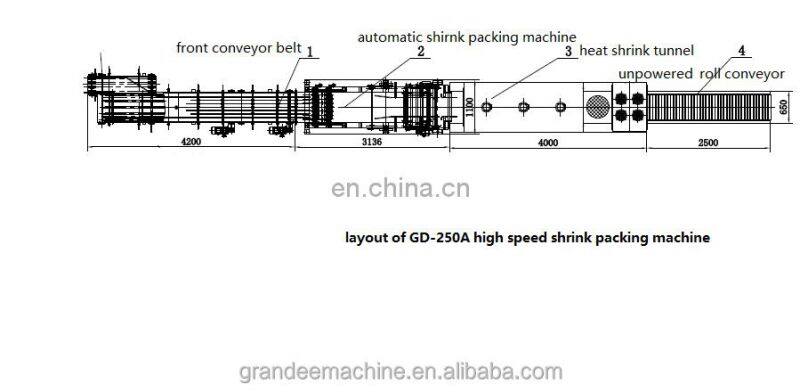

Layout

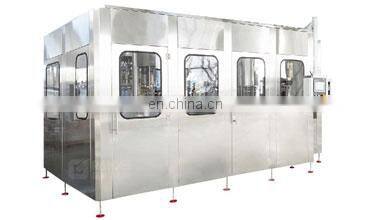

	Water filling machine The automatic monoblock water machine is mainly used for producing PET bottled mineral water, pure water and non-carbonated drink, and washing,filling,screwing is integrated in one unit, short the water contacting with outside, improve the sanitation condition,production capacity and economic benefit.

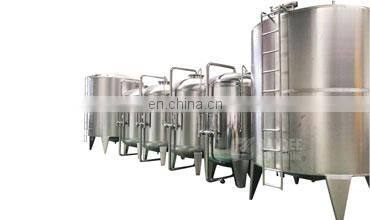

RO System Besides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr. We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc

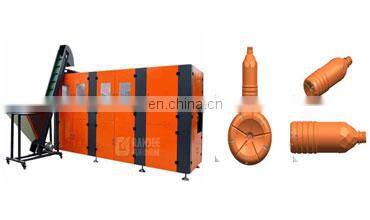

	Blowing Machine with different options: 1. Semi automatic Blowing Machine for 800BPH-2000BPH from 0.2-2.5L bottle with 2 or 4 cavities. 2. Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle.

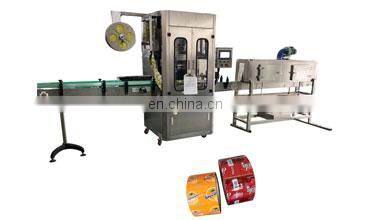

Automatic PVC sleeve shrink labeling machine Capacity: 100-350bottles/min can be chosen Label material: PVC PET OPS, etc Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular Label length: 30~250mm(max) Label thickness: 0.03~0.13mm

Grandee Machinery is your trustworthy supplier

Q1: How to find suitable machine or complete beverage production line?
A1:  Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.

Q2: Are you a trading company or a manufactory?

A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .

Q3: Do you have technical support after we purchased your machines?

A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.

Q4: If you buy our machines, can you offer us wear-out spare pats?

A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
