Reverse Osmosis New Package Drinking Water Filter Industrial Water Purifying System Treatment Process Plant

Water treatment system:

Material: SS304/316

Source of water

Capacity

Water pump

Filter media

RO membrance

River/well/spring/lake/sea/tap water/underground water / mountain water

2-100T/H

CNP

Grundfos

Quartz sand/active carbon/sodium ion/hollow fiber filter

Filmtec dow/USA hydranautics/USA

Naturally oxygen-rich water

Pure water

RO water

Mineral water

Spring water

Ultrafiltration

Reverse osmosis

Reverse osmosis

Ultrafiltration

Ultrafiltration

Automatic control system

Float ball/solenoid valve/pneumatic butterfly valve

Filling water

We can make water purification system as per difference water quality

Types of water

Mineral water pure water spring water RO water oxygen-enriched water alkaline water,etc

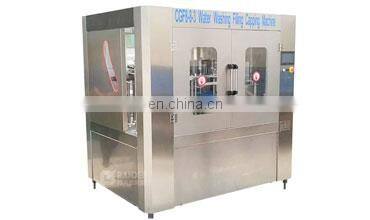

Small bottle water filling machine

Capacity: 2000BPH for 500ml bottle

Bottle range: 200ml-2250ml

Bottle dimater: ≤340mm

Bottle height: ≤110mm

Bottle material: PET bottle

Bottle shape: round / flat / square bottle

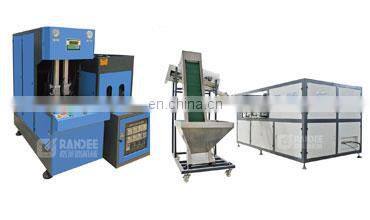

Blowing Machine with different options:

1. Semiautomatic Blowing Machine for 800BPH-2000bph from  0.2-2.5L bottle  with 2 or 4 cavities.

2. Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle.

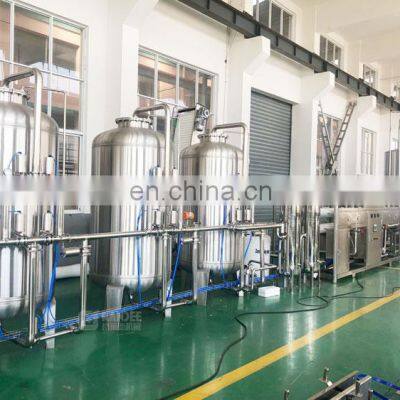

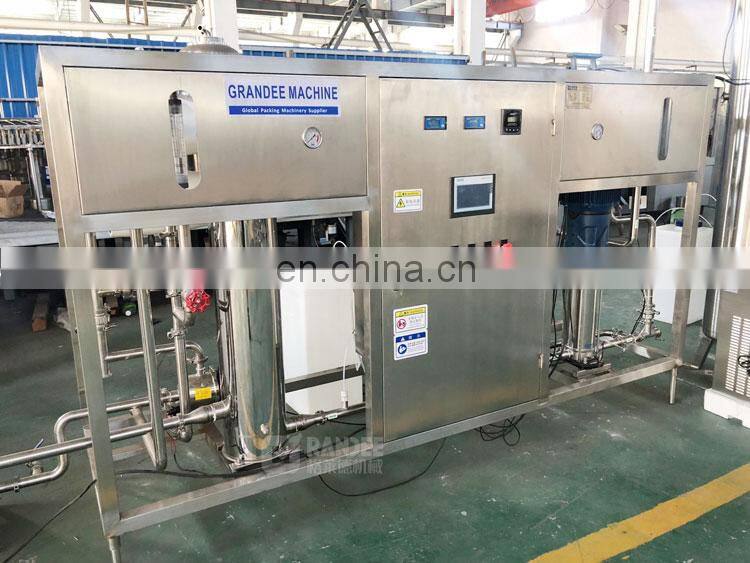

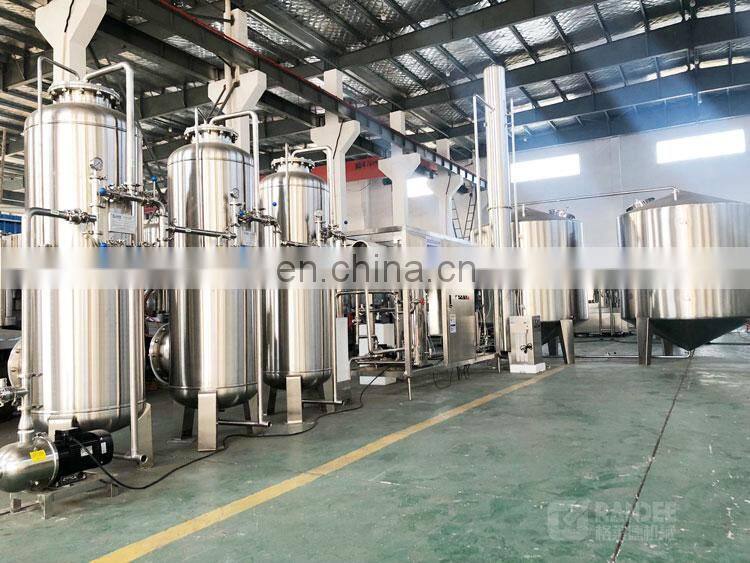

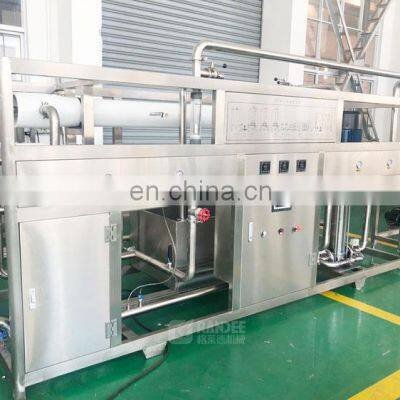

RO System

Besides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department.

This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 100000L/hr.

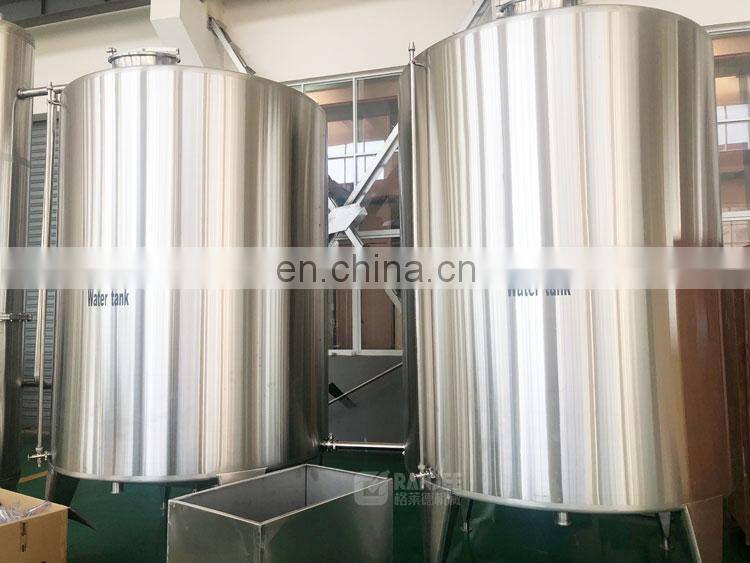

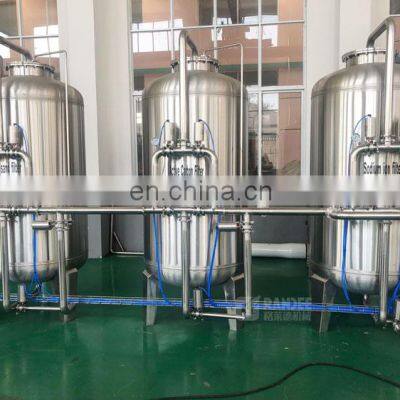

This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank.

This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.

We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc

Semiautomatic Labeling Machine:

1. Steam Heating Shrink Tunnel can be applied to different and irregular bottle types, e.g. round,square and flat bottles.

It adopts seamless tube, the distribution of low-pressure steam drum and the spout of steam use the separation style which make the tunnel smooth.

2. Steam generator the water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service.

 A floating ball for liquid level is fixed in the water tank to automatically control the water inlet.

Working system is all automatically controlled.After connecting the water supply and power supple for 5 minutes or so,it can output the steam continuously with high working efficiency.

Semiautomatic Shrink Packing Machine

Flow: Putting on bottles by manual→ pushing bottles→ film covering and sealing→ shrinking→ cooling

Capacity: 3-5packages/min

Max. Packing size: 450*400*330mm

Min. Packing size:250*60*140mm

Bottle diameter: 50mm-110mm

Power: 20kw/12kw
