Universal Night Vision Automatic Assist Intelligent Dynamic Track Parking Line Car Reversing Wide Angle Rear View Camera

Notes:
*This AISARCH backup camera TZGJ001 is perfect for REAR,FRONT and SIDE VIEW. Monitor/LCD/Screen/Display/Radio not included.
*If connect this AISARCH car backup camera TZGJ001 to a FACTORY RADIO, please separately order a suited Harness & Programmer to complete installation, because different RADIO need different Harness & Programmer to work together.
* Mount the camera on the panel and route the wire to inside (DO NOT pinch the wire/cable when route the wire, pinched wire will damage the camera, drill a hole to allow the wire go through if needed).
* Apply electrical tape for the joint of the red power wires and RCA wires, and use zip ties to fasten the wire on your vehicle.
*If your head unit with a reverse triggering wire, normally it is a pink color wire, please find it, and connect it with the extension wire's triggering wire wel (small short red wire next to the RCA/AV connector).
*If the image on the screen is blurry, flickering/flash or has horizontal or vertical strip, please check all your power and video connections. Possibly use a different ground point(iron part) and wrap power and video plugs with electrical tape to insulate from interference. If it still with blurry, flickering/flash or has horizontal or vertical strip, please order a 12V DC power adapter filter rectifier to solve it, especially need for Dodge VW AUDI BMW Mercedes Benz brands vehicle.
*Before you routing, if there is no image on the screen, other than check the camera, please check display setting as well. You can use other device with RCA connector, such as TV to check if the camera works.
*if you want to adjust the camera view angle, please choose one suitable size gasket/shim(there are 3 different size gaskets/shims for option). And apply silicon to seal it if needed.
*For camera connection: connect the camera's male plug to female connector of the extension wire/cable, make sure the arrows to align. Also make sure to push the camera's male plug tightly into the female connector of the extension wire.
Useful Wire/Loop Control Design:

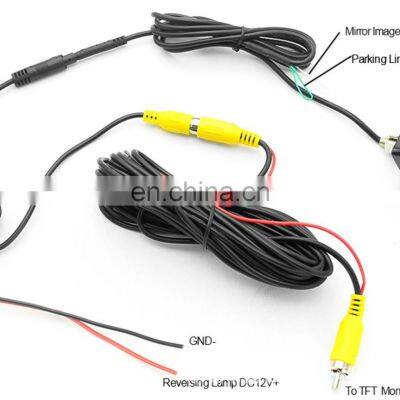

Reverse cameraTZJG001 with 3 small wires/Loops (White,Green and Purple color).
*If you need a rear view camera with hanging mounting installation, please keep the purple wire/loop(hanging mounting is a great design for Sedan, SUV).
*If you need a rear view camera with sitting mounting installation, just cut the purple loop(sitting mounting is a great design for pickup trucks, RVs and VANs)
*If you need the guide line, please keep the green wire/loop; If no need it ,just cut it; If you need a front view camera, please cut the white wire/loop;
*If you need a front view camera without guide line, please cut both white and green wire/loop;If for a side view camera,ONLY can installed on a horizontal surface(under left or right mirror),NOT a round,slant or perpendicular surface:look backward,keep the white wire/loop;look forward,cut the white wire/loop.

Small Size Housing and Mini 4PIN Connector:

AISARCH rear view camera TZJG001 with small size:1.06*1.06*0.827 inch .Smaller 4PIN connector for convenient installation, Ours is 5MM/0.197in,the most of others are 12MM/0.473in. 7MM/0.276in difference!

High Resolution and Great Night Vision:

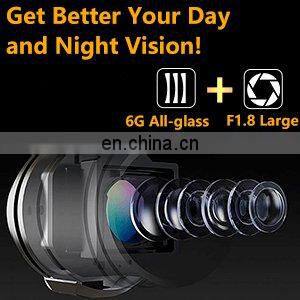

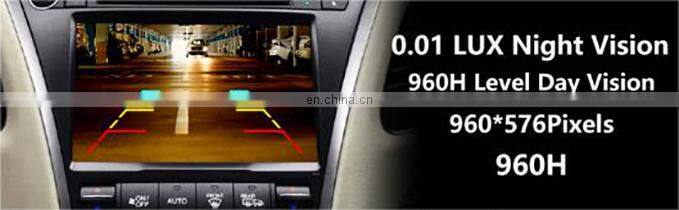

AISARCH reverse camera TZJG001 built-in the latest 1/2.7inches high sensitive CMOS and Digital high-definition image processor, it is maximum Pixels 1280*720, and effective 960*576 pixels at 25 fps,also with grade A 6G All-glass,F1.8 large aperture lens,delivers great sharp and clear image in day and night. The TVL of WD-011 is up to 900TVL. For the different output format, the rear view camera WD-011 output is 600TVL, but it is much more clear than the other brand cameras whose original resolution is 420TVL,480TVL and 520TVL. It support great night vision function,the minimum illumination is 0.01Lux,will give you a clear view at night!

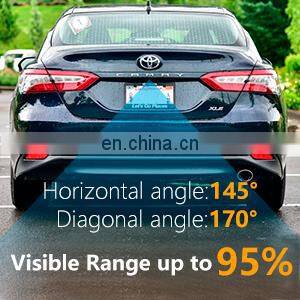

Super Wide View Angle:

AISARCH reverse camera TZJG001 built-in a Grade A 6G All-glass and F1.8 large aperture lens, the lens' horizontal angle is 145 degrees(visible range up to 95%), thanks to the 145° horizontal view field, you'll be able to see far more than you could in the rear view mirrors alone. It helps you to decrease blind zone accidents very well.

Adjustable View Angle:

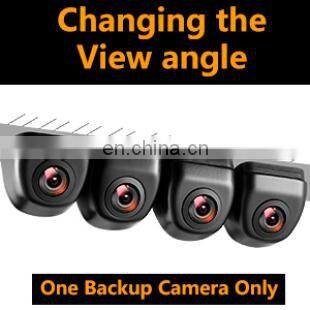

AISARCH rear view camera TZJG001 with 3pcs different size gaskets/shims,when you need to adjust the view angle,please choose one suitable size gasket.Different mounting height have different view angle,after your installation, please check if the view angle is great,if not good,please choose a suitable size gasket/shim to solve it.

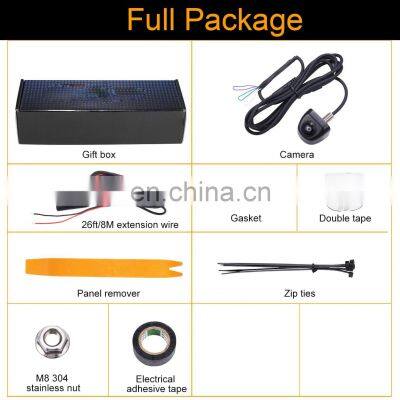

Easy Installation:

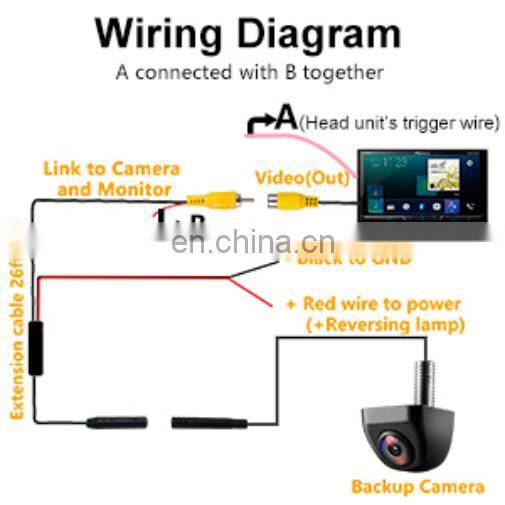

1.Find a a flat surface(parallel or perpendicular to ground) for mounting camera,then secure the nuts and bolts in place.

2.Connect the power wire of backup camera to the power of reversing light.

3.Connect the 26ft extension wire of backup camera to the head unit of vehicle.

NOTE:

1).Please test the backup camera before routing 26ft extension wire from back to front.

2).If your head unit without A trigger wire, then no need to use B trigger wire
