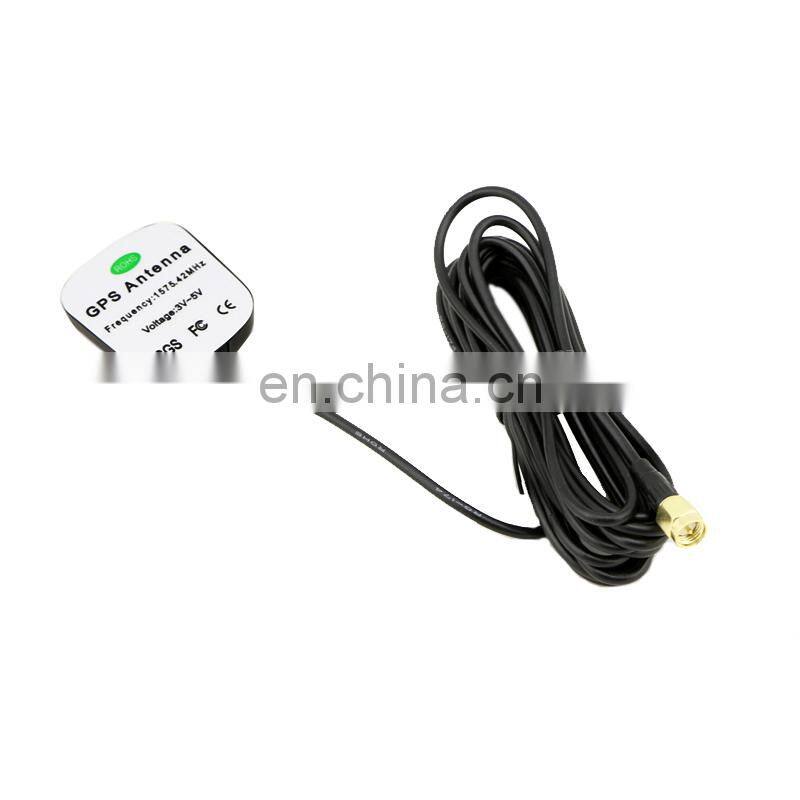

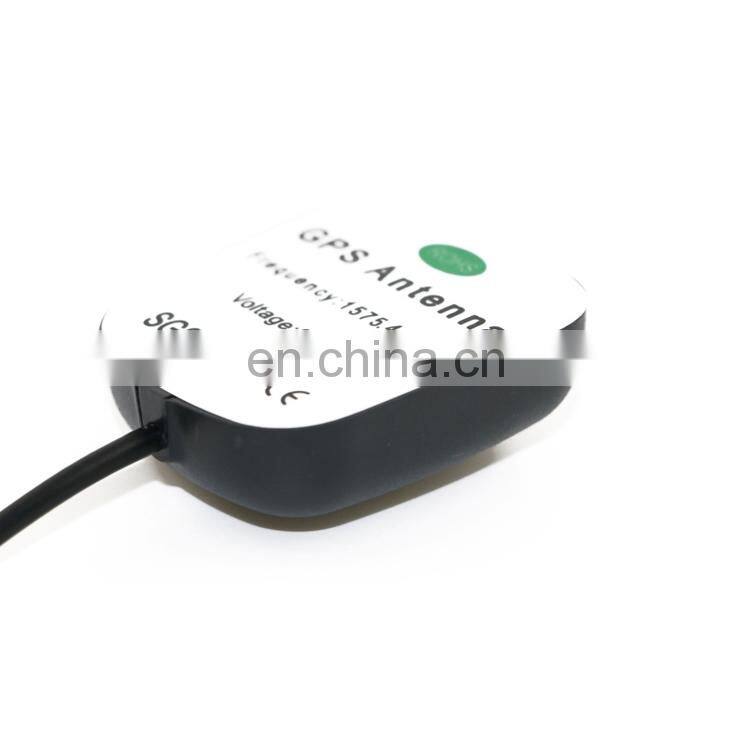

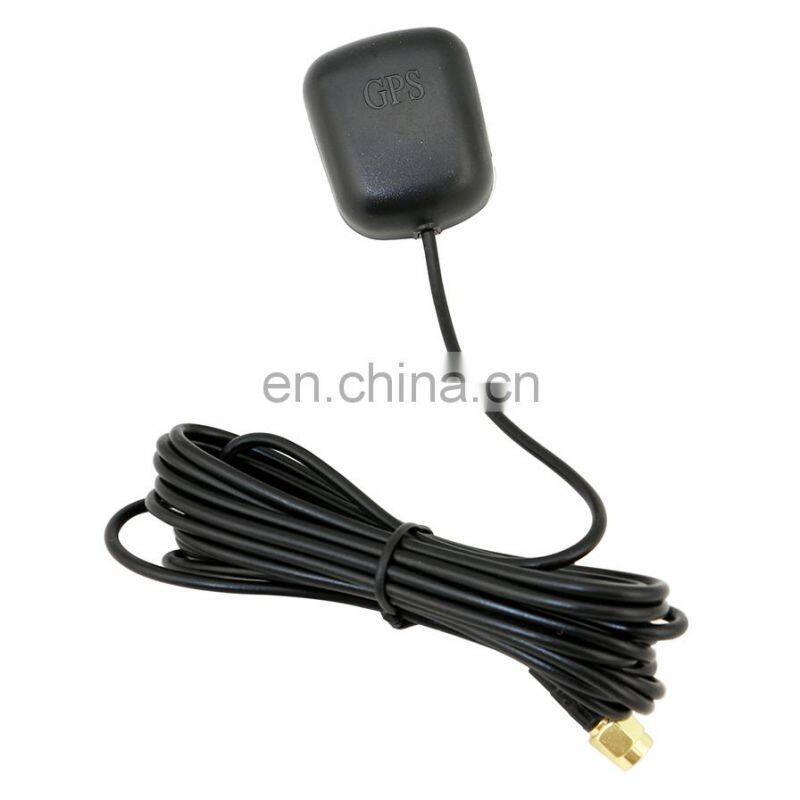

GPS Glonass Magnetic Base Car 1575.42mhz External Active GPS Antenna DIY
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Waterproof Active GPS Navigation Antenna Patch Antenna Manufacturer 1575.42 MHz
-
1575.42 MHz 28dBi External Car Active GPS Antenna MCX/ MMCX straight/ right-angled connector
-
15dBi Sucker LTE 4G Antenna with 3 Meters RG174 Cable SMA Connector
-
2400-2500/5150-5850MHz 2.4G 5.8G Antenna, 2.4GHz+5.8GHz Dual Band Router WiFi Antenna
-
2.4~2.5GHz 2dBi NB-IoT Router WiFi 2.4G Antenna, SMA Male Rubber 850/900/1800/1900MHz Quad-band 2G GSM Antenna
-
Internal FPC 4G GPS Combo Antenna, Part Number SPA7
Product Description
Description
Model No. | GPS-A | |
Cable | RG174, Length=3M or customized | |
Cable Gain | ±2dBi | |
Dielectric | ||
Center Frequency | 1575.42±3 MHz | |
V.S.W.R | 2:1 | |
Band Width | ±5 MHz | |
Impendence | 50Ω | |
Peak Gain | >3dBic Based on 7×7cm ground plane | |
Gain Coverage | >-4dBic at -90°<0<+90°(over 75% Volume) | |
Polarization | RHCP | |
LNA/Filter | ||
LNA Gain Without Cable | 28dB Typical | |
Noise Figure | 2.0dB | |
Filter Out Band Attenuation | (f0=1575.42MHz) | |
7dB Min f0+/-20MHz; 20dB Min f0+/-50MHz; 30dB Min f0+/-100MHz | ||
V.S.W.R | <2.0 | |
DC Voltage | 3V to 5V | |
DC current | 7-10MA | |
Weight | 60 gram | |
Size | 45X38X15mm | |
Cable Type | RG174 Cable, 3 Meters (customized) | |
Kindly Reminder:
-For your customized requirements on the GPS receiver antenna, like frequency ranges, connector type,cable type and length, ect, please kindly contact us before purchasing.
The GPS antenna options:
-Frequency: GPS 1575.42MHz (with GLONASS, BEIDOU frequencies optional)
-Connector Type: SMA Male (with Fakra, MCX, MMCX, SMB, ect optional)
-Magnetic or Adhesive Mounting
-IP65 Strong Shield (with IP67 Waterproof Shield Optional)
-Cable Length: 3 meter by default (customized)
-Cable Type: RG174 (with RG316, RG58, ect optional)
Applications:
GPS Navigation, Positioning for Automobile, Car, Bus, Trailer, ect;
Car DVD Navigation, Night Vision Camera, Dash Camera, Car DVR, Anti-theft, ect;
GPS Positioning for M2M Applications, Environmental Monitoring, Bridge Mapping, ect.
Excellent signal reception with this ultra small GPS external antenna and built in low noise amplifier (LNA). This GPS antenna provides 28 dB of gain with its built in LNA. The industry standard SMA connector will work with most GPS systems and the magnetic base allows you to conveniently attach it to your objects.
Highlights:
Active GPS antenna with SMA male connector;
Magnetic Mounting (Please contact us for the Adhesive mounting option);
CE RoHS compliant;
Lightweight in size 45x38x15mm, weight 60g.
Cable length: 3 meters;
DC Voltage: 3V to 5V;
Plug and Play.
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
