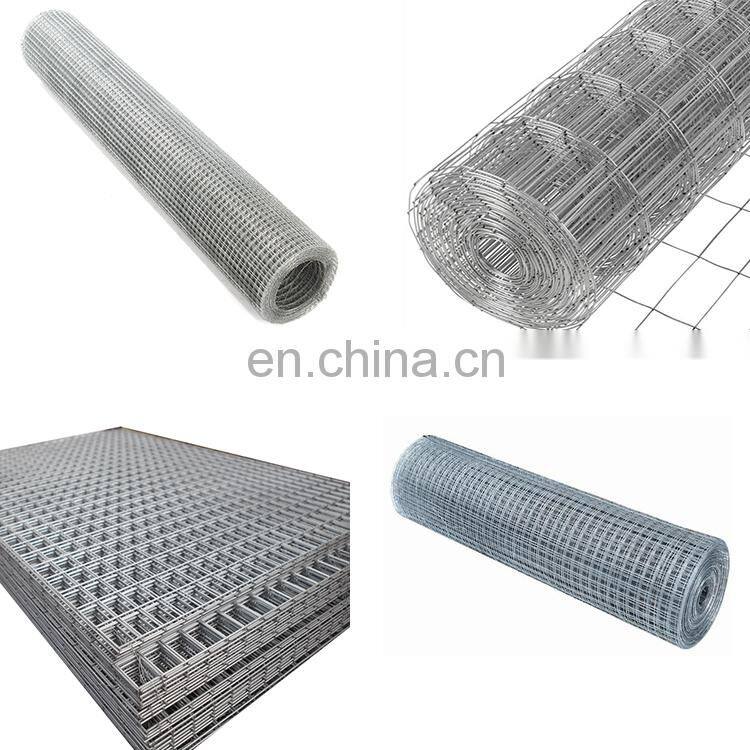

WELDED WIRE MESH

Dongjie Wire Mesh is the excellent manufacturer of welded wire mesh in China. Our dedication towards satisfying the customer fuels our focus on becoming your primary manufacturing partner. Specializing in small to large production runs, our manufacturing flexibility remains unmatched in the welded wire mesh industry. Dongjie Wire's manufacturing culture ensures that our customers always receive the highest quality product with an unbeatable value.

Product Description

Welded wire mesh is constructed with two orthogonal wires that are joined together at their intersections using a resistance welding process to form a grid. The line wires of the grid are guided through the welder using a pattern board. The machine drops cross wires into place and fuses them together to create the two distinctive planes that form welded wire mesh.

Below in the next several sections of this page, you will find more detailed information on the basics of welded wire mesh and topics to take into consideration when ordering your specifications. Our knowledgeable staff is available to assist you with any questions you may have.

Materials for Welded Wire Mesh

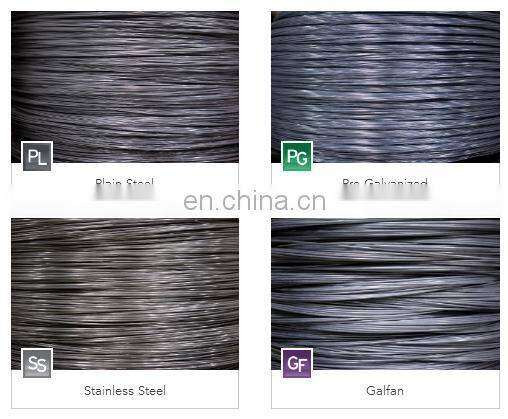

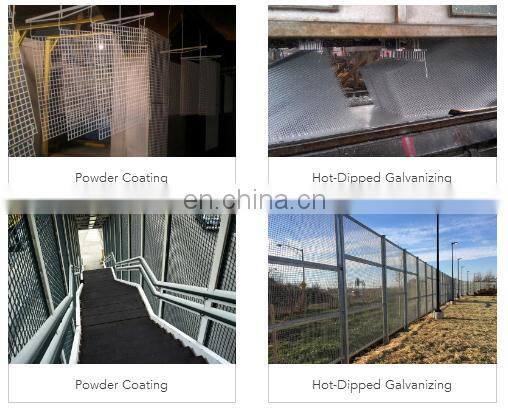

Raw Materials: Welded wire mesh is utilized in a variety of settings that may require a high degree of performance in strength or corrosion resistance. Because of that, Banker Wire offers welded wire mesh in plain steel, pre-galvanized, stainless steel, and galfan.	Secondary Finishes: At Dongjie Wire Mesh, all of the products that we offer are manufactured in a bare, mill-finished condition. A secondary finish may be desired to protect the welded wire mesh, or to enhance a specific aesthetic. For welded wire mesh we can facilitate powder-coating and hot-dipped galvanizing if desired.

Welded Wire Spacing

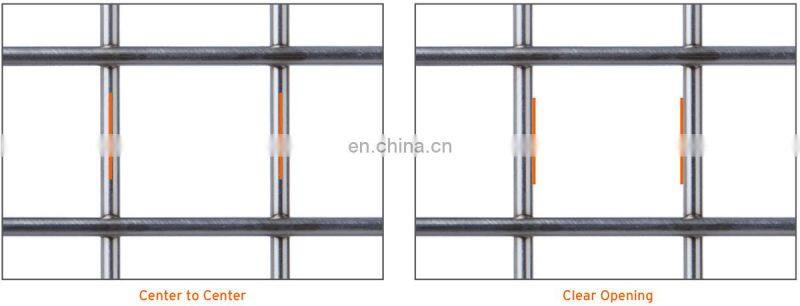

Welded wire mesh spacing can be expressed by measuring from the center of two wires (Center to Center) or by measuring the opening between two wires (Clear Opening). We can manufacture standard and custom welded wire mesh with a spacing range of a minimum of 1” to as large as may be required.

Welded Wire Diameter

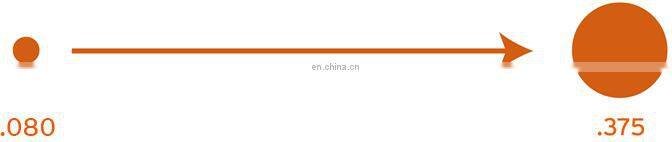

Dongjie Wire manufactures welded wire mesh with a wide variety of wire diameters ranging from .080” to .375”. For accuracy, the wire diameter should be expressed in decimal format and not expressed as a gauge.

	• Easily workable • Solid construction • Extremely versatile • Easy to install • Lightweight • Low resistance to wind loads • Easily cut to fit • Available in many styles and materials
• Fencing • Baskets • Grills • Grates • Racks • Aggregate screening • Test sieve cloth • Water screens • Guard screens • Detention and security

Types of Welded Wire Mesh Edge

Trimmed: When ordering welded wire mesh with Trimmed Edges, wire overhang will be 1/8" or less on three sides with Standard Heat on the fourth side. The final spacing around the perimeter may be reduced and balanced when necessary to stay within the dimension ordered.
Untrimmed: When ordering standard Untrimmed Edges, the welded wire mesh will have approximately full tails. This means that the outer wire overhang will be approximately equal to that of the wire mesh spacing, with Standard Heat on the back side. The tail length can also be customized to suite applications as needed.

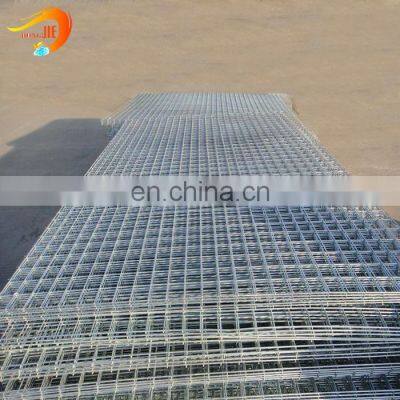

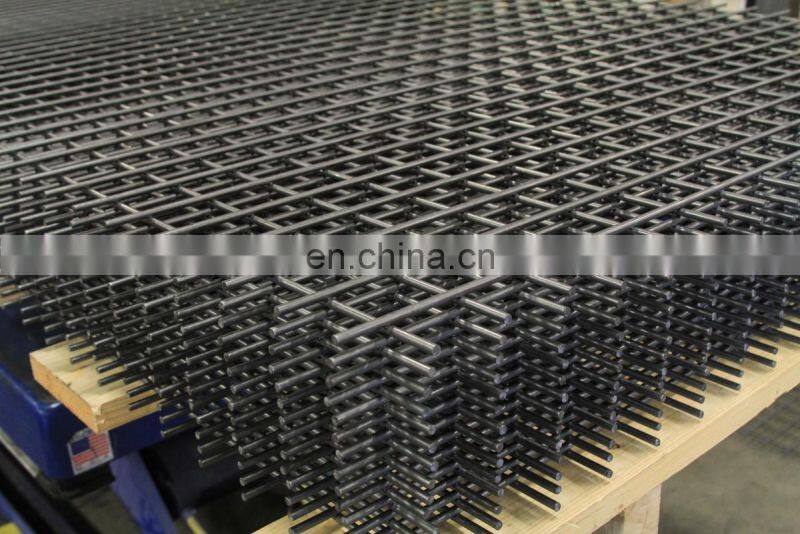

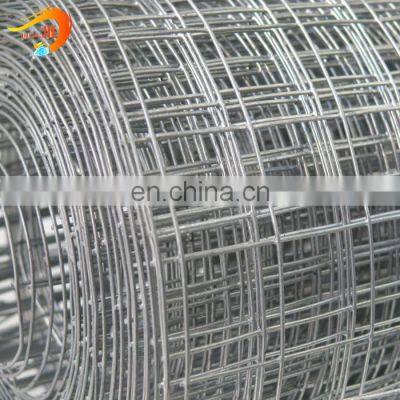

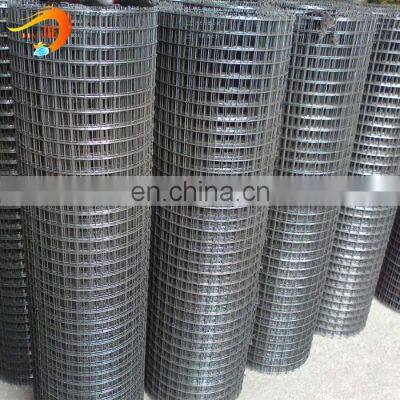

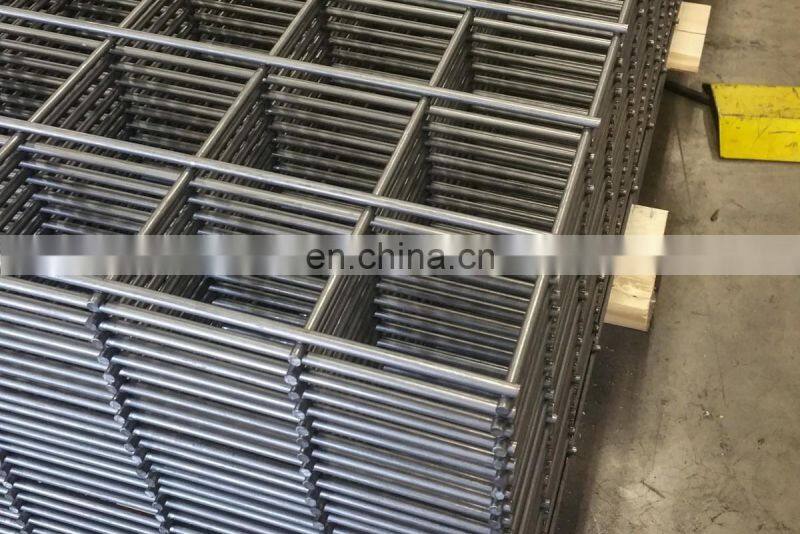

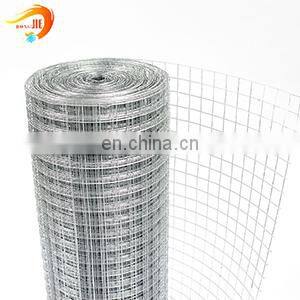

Detail Images

Packing & Delivery

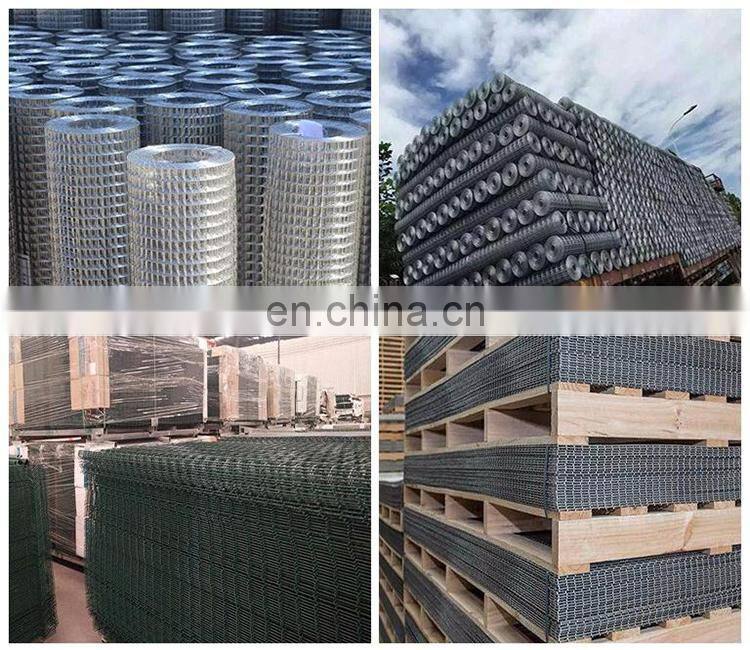

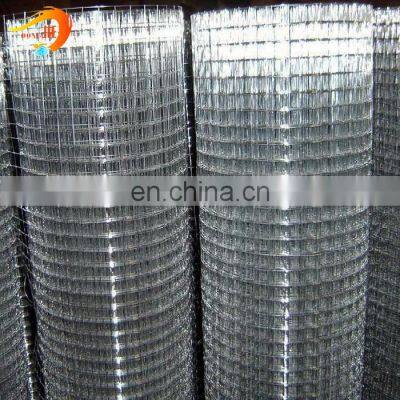

Welded Wire Mesh are shipped in rolls and panels.

Our Service

1. Small sample is free.

2. According to the different customer need to customize logo.

3. According to the color of the customers like to customize.

4. We have full stock, and can deliver within short time.

5. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

We have rich experience of design, manufacture and sell wire mesh products, we cherish every order from our honor.

Our Certifications

FAQ

1. How to make an inquiry of Welded Wire Mesh?

You need to provide material, wire diameter, size and the quantity to ask an offer. You can also indicate if you have any special requirement .

2. Could you provide free sample?

Yes, we can provide free sample in half A4 size together with our catalogue. But the courier charge will on your side. We'll send back the courier charge if you make an order.

3. How is your Payment Term?

Generally, our payment term is T/T 30% in advance and the balance 70% against the copy of B/L. Other payment term we can also discuss.

4. How is your delivery time?

We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material.

We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.

If you need to consult the price, please feel free contact us.
