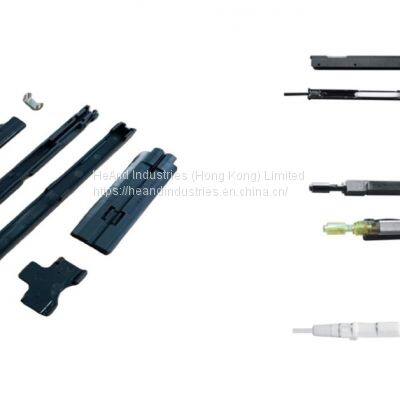

0.15dB SM/MM 250/900μm Optical Fiber Mechanical Splice

1. Descriptions

Mechanical Splice, namely Quick Splice, is a fast connection method of Optical Fiber, very easily installable and re-usable, no need splicing machine or adhesive, mainly used for drop cable quick repair

2. Features

Proven mechanical splice technology, accurate Optical Fiber alignment

A-level Zirconia ceramic V-groove design, high Optical Fiber docking accuracy, low Insertion Loss of 0.15 dB

Precise metal alloy components coaxial autocollimator on the core, durable connection

Low thermal expansion/contraction coefficient core material , strong environmental adaptability

High tensile strength ≥ 50N

Simple operation - without fusion splicing, fast installation - 10s splicing, high success rate - 99%

Applicable Optical Fiber Cable 2.0mm, 3.0mm, 2.0*3.0mm

Suitable Optical Fiber 250/900μm SM/MM

Different models for different scenarios, Black or White color usually

Protection level IP 54

Long life span ≥ 10 years, simple and convenient later maintenance

Product warranty 12 month, no quality worry

3. Applications

FTTX deployment

Optical Fiber Cable repair

Data communication

4. Specifications

Insertion loss: average ≤ 0.15dB, max. ≤ 0.20dB

Return loss: ≥ 50dB

Tensile strength: ≥ 50N

Working temperature: -40°C～+85 °C

Repeated assembly times: ≥ 10

Splice size: 38×6.4×3.9 mm

Protector size: 90×8.6×7.4 mm

Package: 50 pcs/box

5. Advantages & disadvantages

Advantages: price just 30% - 40% of top quality Optical Fiber Mechanical Splice like 3M, Fujikura,  Corning, etc.

Disadvantages: Insertion loss (IL) ≤ 0.15dB, a little higher than top quality, whose insertion loss (IL) ≤ 0.10dB, but still lower than 0.20dB ~ 0.30dB of many other suppliers

Conclusion: economic product
