Home > Products > stainless steel casters > Wet Or Corrosive Environment Use Heavy Duty SS304 Caster 100/125/150/200mm Stainless Steel Castors Wheels

Wet Or Corrosive Environment Use Heavy Duty SS304 Caster 100/125/150/200mm Stainless Steel Castors Wheels

FOB Price

US$ 19 - 25 / Piece

200 Pieces(Min. Order)

Port shenzhen
Payment TermsT/T L/C
Delivery Detail20 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Heavy duty stainless steel caster wheels		Place of Origin	China
Model Number	4-5U01R-401V

Product Description

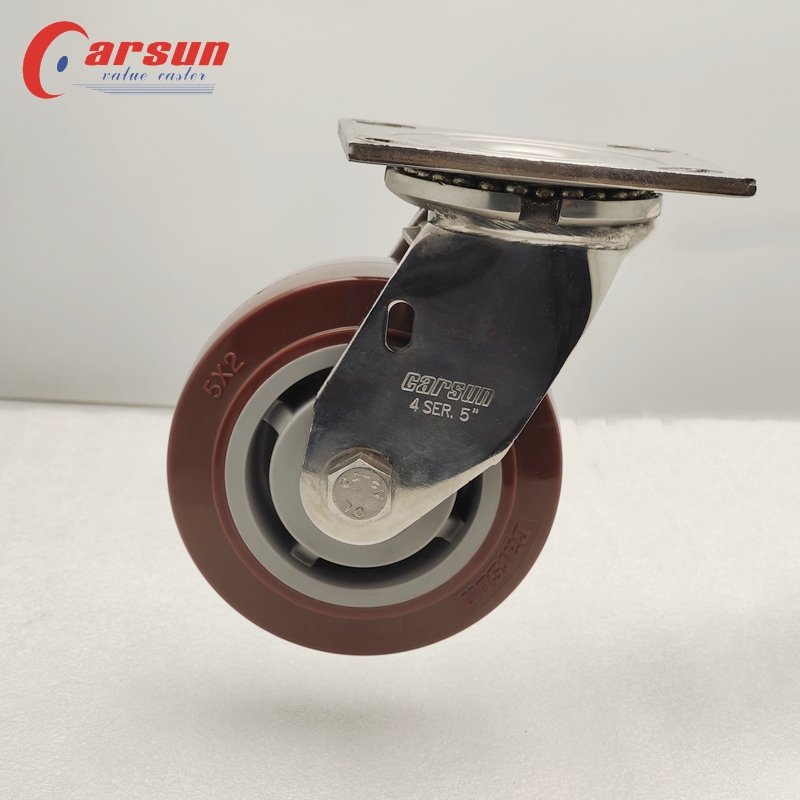

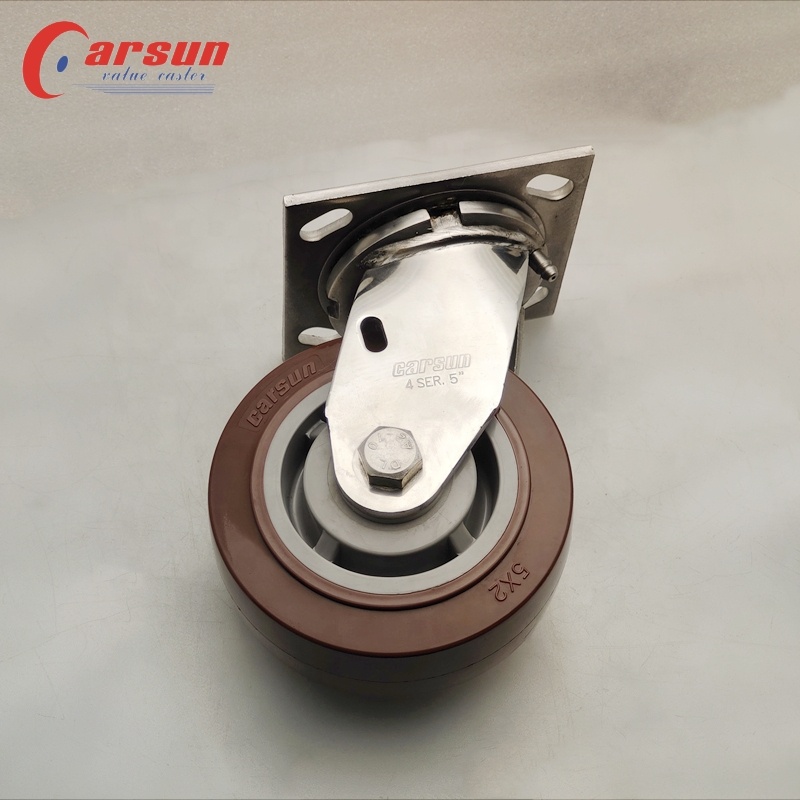

4-5U01S-401V 5-inch 304 stainless steel swivel polyurethane caster wheel

    stainless steel Heavy Industrial Castor red PU swivel caster wheels for without brake
Customizable 4inch, 6inch, 8inch casters
    Can customize stainless steel TPR casters, nylon casters, heat-resistant casters

Note: due to the shooting light and angle, the product picture may have color difference from the physical product. Please refer to the received physical product. Thank you!

FEATURES AT A GLANCE

   We are a professional manufacturer of industrial caster wheels. We can produce different types of casters according to your
requirements.
 please send the inquiry if interested.
  Click the picture on the right

Support Description: The thickness of top plate is 6mm. The top plate and rotary table are steel castings. Plane supporting structure is adopted, which is durable, replaceable and convenient for maintenance.

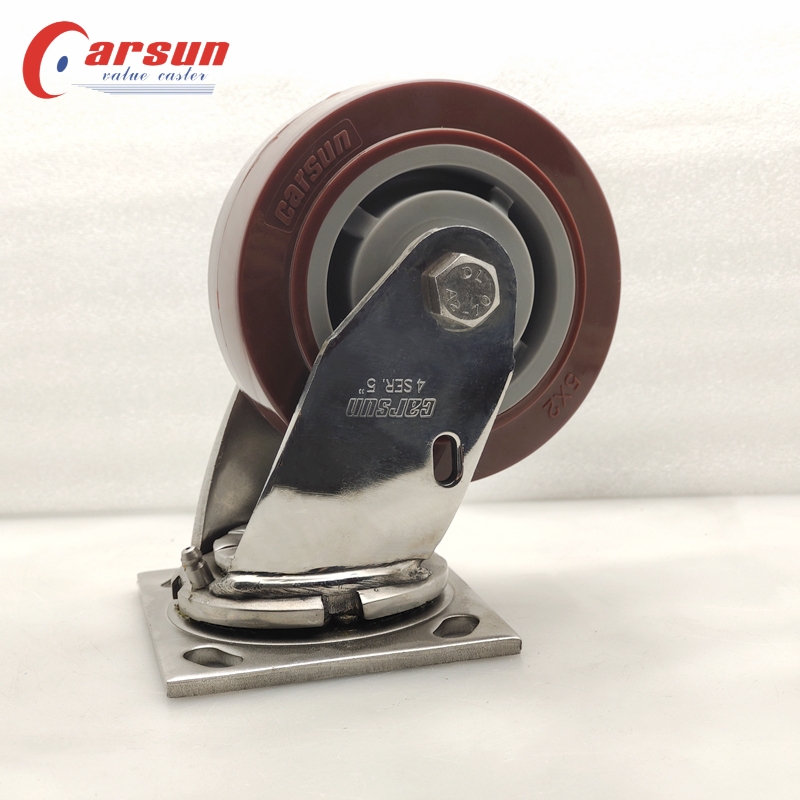

Right elevation

Left elevation

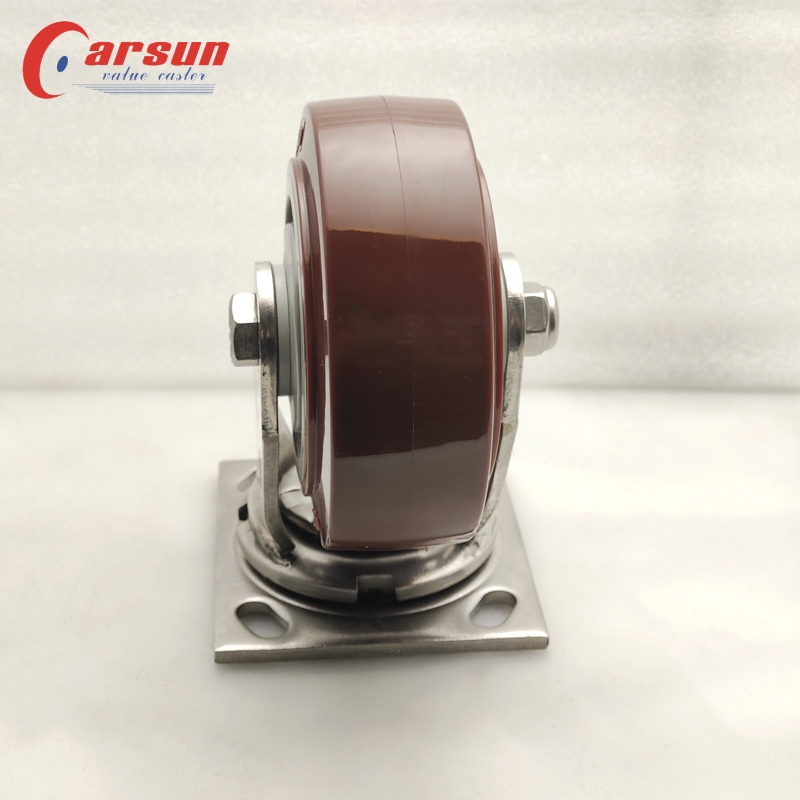

Front elevation

00:02

00:28

PRODUCT SPECIFICATIONS

Wheel Diameter (mm)	Tread width (mm)	Capacity per caster (kg)	Wheel	Bearing	Model number		Load Height (mm)	SwiVel Radius (mm)
					SwiVel	Rigid
125	51	180	Performa Rubbcr	SS Double Ball	4-5U01S-301X	4-5UO1R-301X	165	108
				Delrin+SS Tubing	4-5U01S-301V	4-5U01R-301V
		340	Polyurethane	SS Double Ball	4-5U01S-401X	4-5UO1R-401X
				Delrin+SS Tubing	4-5U01S-401V	4-5UO1R-401V
		375	Modified Nylon	SS Double Ball	4-5U01S-202X	4-5UO1R-202X
				Delrin+SSTubing	4-5U01S-202V	4-5U01R-202V
			White Nylon	SS Double Ball	4-5U01S-201X	4-5U01R-201X
				Delrin+SS Tubing	4-5U01S-201V	4-5U01R-201V
		294	Polyolefin	SS Double Ball	4-5U01S-101X	4-5U01R-101X
				Delrin+SS Tubing	4-5U01S-101V	4-5U01R-101V
		450	Thermo	SS Double Ball	4-5U01S-551X	4-5UO1R-551X
				Delrin+SS Tubing	4-5U01S-551V	4-5UO1R-551V

PRODUCT CONFIGURATION

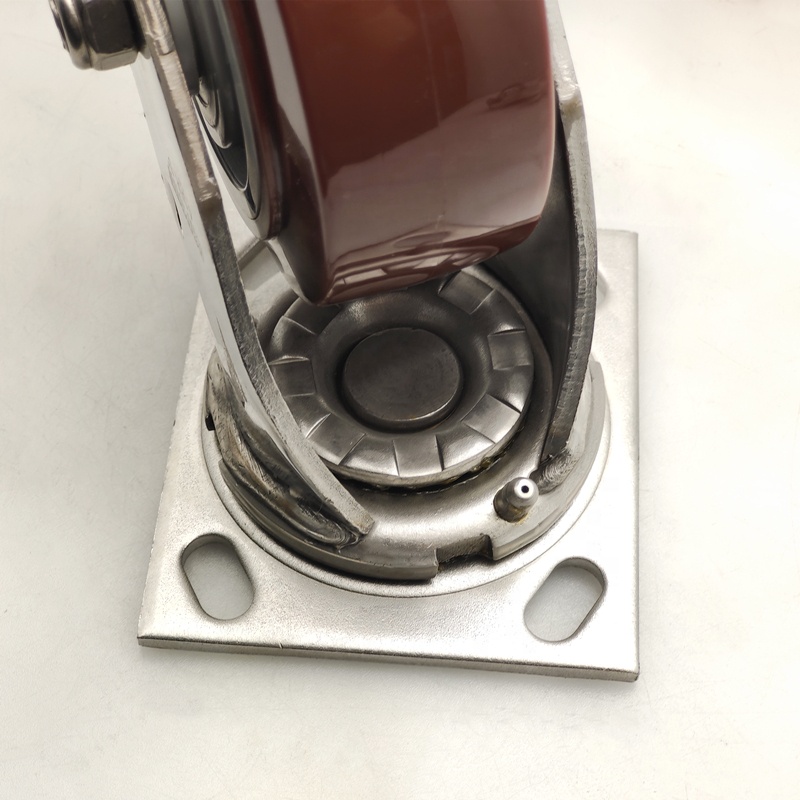

6mm thickened top plate and Stainless steel bracket

   Built in stainless steel sleeve + Delrin bearing

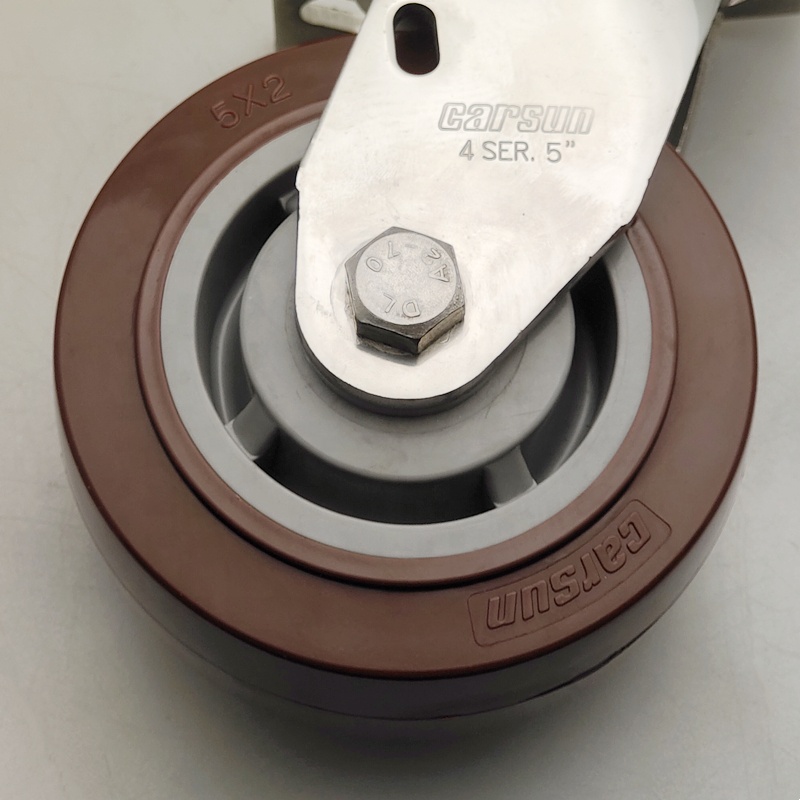

5 inch red polyurethane wheel

Successful Project

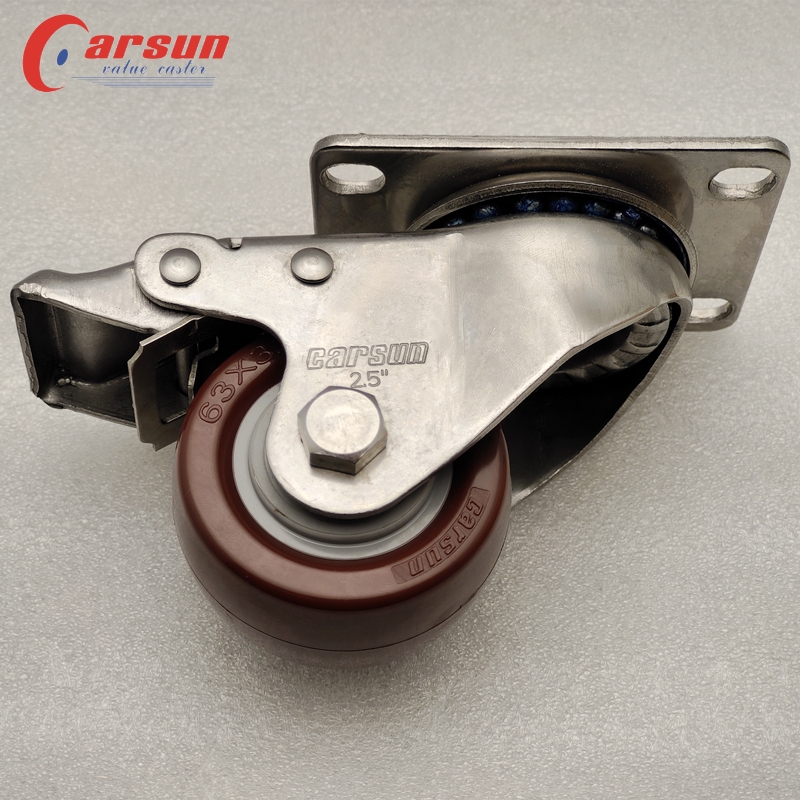

2.5 inch red polyurethane stainless steel caster with stainless steel brake

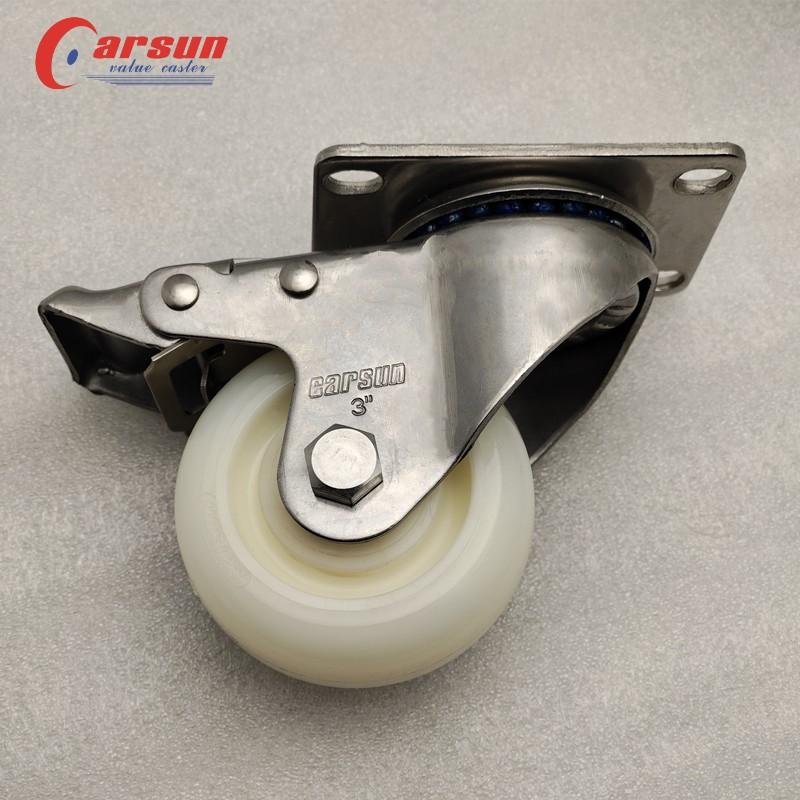

3 inch White Nylon stainless steel caster with stainless steel brake

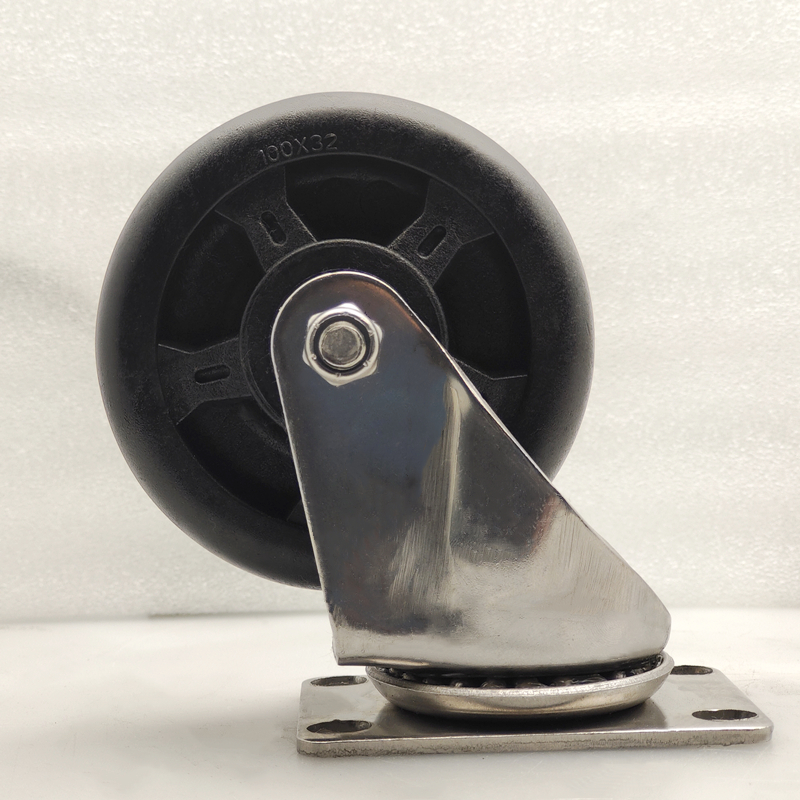

4-inch black nylon stainless steel caster heat resistant caster without brake

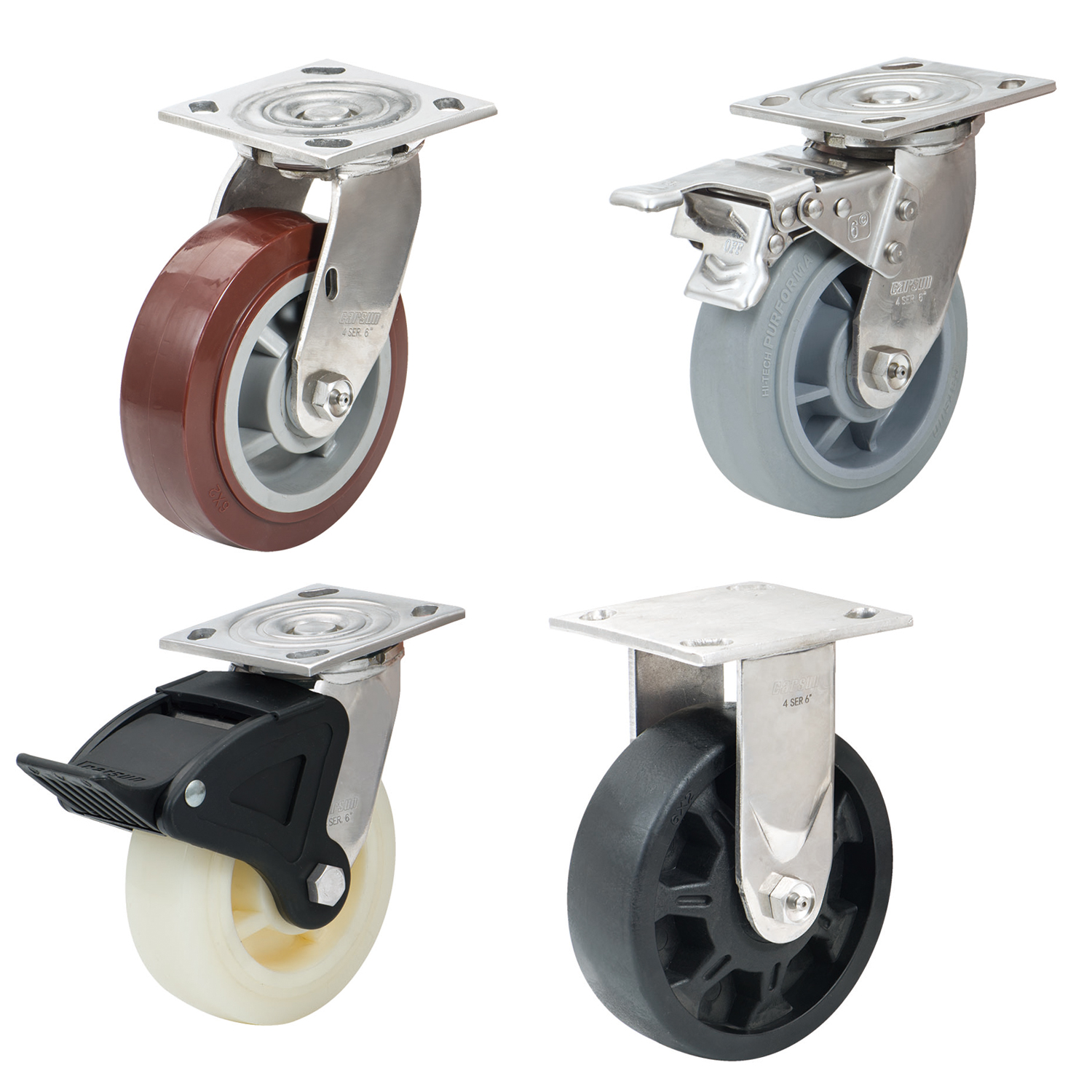

SIMILAR PRODUCTS

Company Profile

FAQ

Q1.Are you a factory or a trader? A: we are a powerful factory established in Dongguan, Guangdong, China, with a factory area of about 8000 square meters. It has 8 injection molding machines, 10 stamping machines, 2 oil presses, 1 double station welding machine, 2 single station welding machines, 2 automatic rivet machines, 6 caster assembly lines and other automatic equipment.

Q2. Can I get free caster wheel samples from Stardrawing ?
A: We would be honor to offer you free caster samples, and we believe that you would be willing to pay for the freight fee
forsuchgood products. Please provide your DHL/FedEx or other freight collect number and advise which express type should be chosen,international express type(2~3days) or economic type (4~5days).

Q3. What is your payment terms of caster ?
A: It is undisputable and crystal clear that 30% advanced payment, 70% before shipment, hope we have reached agreement for thisregular payment manner.

Q4. What about your lead time ?
A: Usually, caster sample needs 5-7 days, mass production time needs 30 days. It is up to the quantity and stocking.

Q5. Is it OK to print my logo on casters ?
A: Sure.
Option 1 - Build the molds and fixtures upon your sample or technical drawings
Option 2 - Add your logo on fork or wheel
Option 3 - Pack the casters in your branded carton

Q6. How can I trust the quality of your casters ?
A: We tell you that we have variety of international quality certificates, we have a very strict quality control system, we do
aseries of caster tests before shipping. Right, you still have no idea about our quality. Therefore, no hesitate! Just place
atrial order from Stardrawing. You will not only trust the quality of casters, but also trust the character of Stardrawing people since then.

Q7. What express can we choose?
A: FedEx,UPS,DHL,TNT etc.

Q8. What is you MOQ?
A: Small order can be accepted if we have stock. MOQ for different styles is different.

Q9. If you product is environmental protection and anti-rust?
A: Of course,all our products are ECO-friendly.
