UP320C Roll to Roll Self Adhesive PP PET PE Paper Vinyl Label CMYK DLP Digital Sticker Printer
- T/T Credit Card
You May Like
-
UP320C Roll to Reel Self Adhesive Trademark Vinyl Label Digital Sticker Printer
-
US4100 Automatic Multi-function Ultrasound Fabric Garment Clothing Woven Satin Label Cutter and Folder
-
UGS1002 2 Color Automatic Rotary Satin Label Printing Machine, Textile Polyester Ribbon Tape Offset Printer
-
US3100 Automatic Hot Cold Blade Knife Garment Woven Fabric Label Cutting and Folding Machine, Textile Ribbon Cut Fold Machinery
-
US3000D Automatic Hot Cold Knife Fabric Lace Ribbon Cutting and Folding Machine, Textile Woven Tape Label Cut Fold Equipment
-
US4000D Computer Automatic Hot & Cold Garment Polyester Satin Cutting and Folding Machine, Textile Fabric Wash Care Label Cutter
Product Description

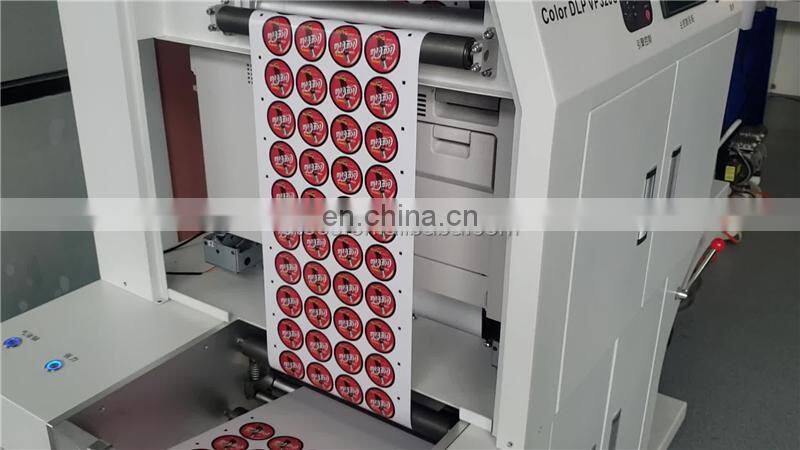

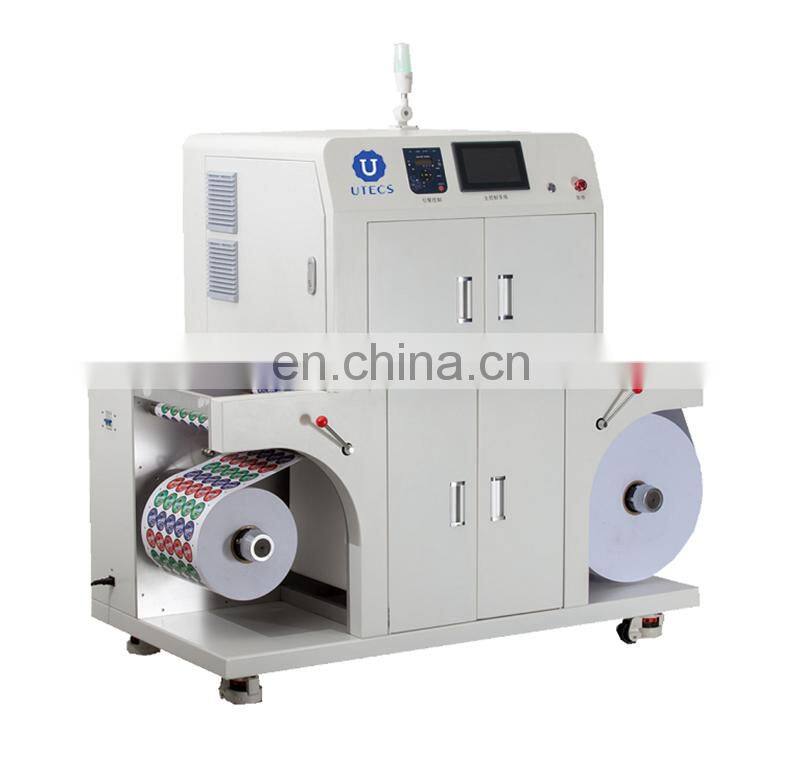

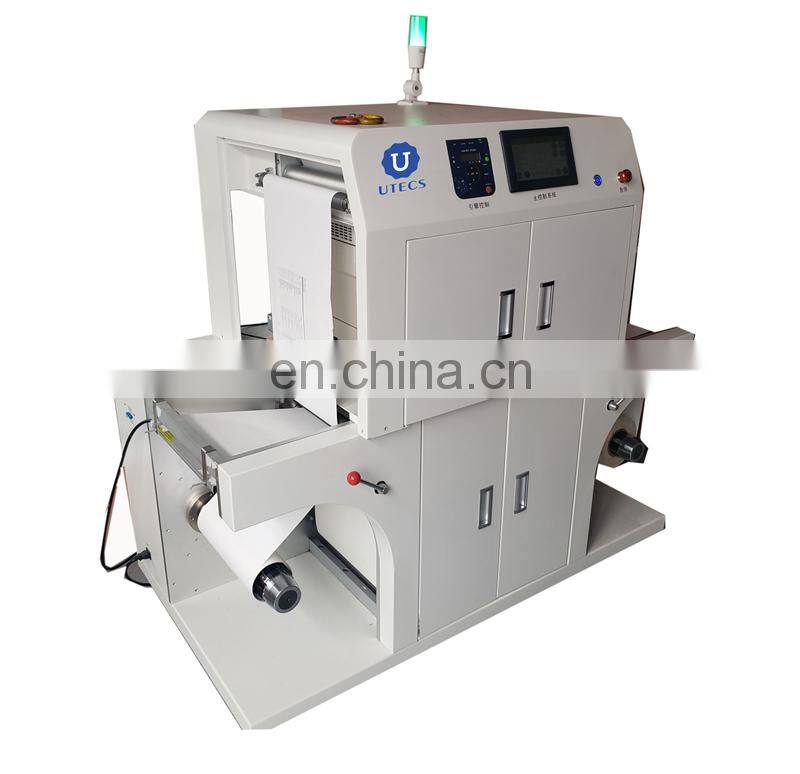

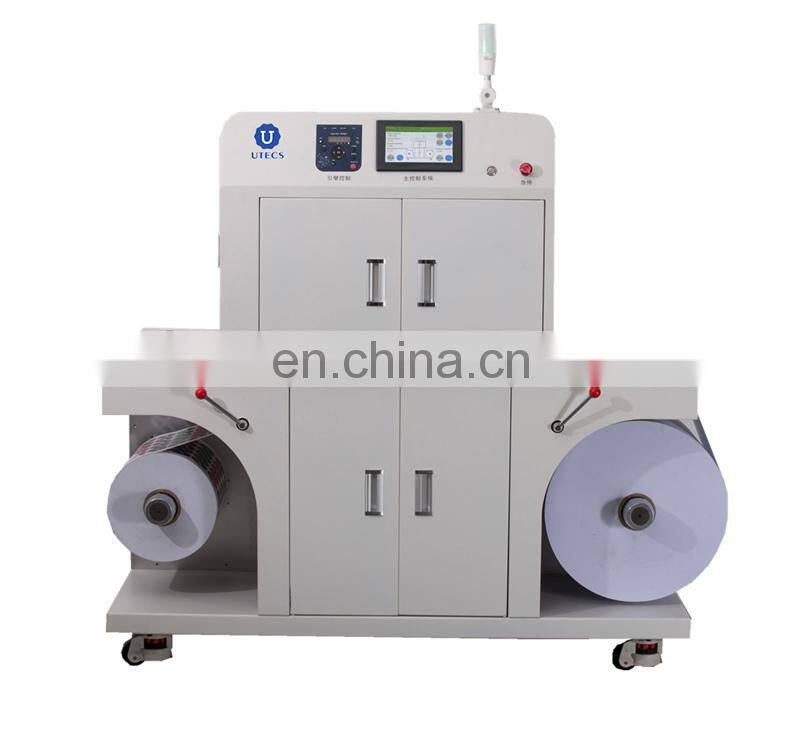

UP320C roll to roll self adhesive PP PET PE paper vinyl label CMYK DLP digital sticker Printer
Features:
1, Multifunctional, high stability, high Efficiency for labeling printing
2, 1200*2400dpi Self-scanning LED chips with ASC Driver.
3, PhaserMatch 5 color management system was built to printing software with media management system.
4, Very low temperature EA environmental toner powder without coating before and after printing.
5, IRecT is possible to correct images in ultra high-precision of up to 2400dpi.
6, The newly developed induction heating fuser incorporates a thin, non-magnetic metal.
7, Largest label up to 320mm * 1200mm, can use most of media without costing.
8, The unwinding diameter up to 450mm which can hold 1000m media roll.

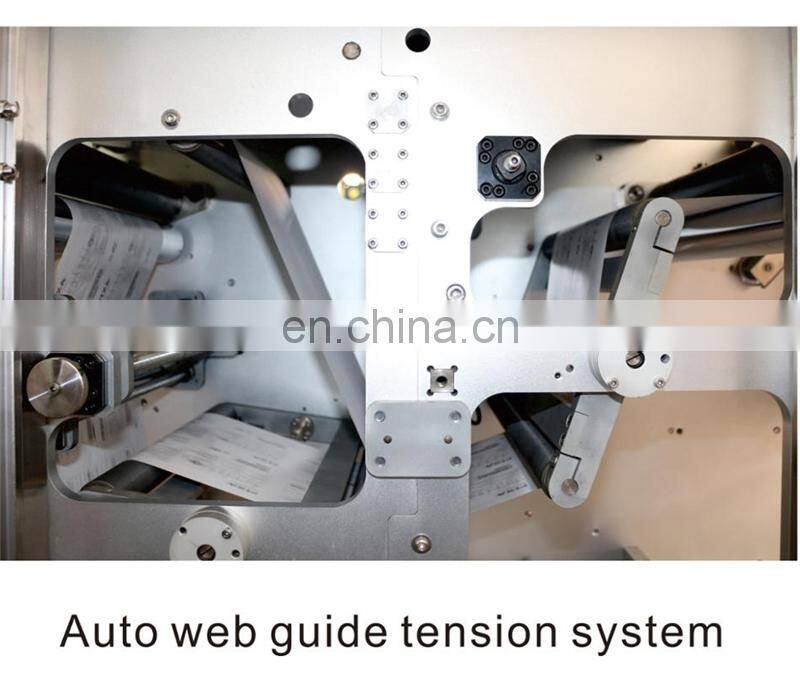

9, Stable tension control system can avoid media to wrinkle and Stretch, feeding more stable.
10, High quality printing with 14592 LEDS while the ASIC driver allows precise control of there LED Chips.
11, 1200*2400dpi high quality image extreme fine digital screening technology.
12, The rewinding diameter up to 450mm which feeding well and stably.
13, Temperature control system can control the image outputting is always 28degree.
Parameters:
|
Print Speed: |
Up to 7.26m per minute |
|
Print Technology: |
4 color (CMYK) LED technology |
|
Print Processor: |
933Hz, 2G |
|
Data Port: |
Standard : 10BASE -T/100BASE-TX. USB2.0 |
|
|
Options: Internate 1000BASE-T, IEEE1284-B |
|
Media Width: |
Min. 140mm Max. 330mm |
|
Print Width: |
Min. 130mm Max. 300mm |
|
Pint Label Length: |
Up to 432mm, can get 1230mm under long label mode |
|
Media Type: |
60-250um |
|
|
Paper: Paper, High glossy paper, matt paper |
|
|
Film: PET, PP, PE, GHS |
|
|
Other: Fabric, all of media was tested in special environment, not tested media possible can't be used |
|
Resolution: |
1200*2400dpi |
|
Toner Capacity: |
CMY-25000 sheets (A4, 5% coverage ) |
|
|
K-26000 sheets (A4, 6% coverage ) |
|
|
Refer to the ISO/IEC guide19798 |
|
Drum Capacity: |
CMYK-70000 sheets (print runs according to the operating cycle, medium side and the direction to change. |
|
Unwinder & Rewinder: |
Max. roll media diameter: 450mm |
|
|
Roll media core diameter: 76.2mm |
|
|
Max. weight roll media: 47.2kgs |
|
|
Automatic expandable pressure system connect media table. |
|
|
Media processing system (static eliminate) |
|
|
Printing cooling system (options) |
|
|
Wed guide system (options) |
|
Size (L×W×H) |
1400mm×750mm×1600mm |
|
Operation space |
2500mm×1850mm×1600mm |
|
Weight: |
423kgs |
|
Operation Temperature |
Temperature: 20-23℃ |
|
Humidity: |
45-55% relative humidity |
|
Power Supply: |
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Wooden Case Loading and Transport
YOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE.
Mobile/Whatsapp/Wechat: +86-18258286679
Email: utecs@ , utecsinter@ , danielsuer@
Skype: danielsuer
Web:
