Product Description
UR320S UR320S Automatic Non-stop 4 Rotary Spindle Adhesive Sticker Label Turret Rewinder Machine with Automatic Paper Core Feeder
Video demonstration only for reference
Video (Glue type):

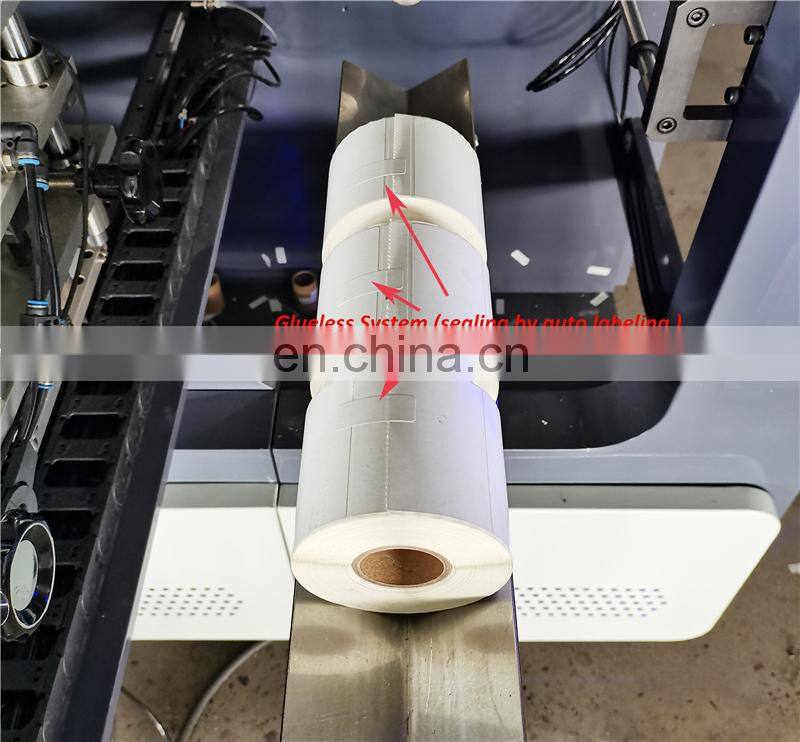

Video (Glueless type by auto labeling):
Description:

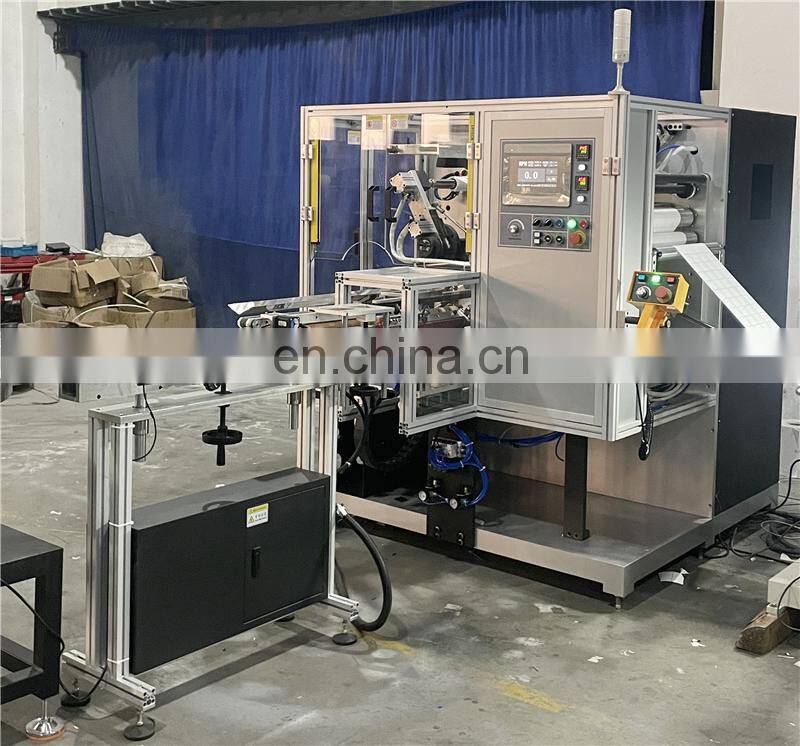

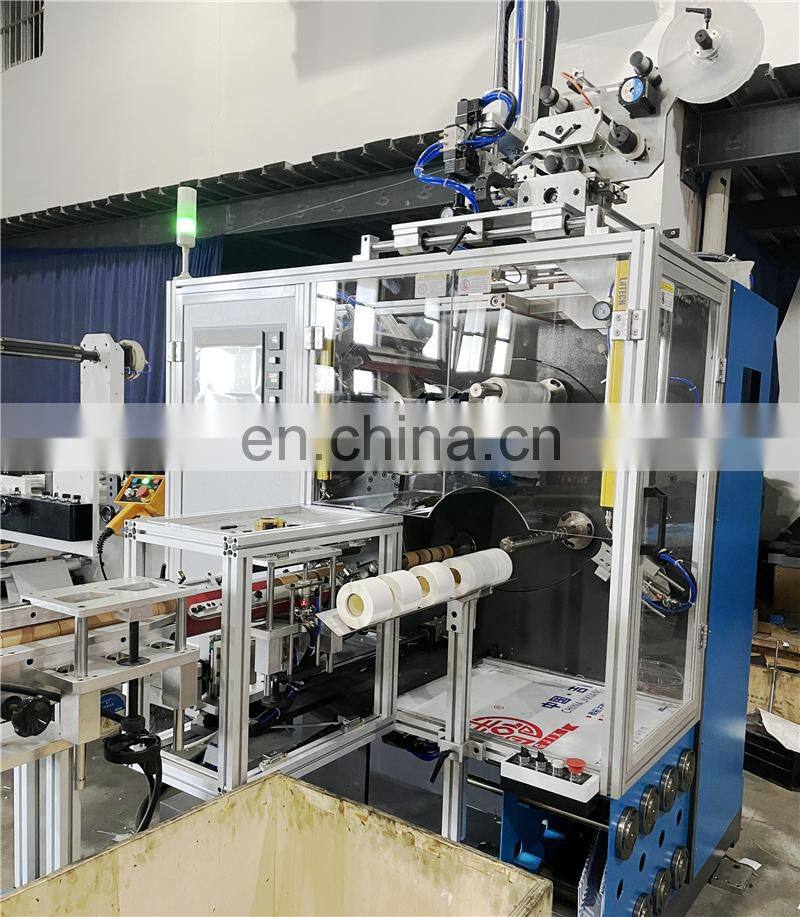

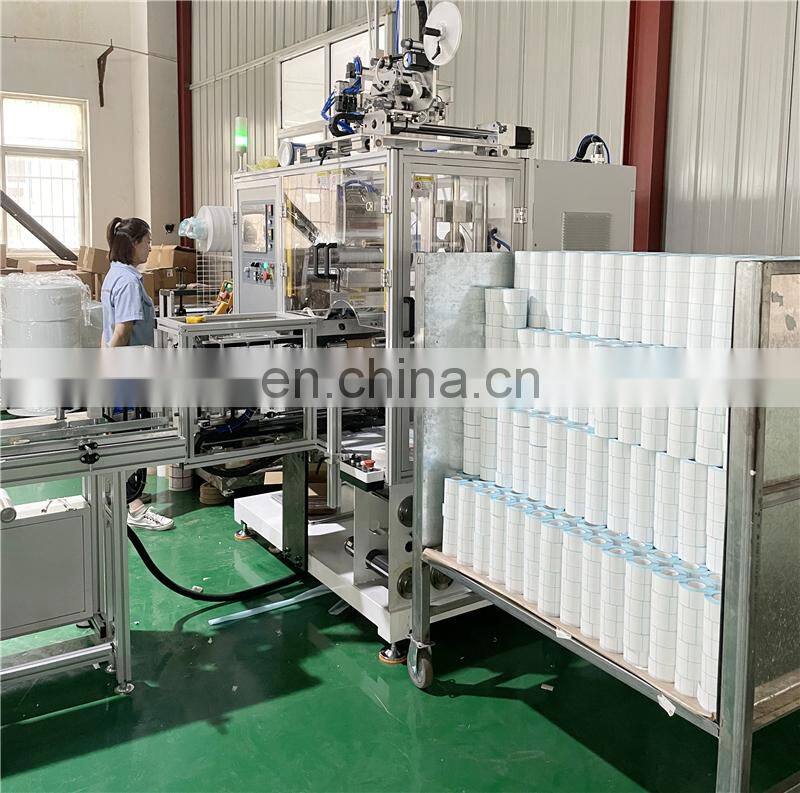

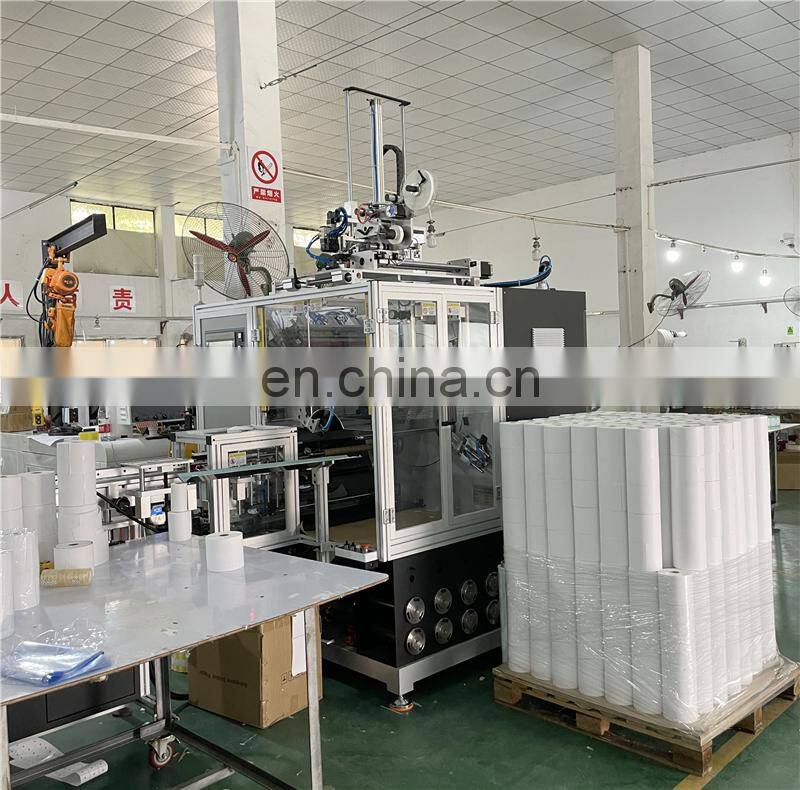

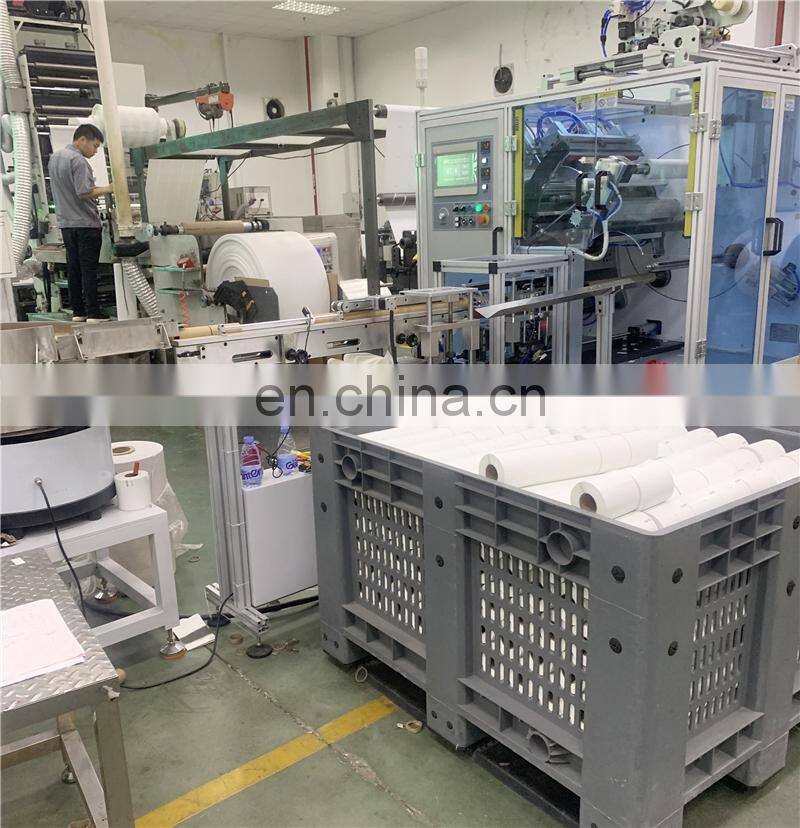

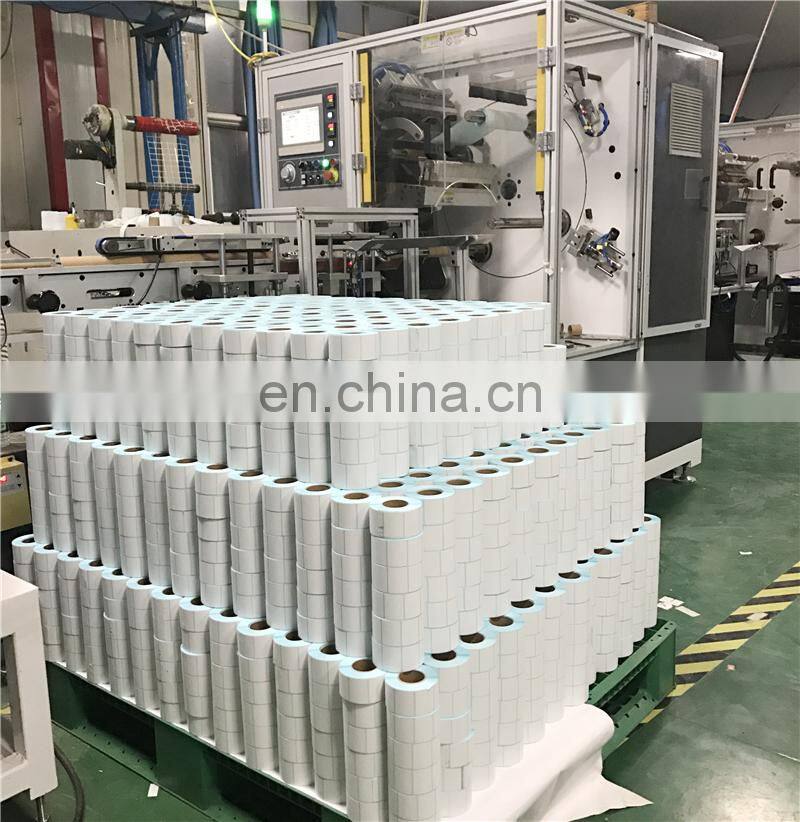

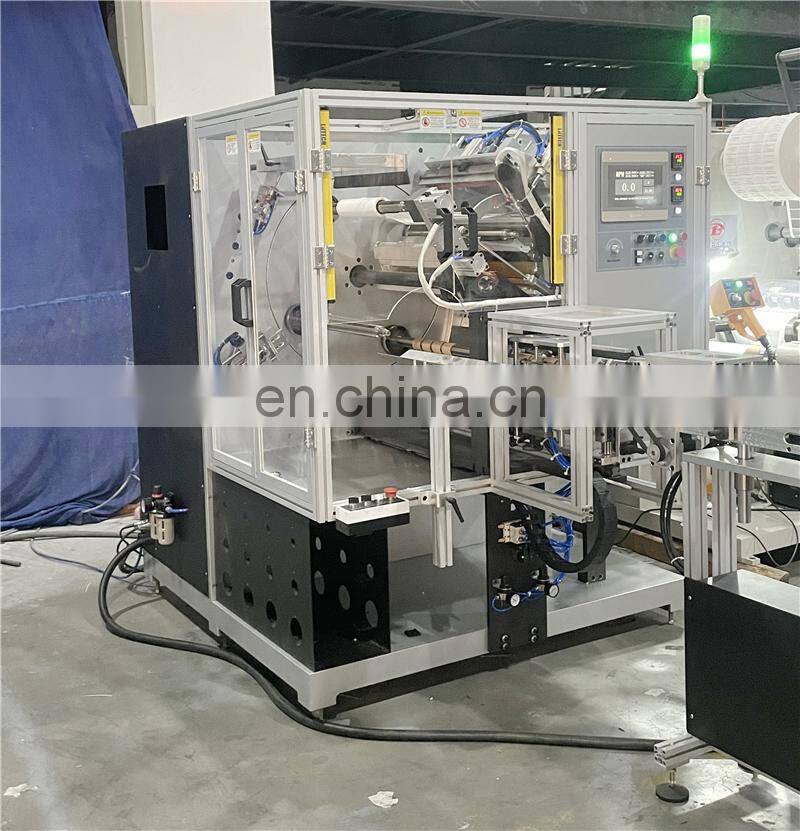

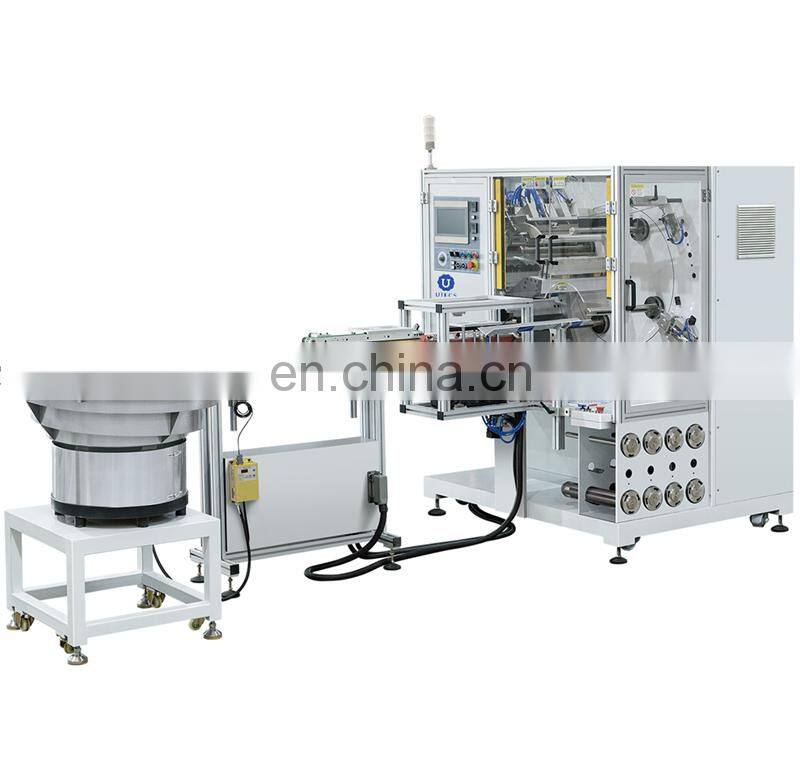

Automatic 4-shaft turret rewinding machine is equipped with automatic paper tube feeder. The machine features automatic core gluing, label rewinding, counting, sealing and finished label delivery in just one pass. This non-stop rewinding equipment is capable to connect with label die cutting machine, label slitting machine, label printing machine and other equipment etc. The rewinding machine comes with different sized rewinding shafts like 25mm, 40mm and 76mm which can be interchanged easily to fit different job and increase the efficiency.
Features:

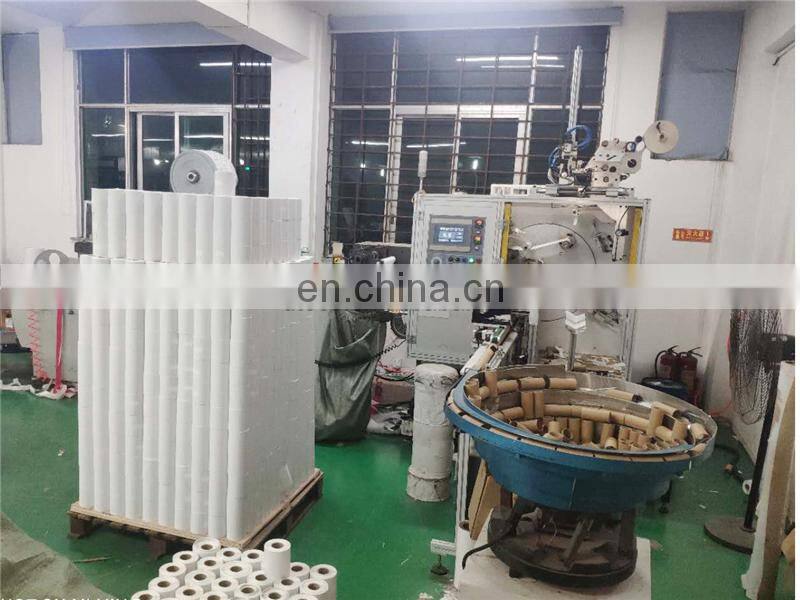

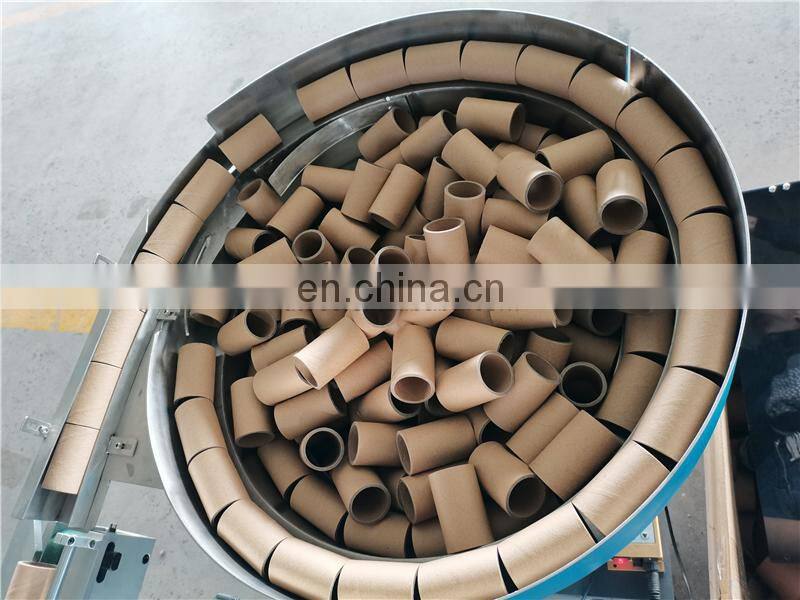

1, One automatic paper tube feeder.
2, Conveyor belt to feed the paper tube
3, 12pcs (4* 40mm, 4*25mm, 4* 76mm) rewinding air shafts.
4, 2 hot melt gluing system, one for paper core gluing which is used to stick the paper core with label and another for gluing on material surface to seal the material.

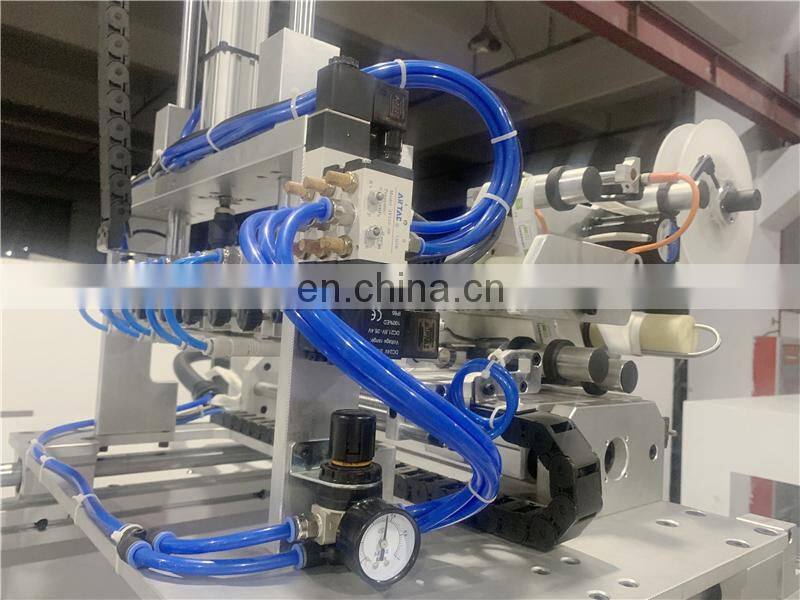

5, Automatic cutting device comes with pneumatic cylinders to lift up/down the cutting knife.
6, Automatic finished roll pushing device.
7, Brush pressing device for finishing roll.
8, 3 sensors to detect the paper core.

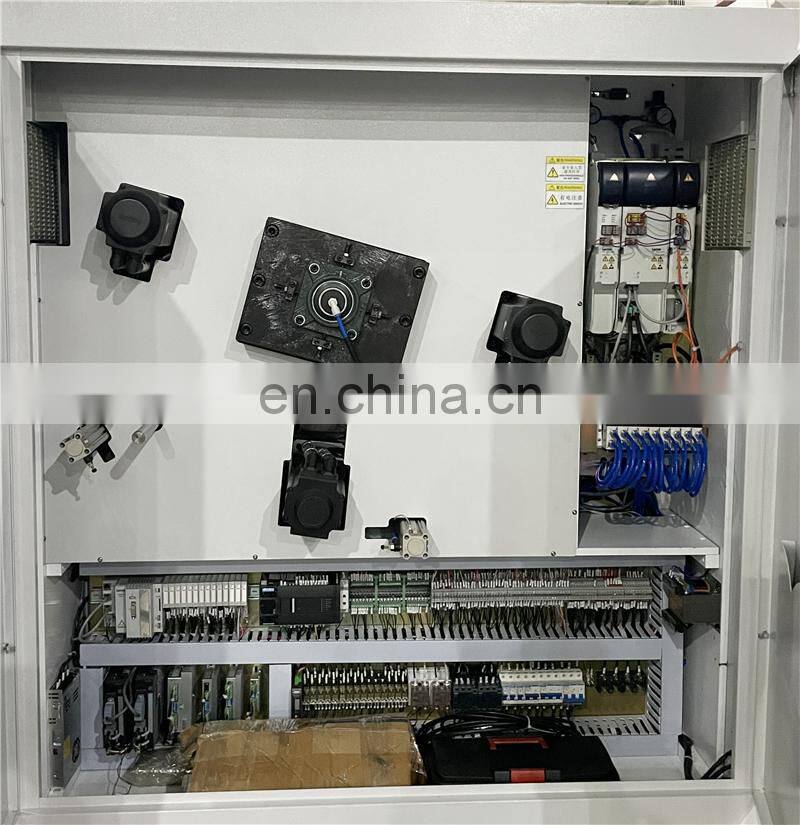

9, Plc and touch screen to control the machine operation.
Parameter:
|
Model |
UR320S |
UR420S |
|
Maxi rewinding diameter |
350mm |
350mm |
|
Reinding speed |
100m/min |
100m/min |
|
Maxi web width |
320mm |
420mm |
|
Mini rewinding width |
40mm |
60mm |
|
Voltage |
380V 50Hz |
380V 50Hz |
|
Power |
8Kw |
10Kw |
|
Air supply |
0.8Mpa 1m3/min |
0.8Mpa 1m3/min |
|
Overall dimension |
1500*3000*1700mm |
1500*3200*1700mm |
|
Weight |
2000kg |
2200kg |
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
