Label Slitter Rewinder Machine Slitting Rewinder Automatic 120 M/min Production Capacity Electric 650mm

label slitter rewinder machine

DP-650 SLITTING MACHINE

Application

Apply to the longitudinal cutting and all kinds of industrial tape, electronic adhesive tape, PP, PET, PVC, composite film paper, protective film , all kinds paper and other composite materials, electronic material processing is, printing, packaging, food, pharmaceutical and other industries essential equipment.

Functional Characteristics:

This machine enjoys photoelectric track and rectification system,

and the magnetic powder clutch is adopted to control the feeding and receiving tension.

Main machine is of frequency conversion speed regulation,

and the movement of the rubber covered roller is controlled by the cylinder.

Lamination and slitting can be done at one time, and also can be done solely.

Enjoying characteristics such as fast slitting speed , ease of opertion and maintenance.

Remark:We offer 12 month after sale service , wear and tear items excluded

Delivery time : 5 days after received the deposit .

Payment terms: 100% paid off before shipment

standard machine can be delivery within 7 working days

have 3 standard machine in stock now

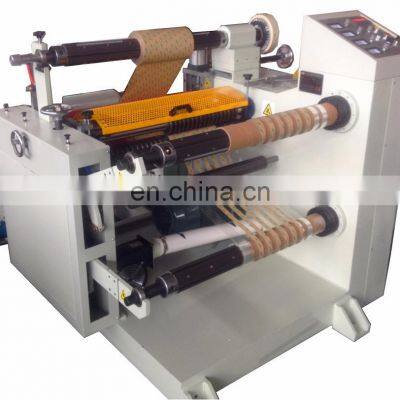

Machine Picture and configuration list as below

2, Feeding Device

Feeding Air Expansion Shaft (3”Pad Shaft) 2 Sets

magnetic powder brake 25N 1 Set

Film release Magnetic Powder Brake 25N 1 Set

Feeding Tension Control System 2 Sets

Correction System 1 set

3, Renewal Material Laminating Part :

Upper Laminating COTS Dia.80(PU) 1 Set

Under Laminating COTS Dia.80(PU) 1 Set

Aluminum guide roller(hard Oxygen surface treatment) 1 Set

Pressure roller pneumatic type top and bottom system adjustable : 1 Set

electronic counter 1 Set

Film Release tensioning adjustable system

4. Reeling end

Receiving Flatulence axis(3″Pad shaft) 2 Sets

magnetic powder clutch 25N 2 Sets

he receiving tension control system 2 Sets

Main electrical machine (double motor) 1 Set

Main Power inverter 1 Set

Winding shaft and pneumatic up and down device(Rise,descend ,support) 1 Set

5. Operator control box 1 Set

6.Electric control panel 1 Set
