Product Description

At present, the novel coronavirus is spreading all over the world, and the situation is not optimistic. In order to overcome the virus, we must use special equipment to protect it. Liuzhou Wuling is a large state-owned enterprise with more than 30 years of experience in developing and manufacturing sightseeing / special purpose vehicles. In the face of the epidemic, Wuling has developed a variety of special anti epidemic vehicles to provide services for hospitals and governments at home and abroad. There have been many places / governments in use in China before.

Model	M100 mobile temperature measuring car
Size	Long,mm	3350
		Wide , mm	1530
		High , mm	1870
		Wheelbase , mm	2130
		Front Wheel , mm	1280
		Rear wheel , mm	1290
		Floor height from the ground , mm	390
Quality Parameter	Maximum total mass , ㎏	1460
		Curb weight , ㎏	950
		Passenger Capacity	5
Chassis	Minimum ground clearance , mm	150 (no load)/130 (full load)
Chassis		Tire specification	165/70R13
Engine	Model	LJ465-2AE
		Displacement	1.05L
		Gear position	5 in 1
Performance Parameters	No load maximum speed , ㎞/h	30
		Maximum speed with full load , ㎞/h	30
		Maximum gradient , （°/%）	16/30
Thermal Imaging Human Body Temperature Measurement Binocular Medium Gun Camera	Working temperature	+10℃~+30℃
		Working humidity	≤95%
		Environment adaptation	Support heating (temperature protection for main control chip)
		Protection level	IP67, TVs 6000V lightning, surge and surge protection
		Product size	279.9mm×103.8mm×95.8mm (L x W x H)
		Packing dimensions	Single set with package：365mm×175mm×176mm (L x W x H) Protective box:902mm×380mm×380mm（Wx Lx H）
		Net weight	≤1.4kg
		Gross weight	≤1.9kg
		Appearance	Gun in two eyes
		Use type	Thermometric type
		Detector type	Uncooled vanadium oxide focal plane detector
		Detector pixel	400×300
		pixel size	17μm
		Spectral range	8μm～14μm
		Thermal imaging proximity	2.0m 1.0m
		Thermal imaging electronic amplification	Level 16
		Thermographic image flipping	90°/180°/image
		Measuring range	30℃～45℃
		Maximum resolution	1920x1080
		Visible pixel	2 million

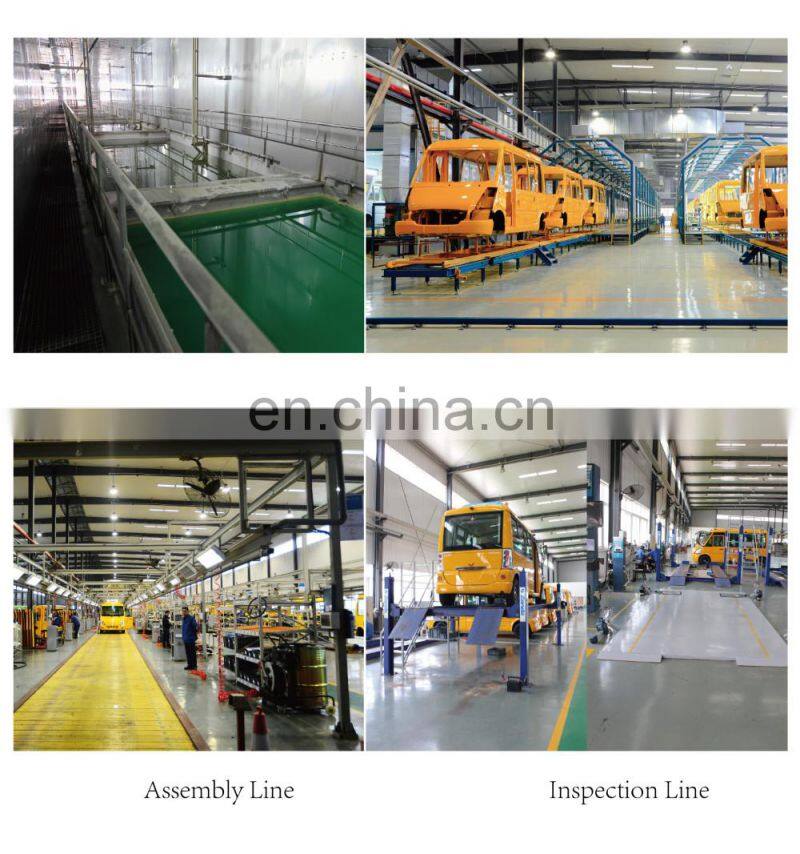

Manufacturing Technique

Certifications

Recommend Products

Company Introduction

Guangxi automobile group
Wuling sightseeing car is designed and manufactured by Liuzhou wuling automobile industry co.,ltd, which has more than 30 years experience in vehicle industry.
