Product Description
Product Description
Based on Wuling non road M100 model and equipped with special medical equipment and rescue equipment, the vehicle is a new type of special vehicle for epidemic prevention and negative pressure. The vehicle has outstanding space advantages and can be used for multiple purposes, so as to realize the functions of infectious patient isolation, emergency medical care and monitoring, and patient transfer.
Item | Item | Isolation Transfer Vehicle | ||
Size | Overall Demension(mm) | 4800*1530*2500 | ||
Wheelbase(mm) | 3400 | |||
Weight Parameter | Curb weight(kg) | 1600 | ||
Max total weight(kg) | ||||
Passenger Capacity | 5+1(Stretcher) | |||
chassis | Min Clearance(mm,fully loaded) | 150(unload)/130(fully) | ||
Tyre | 155R13C | |||
Motor | Modle | 10kW air-cooled motor | ||
Type | Three phase AC asynchronous | |||
Battery | Rated capacity / rated voltage | 72V200AH | ||
Main performance parameters | Maximum no-load speed, ㎞ / h | 30 | ||
Maximum full load speed, ㎞ / h | 28 | |||
Maximum gradient, (° /%) | 11.3/20 | |||
Driving range (no load), KM | 130 | |||
Driving range (full load), KM | 100 | |||

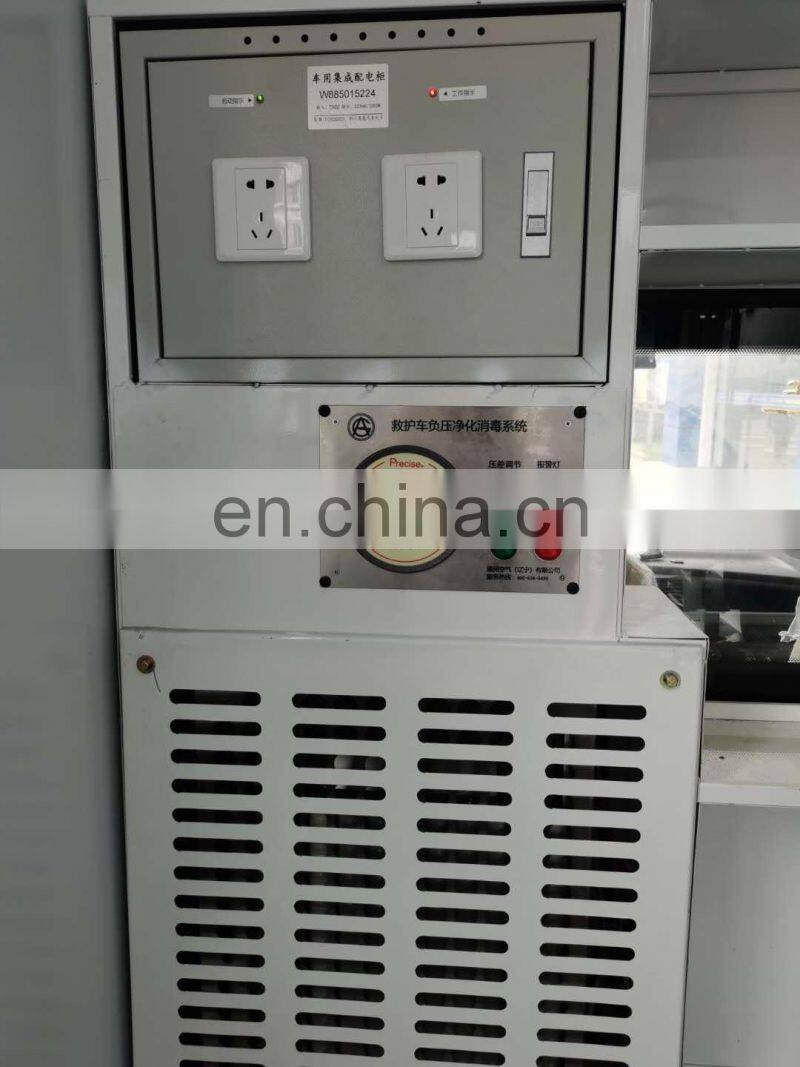

Negative pressure purification and disinfection system | Boundary dimension, mm | 388*208*H600mm | ||
Air volume, m3 / h | 500 | |||
Power supply, V / Hz | 220/50 | |||
Maximum power, w | 229 | |||
Noise, dB | 48 | |||

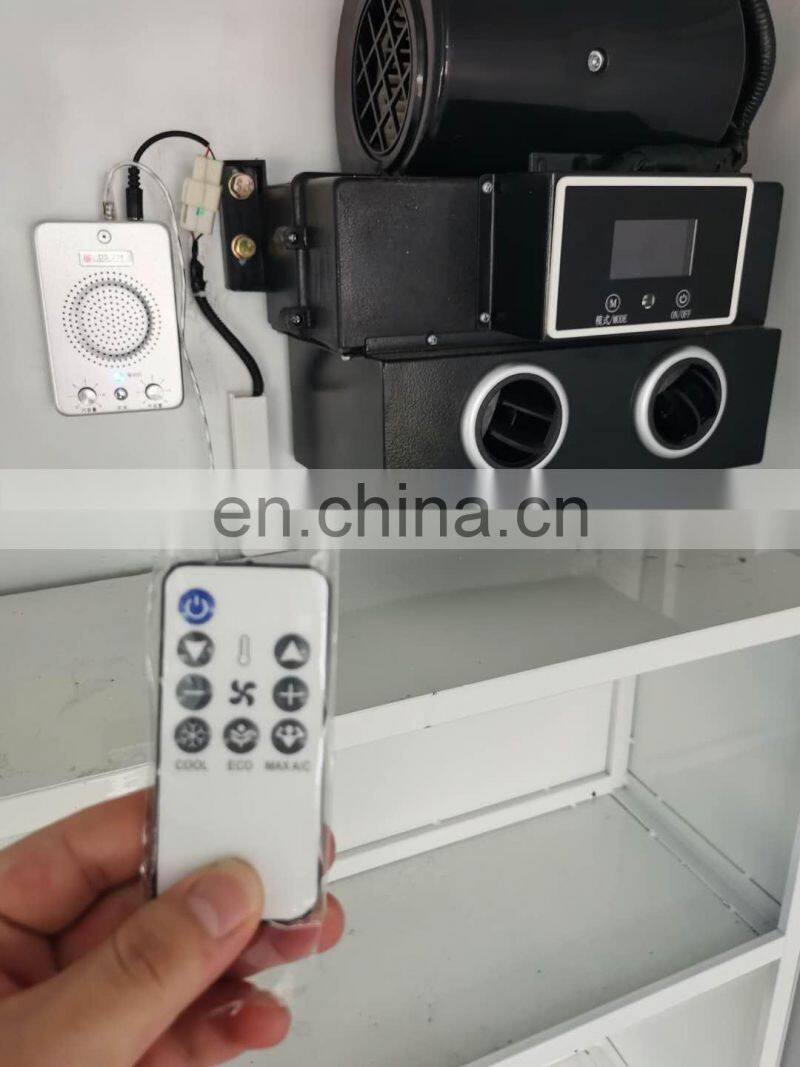

Air conditioning related parameters | Cooling power, w | 1200 | ||
Input power, w | 400 | |||
Voltage, V | 12 | |||
Air exchange rate, m ³ / h | 90 | |||
Rated voltage of fan, V | 12 | |||
Power consumption, w | 130 | |||
Detailed Images

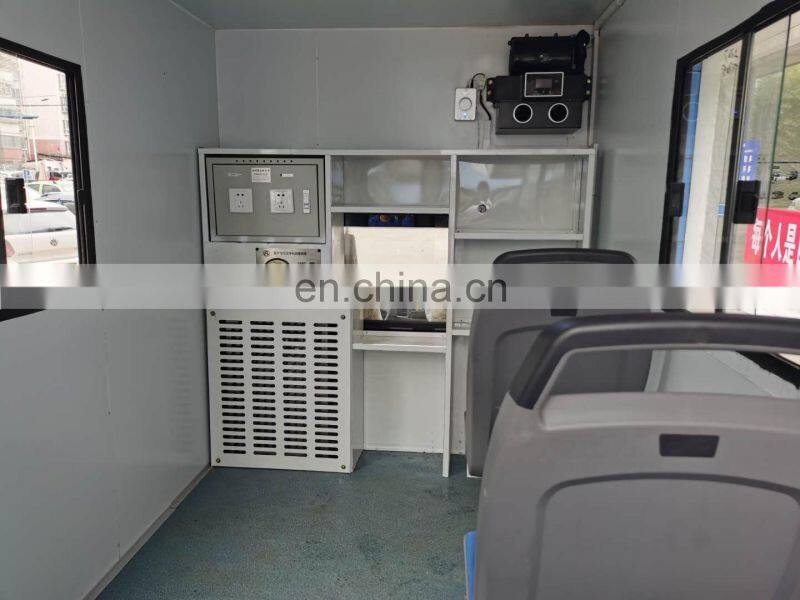

Large space: three parallel independent seats can save internal space, realize the purpose of large space for multiple medical staff, and take care of the patients to the greatest extent;

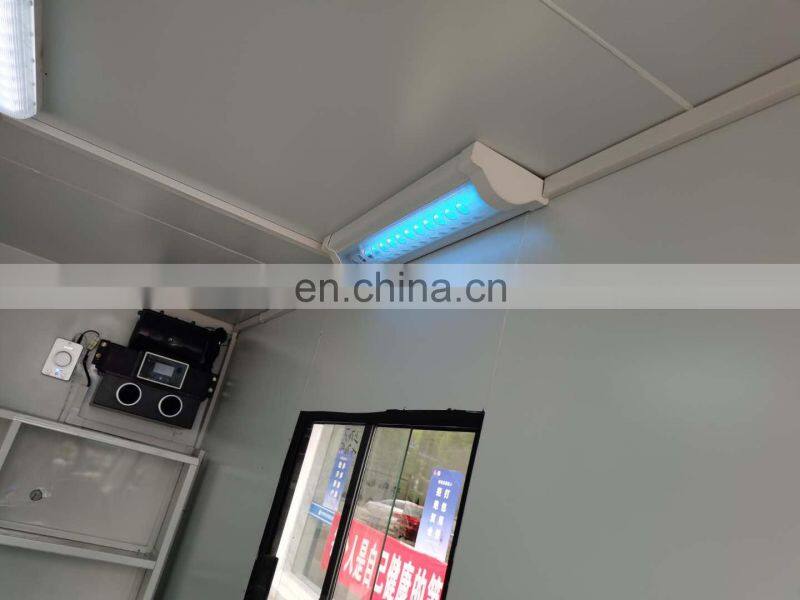

Complete equipment: medical stretcher, oxygen bag, infusion hook, negative pressure equipment and other equipment to achieve emergency rescue and prevent the spread of infectious diseases.

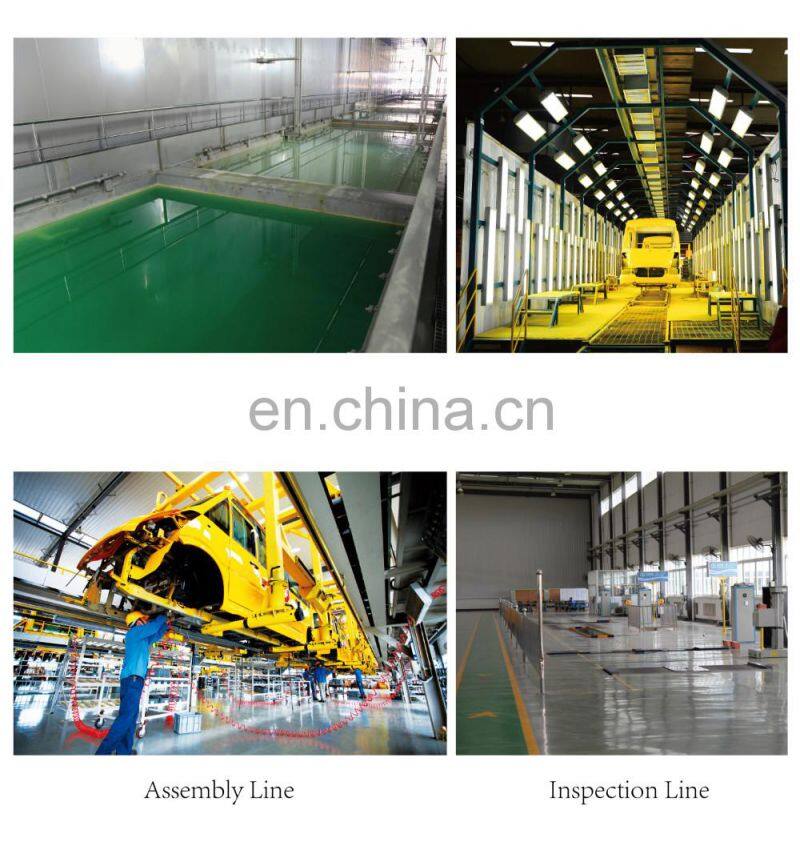

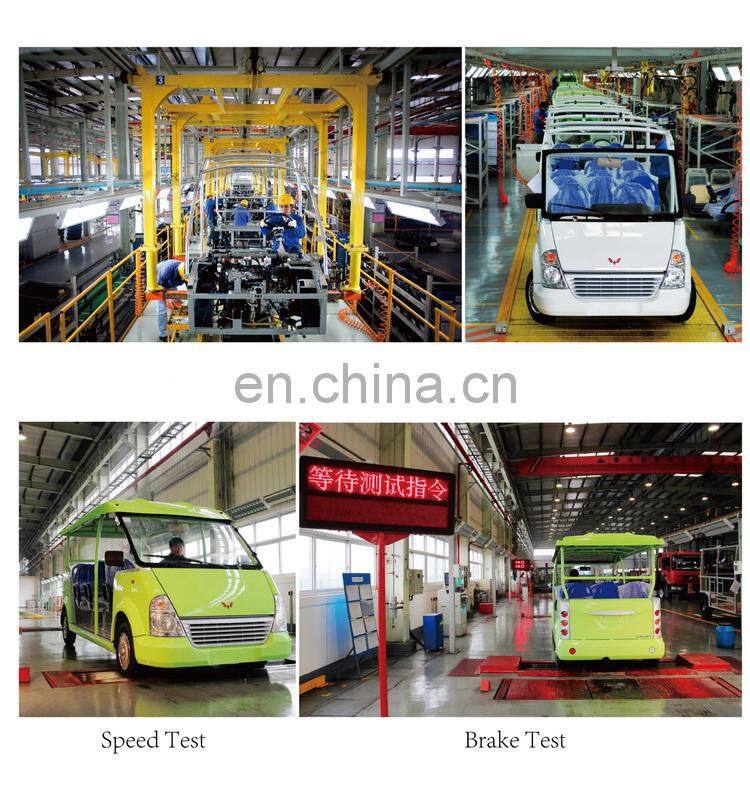

Manufacturing Technique


Related Products
Certifications



Company Introduction
Wuling sightseeing car is designed and manufactured by Liuzhou wuling automobile industry co.,ltd, which has more than 30 years experience in vehicle industry.
