HFRR

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	GK	Place of Origin	China
Model Number	CMS-01	Power	Electronic
Usage	Abrasion Tester

Product Description

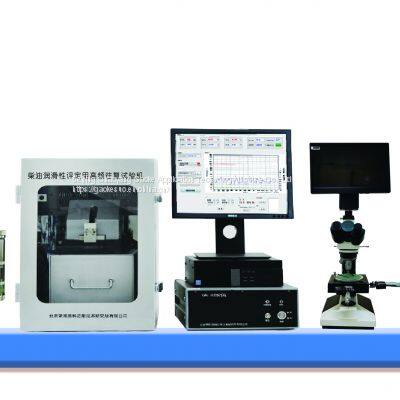

GK HFRR has more than 260 systems worldwide and is a rising star in the analysis of diesel lubricity industry. GK is a Chinese manufacturer of HFRR instruments. With more than 10 years of development experience and continuous improvement in design, quality and user experience, we are always at the forefront of the market.

GK instruments are test instruments that meet the following standards: ISO 12156, ASTM d6079 and ASTM d7688.

Our latest version of the HFRR allows for fully automated testing. A wide range of accessories are available, including the humidity cabinet and temperature control unit (TCU). These enable labs, operating even in harsh conditions, to meet the requirements of the standard diesel fuel lubricity test methods.

The instrument’s ability to collect continuous friction measurements, the wide range of specimen materials available, and the ability to customise test parameters also make the HFRR a popular choice for tribology research.

Load	1 - 10 N
Contact Pressure	Up to 1.4 GPa
Frequency	10 - 200 Hz
Stroke Length	20 μm to 2.0 mm
Temperature Range	Ambient to 150°C
Test Sample Volume	2 ml
Power Supply	100-240 V, 50/60 Hz, 80 VA
Weight (Control Unit)	8kg/18lb
Dimensions (h x w x d) (Control Unit)	150mm/6" x 305mm/12" x 380mm/15"
Weight (Mechanical Unit)	24kg/53lb
Dimensions (h x w x d) (Mechanical Unit)	195mm/8" x 150mm/6" x 330mm/13"
