K30 Plate Load Tester Bearing Capacity Of Foundation
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Steel Bar Anchor Rod Tension Meter Rebar Pullout Test
-
Pull Out Test for Rebars Astm Pull Out Test Rebar Concrete
-
Anchor Bolt Pull Test Equipment Rebar Pull Out Test
-
Rebar Pull-out Force Tester Pull Test for Rebar
-
GTJ-2701 Nonnuclear Bitumen/Asphalt Density Test Instrument
-
K30 Plate Load Test Soil Bearing Capacity
Product Description
Product Usage and Features

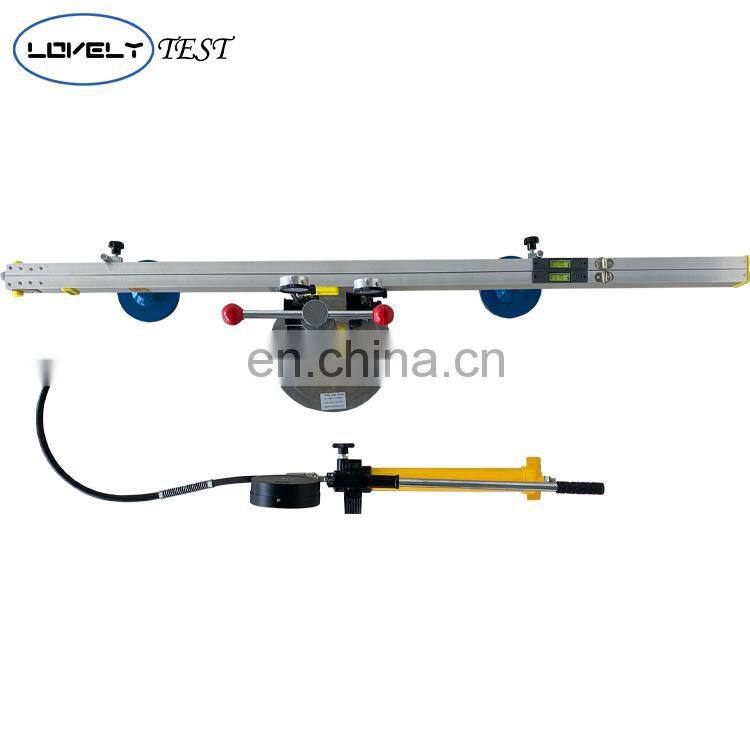

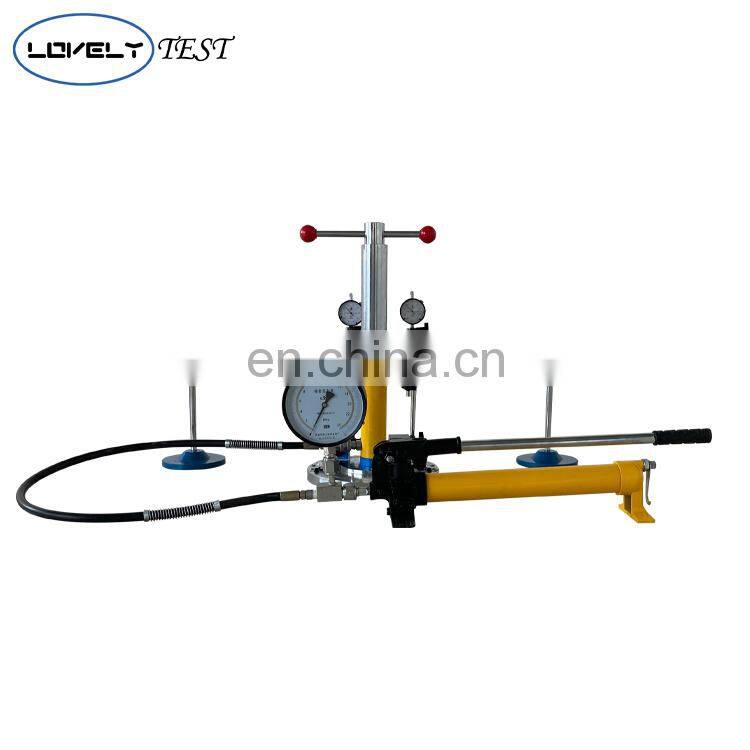

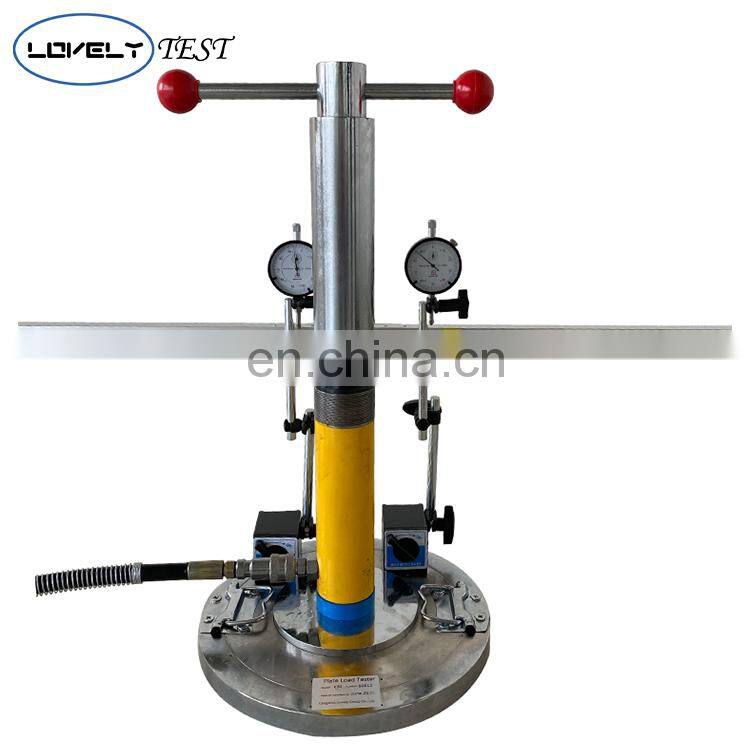

Plate load tester
APPLICATION:
Plate load tester is suitable for thick. The test of the foundation coefficient of fine-grained soil and soil-filled compacted subgrade and base layer can also be used to calculate the deformation modulus of uniform foundation soil.
BASIC STRUCTURE:

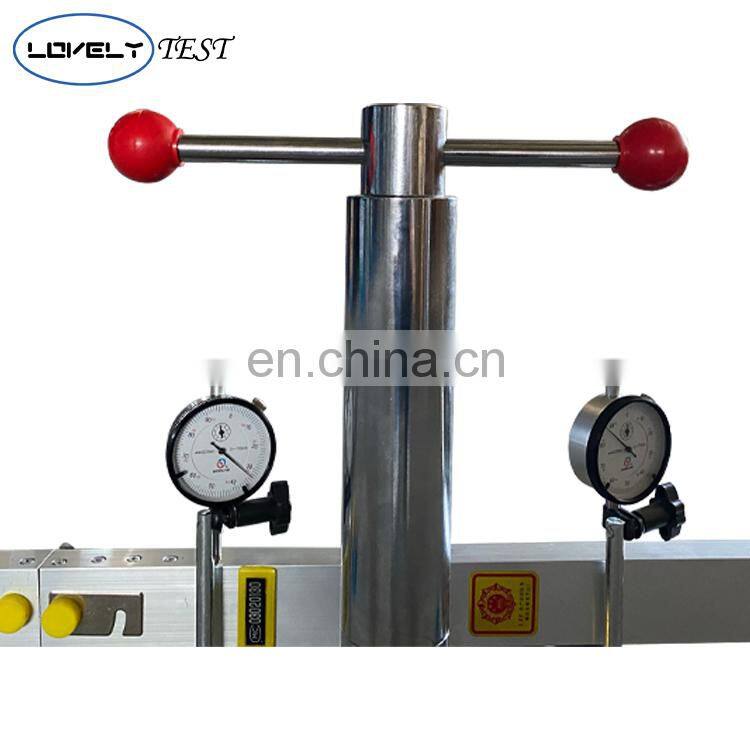

1. Loading system: It is composed of loading plate, jack, high-pressure tubing of manual pump, etc., and the positioning line for jack is engraved on the loading plate.2. Bridge measurement: it is composed of a support, a beam, a dial indicator and a bracket. The beam can be raised and lowered along the two support columns to adjust the height.
Parameters
Straight through load plate | 300mm |
Jack stroke | 120mm |
Span of side bridge | 3000mm |
Pressure test range | 25MPa (level 0.4) |
Displacement test range | 0-10mm |
Applicable temperature | 5°-45°C |
