Product Description

Application

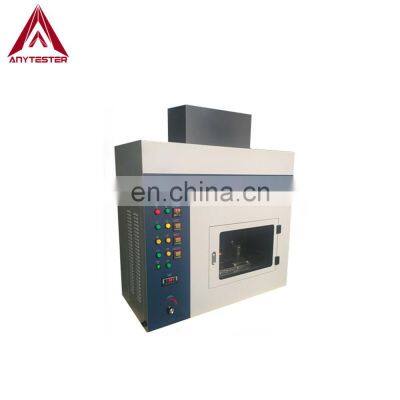

AT802 Glow Wire Tester

AT802 Glow Wire Tester uses the specified material Ni/Cr(80/120) and shape wire to testing temperature (550℃~960℃) by large current in 1min, use specified pressure (1.0N) vertical iron the specimen 30s. Then observe if the specimen is ignited or burning time to determine the fire risk of electric product, insulation material etc.

Feature

★ Using digital instrument control system, import control components; ★ Fixture made of high quality stainless steel, corrosion-resistant, no rust; ★ One-button time device, to facilitate the use of equipment, simple operation; ★ Advanced temperature control and temperature measurement system, so that the test more accurate, the results more reliable; ★ Tempered glass observation window, the entire test process can be observed

Technical specification

Model	AT802
Glow wire	4mm ± 0.04mm Ni/Cr(80/120)
Glow wire temp.	500 ℃ ～ 1000 ℃
Test pressure	1.0N±0.1N
Max iron depth	7mm ± 0.5mm
Sample moving speed	10mm /s ～ 25mm /s
Test time	1s ～ 999.9s
Test space	0.5m3
Background illumination	≤ 20Lx
Power supply	AC220V, 50Hz

Our Company

Packing & Delivery

Packaging
_{Packaging Details}	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment			FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
