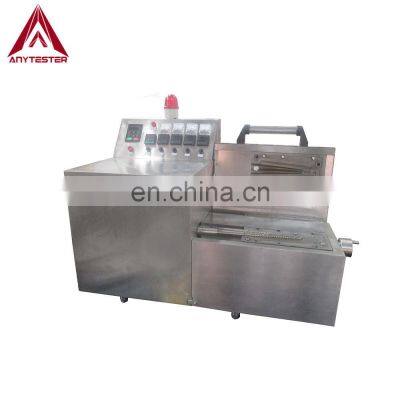

AT395A Lab Openable Mini Conical Two-Screw Extruder

Application: AT395A Lab Openable Mini Conical Two-screw Extruder is a minimum instrument for mixing new material designed on the international advanced technology. It is suitable for developing new products of plastic polymer, biopolymer, inorganic material, medicines, foods and fine chemicals. For new material or recipe, it is very hard to test or evaluate because no enough material or expensive additives; this machine commendably solves this problem.

Specification

Model	AT395A
Screw diameter	10/24mm(conical)
Screw effective length	330mm
Main motor power	0.55Kw (frequency control)
Screw total torsion	60N.m
Screw speed	0~57r/min
Temperature controlling range	0~400℃
Heat power	1.2kW
Heat section	1
Cool method	Natural cooling
Material of barrel and screw	38CrMoAlA
Depth of nitride	0.5~0.7mm
Surface hardness	HV850~930
Extruding method	Direct extruding or circular extruding
Max. processing capacity	15ml
Mini. Material for single test	50g
Extruding speed	≥1.0kg/h (raw material at direct extruding)
Power supply	AC380V 50Hz, three-phase
Dimensions	≤800×500×500

Details and Features

★ Key part of this machine is an openable no-material-leakage double hollow conical mixing cavities with two dischargeable conical mixing screws; ★ Two hollow conical mixing cavities are processed by hardening and tempering before being manufactured; the metallographic characteristic and hardness of barrel keep their initial geometric structure and screws and mixing cavities are processed by fine polishing, nitriding and anti-corrosion, ensuring the core parts has enough stability and achieving repeatable data in the service life; ★ Main driving adopts digit-settable frequency controlling to select appropriate rotational speed according to the material’s characteristics; ★ Be able to measure the axial pressure and die pressure at material output port and control the extruding flow, so it can output rod, sheet, pipe, granule, film and filament with different optional dies; ★ Working temperature is controlled on four separated sections to get a specific temperature gradient during processing or direct controlled by thermocouple; ★ Stay time of material in barrel can be changed by backflow of melt, achieving the purpose of long-time mixing; ★ Mixing, dispersing and shearing of material can be set by controlling the rotational speed and axial force; ★ Space between mixing screws are adjustable.
