Overview

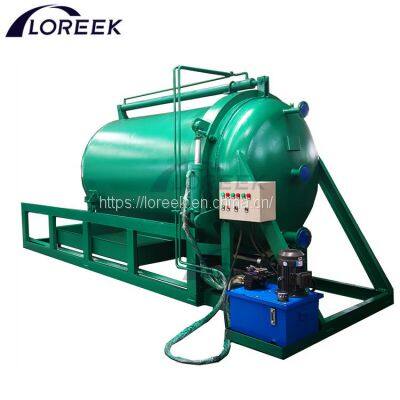

Loreek brand Crude Oil Filtration Pressure Leaf Filter (HPLF Series) mainly includes horizontal pressure vessel, filter leaves, pneumatic vibrator assembly, bottom structure housing, hydraulic power pack for bonnet ring opening / closing and shell or bundle retraction. It can be used in many industries, such as filtration of sugar, cocoa or edible oils, for the removal of activated carbon, molten sulphur filtration or catalyst recovery etc. Our Filters can also be equipped with fix or oscillating sluicing devices for wet cake dislodging. It is easy to operate.
Our filter blade adopts special stainless steel filter screen, which has long service life, large output and high precision. The original oil pressure mechanism has the advantages of low oil content in the slag, easy operation and easy slag discharge. Crude Oil Filtration Pressure Leaf Filter is suitable for the filtration and separation process of decolorized oil filtration, clarification filtration and crystal in the production of oil, chemical, pharmaceutical and other industries.
Products Parameters:
Model | Filter Area(m2) | Cylinder Diameter (mm) | Working Pressure(Mpa) | Working Temperature(oC) | Capacity(T/h.m2) | ||
| Grease | Resin | Beverage | |||||
HPLF -5 | 5 | ?900?1200?1400?1500 | 0.4 | 150 | 0.2 | 0.7 | 0.8 |
HPLF -10 | 10 | 0.4 | 150 | ||||
HPLF -15 | 15 | 0.4 | 150 | ||||
HPLF -20 | 20 | 0.4 | 150 | ||||
HPLF -30 | 30 | 0.4 | 150 | ||||
HPLF -40 | 40 | 0.4 | 150 | ||||
HPLF -50 | 50 | 0.4 | 150 | ||||
HPLF -60 | 60 | 0.4 | 150 | ||||
HPLF -70 | 70 | 0.4 | 150 | ||||
HPLF -80 | 80 | 0.4 | 150 | ||||
HPLF -90 | 90 | 0.4 | 150 | ||||
HPLF-100 | 100 | 0.4 | 150 | ||||
HPLF-120 | 120 | 0.4 | 150 | ||||
HPLF-140 | 140 | 0.4 | 150 | ||||
HPLF-160 | 160 | 0.4 | 150 | ||||
HPLF-180 | 180 | 0.4 | 150 | ||||
Products Features of our Paraffin Wax Horizontal Leaf Filter
1. Fully closed filtration, no leakage, no environmental pollution.
2. The automatic driving structure is easy to work in the observation and cleaning.
3. Hydraulic control, operational automation.
4. 2m2 to 200m2 model are all available.
Application
Bleaching earth filtration
Wax filtration in edible oil industry
Hydrogenation (catalyst filtration)
Crude oil filtration in edible oil
Alkyd resin filtration
Molten sulphur filtration
Catalyst filtration
About LOREEK
Zhengzhou Loreek Machinery Equipment Co., Ltd. Is the professional manufacturer, exporter and service provider of filtration and separation equipment. Our Core Team has over 30 years production and manufacturing experience. We mainly supply all kinds of filtration and separation equipment, such as pressure leaf filter, candle filter, press filter, vibrating separator etc...And oil refining line, screening system and recycling line etc.
