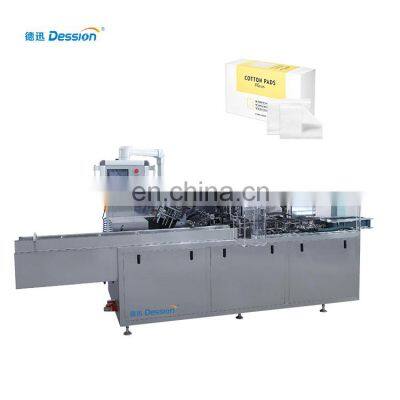

Automatic cartoning machine cotton pad/cotton wool box packing manufacturing machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Automatic 10g 20g 30g sachet laundry detergent water soluble pva film packaging machine
-
High Precision Adjustable Spice Grinding Packing Machine Chilli Powder Packaging Machine
-
DS-280C Dession Automatic Spice Powder Packing machine Powder Filling Packing Machine
-
High quality electrical socket/ switch socket packing machine with hanging hole
-
Full Automatic Soap Double Paper Wrapping Packing Machine Price
-
Automatic Weighing And Filling Packing Machine For Pasta Spaghetti
Product Description
Products Description
Dession box packing machine is widely applied in the single piece transparent film automatic packaging of all varieties of box-type things in the industries of pharmacy, food, healthy products, cosmetics, commodities, stationary and office supplies poker and cigarettes etc.
Model | DS-B100 | ||
Carton Size | 70-250*50-120*20-90mm(can be customized) | ||
Box Quality Requirement | 250-450g/ m2 (according to customers' request) | ||
Capacity | 40~80 box/min | ||
Power | 220V, 50HZ | ||
Machine size | (L)3800*(W)1100*(H)1900mm | ||
Gas source | 0.6~0.8 Mpa | ||
Optional Devices | Automatic feeding device | ||
Machine function and characteristic
1.The machine integrated with electrical ,pneumatic, mechanical , working stable and reliable ,three cams design is the newest innovative and had patent and CE approved .
2.It devices with imported components ,such as omron temperature controller,risk bearing. and all frame are made by ss 304.
3.It uses inverter to control the speed, so could adjust according to the operation need.
4.The mould change easy ,without dismantle drive chain ,hopper .save time greatly
5.New type double safeguard construction , won't broke machine parts for any incident .
6.One way hand wheel prevent from backward operation, and protect worker's safety when the machine operates for still hand wheel.
7.New type dual cutting knife replace traditional single knife, so could use for very long time.
3.It uses inverter to control the speed, so could adjust according to the operation need.
4.The mould change easy ,without dismantle drive chain ,hopper .save time greatly
5.New type double safeguard construction , won't broke machine parts for any incident .
6.One way hand wheel prevent from backward operation, and protect worker's safety when the machine operates for still hand wheel.
7.New type dual cutting knife replace traditional single knife, so could use for very long time.
Details Images
Product convey
the product convey pulls the product into the formed carton.
Box storage slot
Put the box in the storage slot.
Bag taking device
The suction cup automatically sucks the box and shapes the box type.
Pushing device
Push the product into the corresponding tray continuously while the machines is running.
Box ear floding device
The box is automatically folded and sealed during transportation.
Finished product outlet
The product has been placed in the box and the carton has been packaged，the finished product is output.
