Home > Products > Refrigerator door gasket series machines > Automatic refrigerator door gasket magnetic strip inserting machine
Automatic refrigerator door gasket magnetic strip inserting machine
USD $7300 - $9300
/ Set
1 Set(Min.Order)
- Qingdao port
- T/T L/C
- 30 days
You May Like
-
Automatic Refrigerator Door Gasket Production Line with on-line magnetic strip inserting device
-
TPE TPV PVC Automatic Double Corner Refrigerator door gasket welding machine
-
Magnetic strip cutting and inserting machine
-
Magnetic strip cutting and inserting equipment
-
Portable and easy operation manual PVC fridge door gasket seal welding machine >= 1 sets
-
Manual door gasket welding machine/handy refrigerator door seal welder
Product Details
| Place of Origin | China | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description

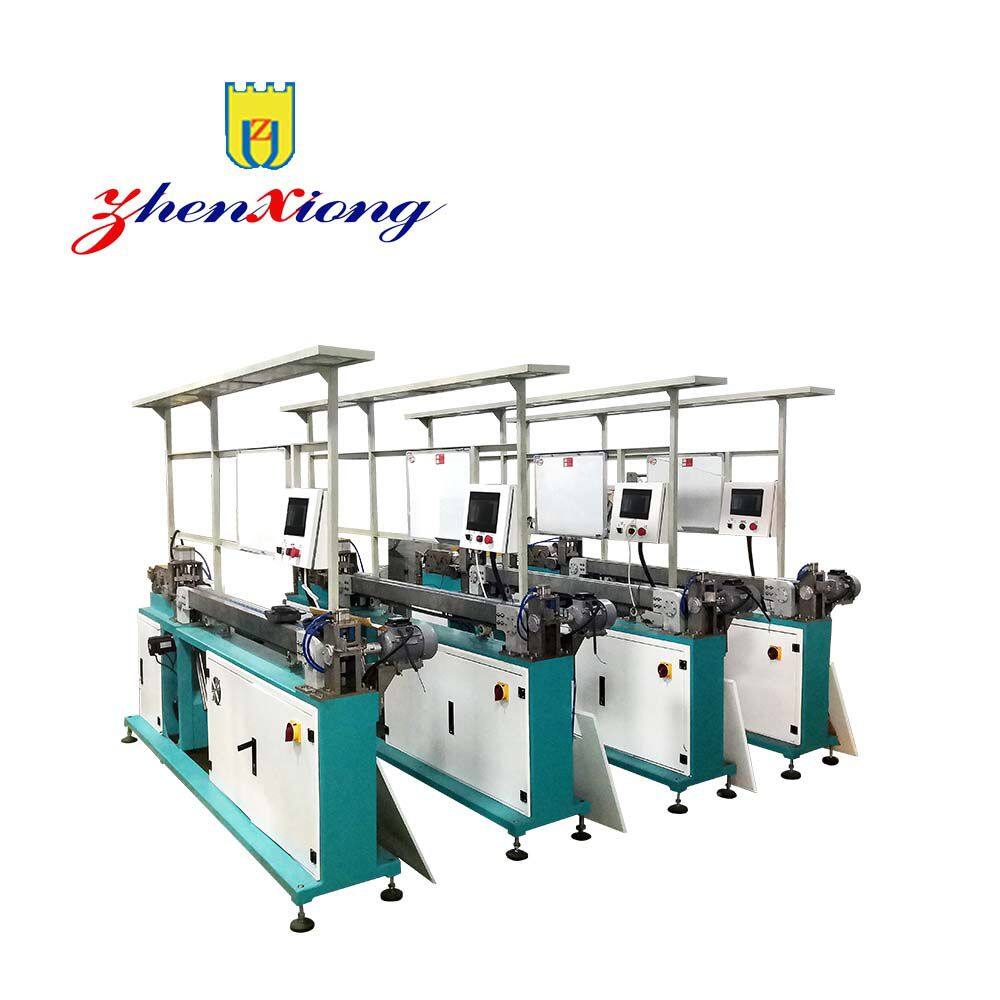

Automatic refrigerator door gasket magnetic strip inserting machine
Product Description
Factory direct magnetic strip inserting machine
Automatic refrigerator door gasket magnetic strip inserting machine
1, The magnet strip inserting machine optimizes foreign advanced conception.
2, It adopts serve control system.
3, Touch screen size parameter inputting. Then inserting the strip into the soft PVC gasket.
4, Power of this machine is supplied by serve motor and cylinder.
5, The magnetic strip transported from strip unwrapping machine is inserted into 45 degree gasket conveniently.
6, The inserting machine produces fridge door seal and gasket fast.
Automatic refrigerator door gasket magnetic strip inserting machine
| Main components | 1.Magnetic strip spreading device |
| 2.Magnetic strip loading device | |
| 3.Magnetic strip pressing device | |
| 4.Magnetic strip tightening device | |
| 5.Magnetic strip inserting device | |
| 6.Magnetic strip cutting device |
| Main Technical parameters | |
| Electrical supply | 380V/50Hz/16A (Designed by the requirement of the client) |
| Max Power | 3.5KW |
| Magnetic strip spreading device dimension | 1200×1200×1200mm |
| Magnetic strip spreading device weight | 120Kg |
| Dimension | 4200×650×1450mm |
| Total weight | 540Kg |
| Working table size | 1300×1200×1100mm |
| Working table weight | 45Kg |
| Control panel dimension | 500×600×1100mm |
Automatic refrigerator door gasket magnetic strip inserting machine
