Home > Products > Ore Beneficiation Equipements > High Efficient Chromite Gold Ore Spiral Chute for Sale With 6s Shaking Table

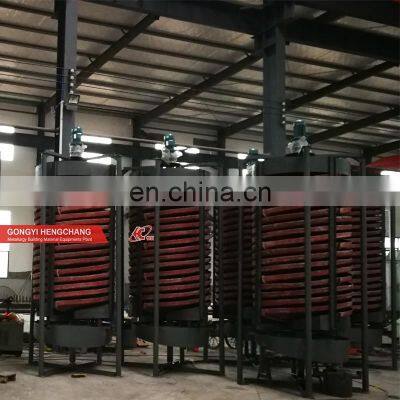

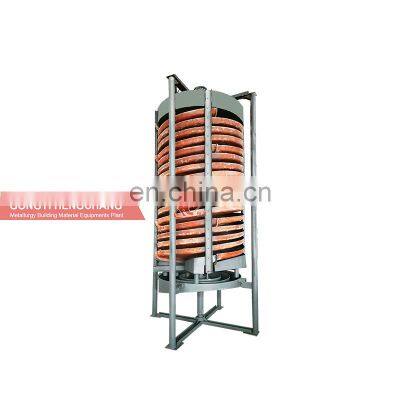

High Efficient Chromite Gold Ore Spiral Chute for Sale With 6s Shaking Table
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
100 Tpd Cil CIP Gold Cyanide Plants Leaching Tank in Africa Including Crushing System Ball Mill System
-
Carbon in Leaching Tank for Gold Mineral Processing African Gold Cil Plant With Thickener
-
50-1000tpd CIP Leaching Tank Small Cil Gold Plant From Hengchang in Tanzania
-
Tanzania 20-500tpd Gold Leaching Absorption Cil CIP Gold Tailing Processing Plant
-
50-1000tpd Gold Leaching Absorption Cil CIP Gold Processing Plant in Zimbabwe
-
Flotation Machine for Gold Copper Iron Chrome Manganese Sliver Leaching Tank Equipment Flotation Plant
Product Description
Products Description
Good Price Gravity Spiral Separator Machine Vertical Gold Spiral Chute Price For Sale

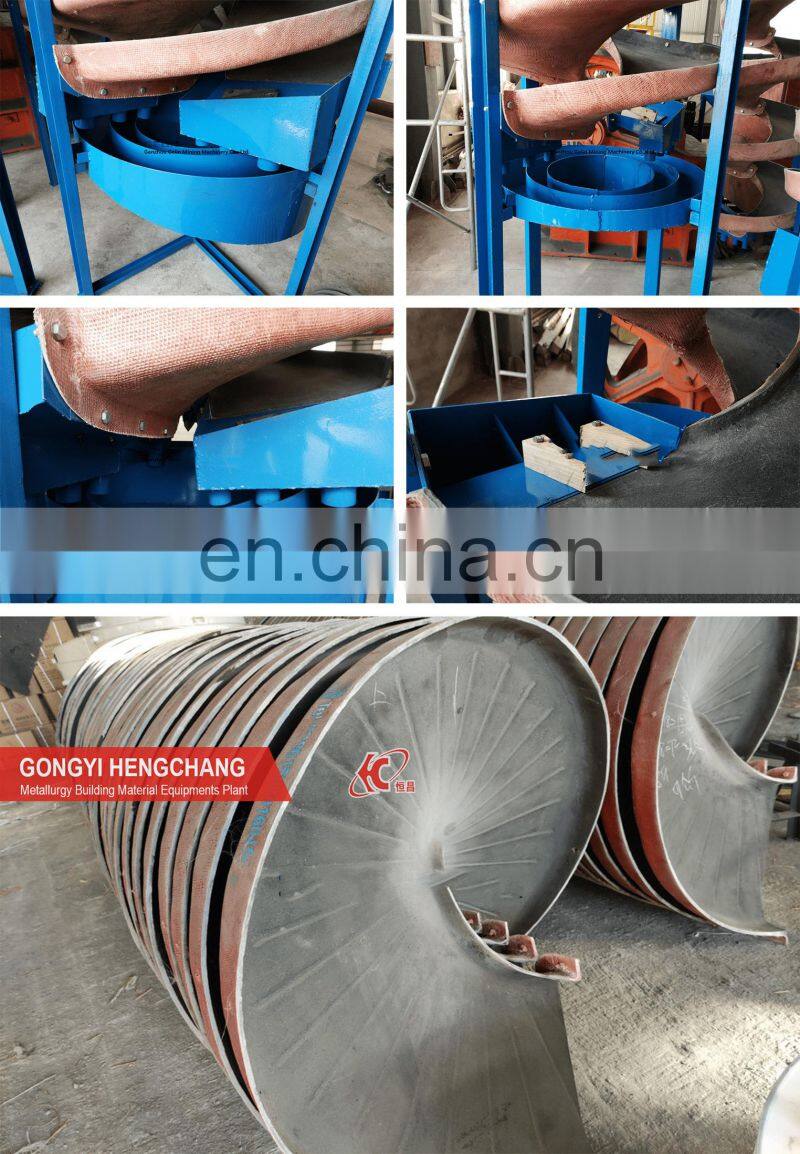

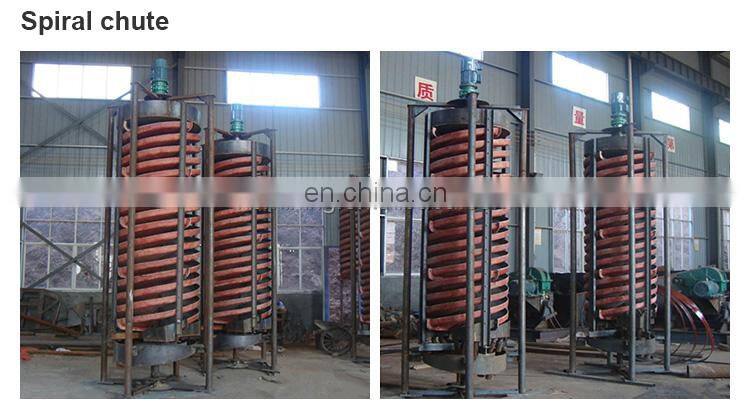

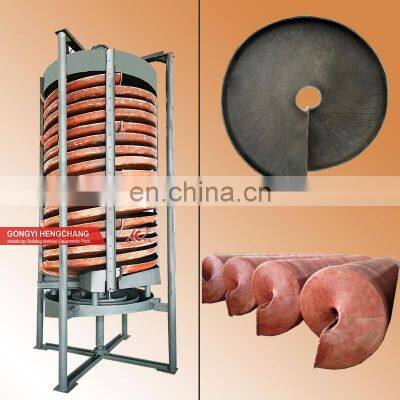

Detailed Images
The spiral chute is used for gold ores,silver ores, placer mines,lead zinc ores, copper ores, tin ores, ilmenite, pyrite,hematite, limonite, chromite, ferberite, tungsten ores. tantalite ores, coal ores, monazite, Sapphire barite, futile, zircon,and silica sands. The sprial chute is the ideal equipment for gravity selecting for the ferrous & non ferrous metal, non-metallic ores and rare earth ores.
It has the advantage of simple structure, light weight, no need power, saving water &electricity, easy to control and high capacity.
It has the advantage of simple structure, light weight, no need power, saving water &electricity, easy to control and high capacity.
You can click here to get preferential prices and more product details!
Technology Introduction
Model | 5LL-2000 | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | ||
Outside Dia. (mm) | 2000 | 1500 | 1200 | 900 | 600 | 400 | ||
Pitch (mm) | 1200 | 800,680,540 | 720,540,360 | 660,540,400 | 450,360,270 | 240,180 | ||
Lateral slope | 9° | 9° | 9° | 9° | 9° | 9° | ||
External size | Length (mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 | |
Width (mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 | ||
Height (mm) | 6500 | 5230 | 5230 | 4000 | 2600 | 1500 | ||
Starts/Turns per column | 4-2 | 4-2 | 4-2 | 4-2 | 2 | 2 | ||
Feeding size (mm) | 4-0.04 | 0.8-0.037 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | ||
Feeding density (%) | 20-45 | 30-60 | 25-55 | 25-55 | 25-55 | 25-55 | ||
Capacity (t/h) | 12-10 | 8-6 | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 | ||
Weight (KG) | 1100 | 800 | 600 | 400 | 150 | 50 | ||

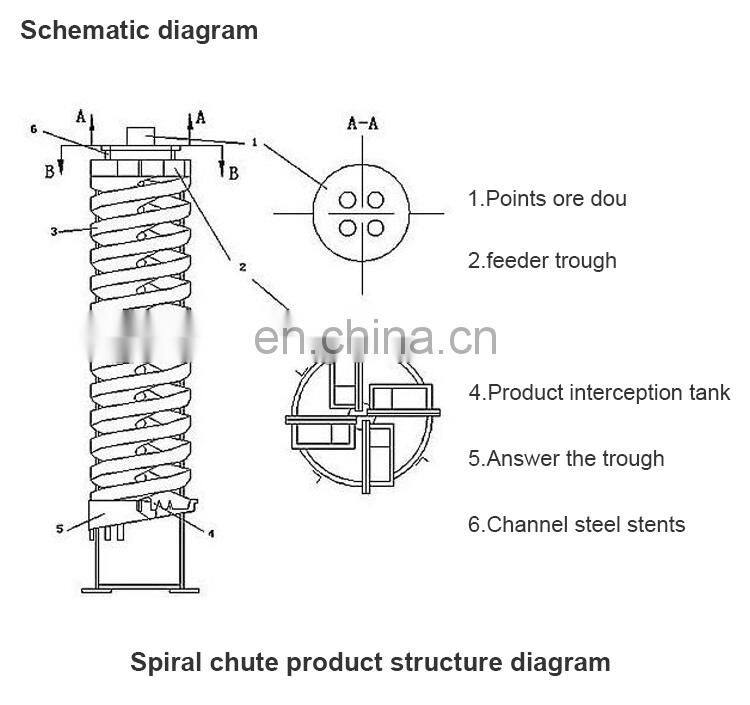

Working Principle
Raise the spiral chute and fix it in the proper position, sand pump transport the ore to the feed inlet, adding water to adjust the concentration of the slurry.
The slurry naturally swirls from high to low, and generates an inertial centrifugal force in the rotating bevel flow rate.
The mineral is separated from the sand by the gravity and centrifugal force of the swirl by the difference in specific gravity, grain size and shape of the ore.
The concentrate flows into the concentrate bucket and is connected by the pipeline. The tail sand flows into the tailing sand bucket and is connected to the sand pool by the pipeline, and then drained by the sand pump to complete the whole process of the beneficiation.
You can click here to get preferential prices and more product details!

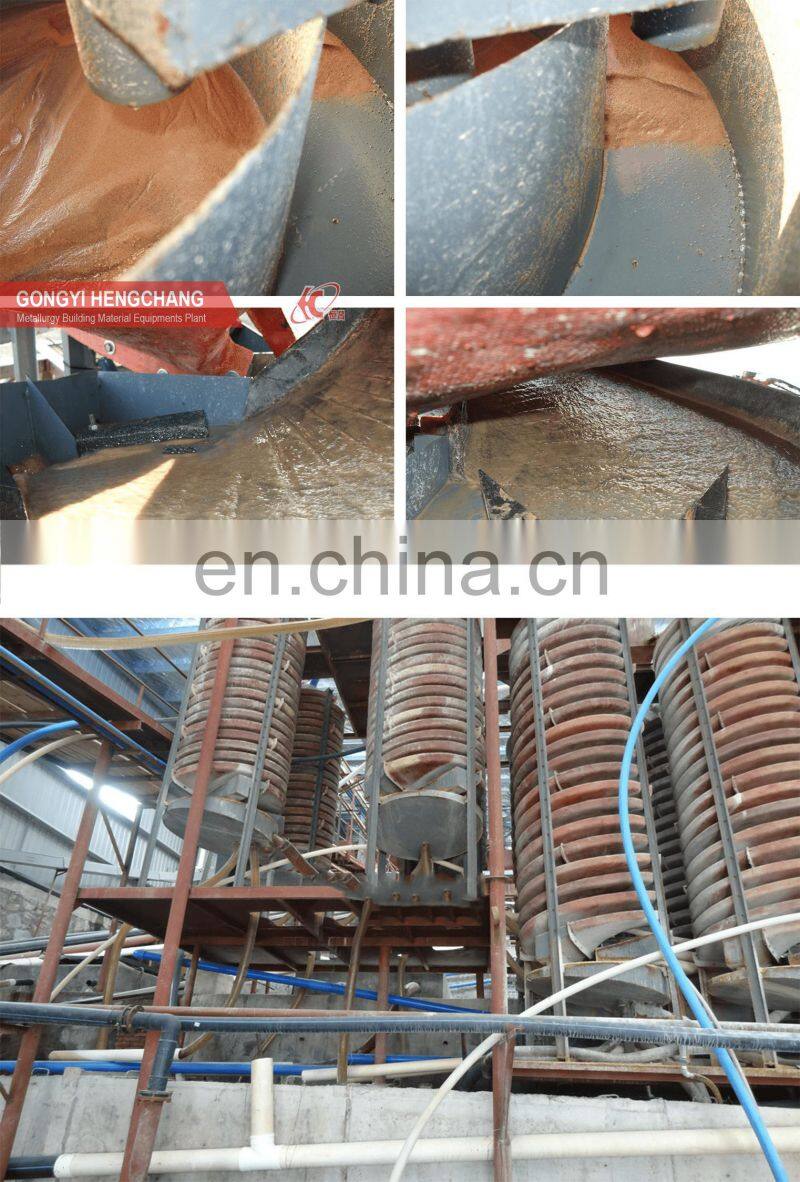

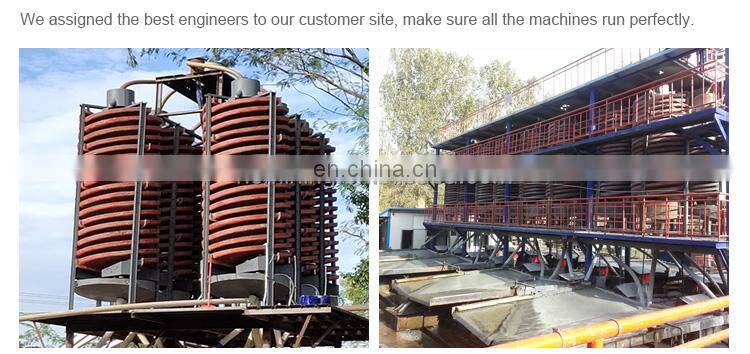

Customer Site
Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Zimbabwe, etc. and our products are well received by customers. Welcome to inquiry!
Company Information & Certification
Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters,including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,powder grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
Customer Visit & Our Service
(A) Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for clients;
4. Services during the sale;
(B)Provide considerate services to minimize clients' worries:
1. Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges...
(C).After-sale services:Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate
the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges..
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate
the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges..

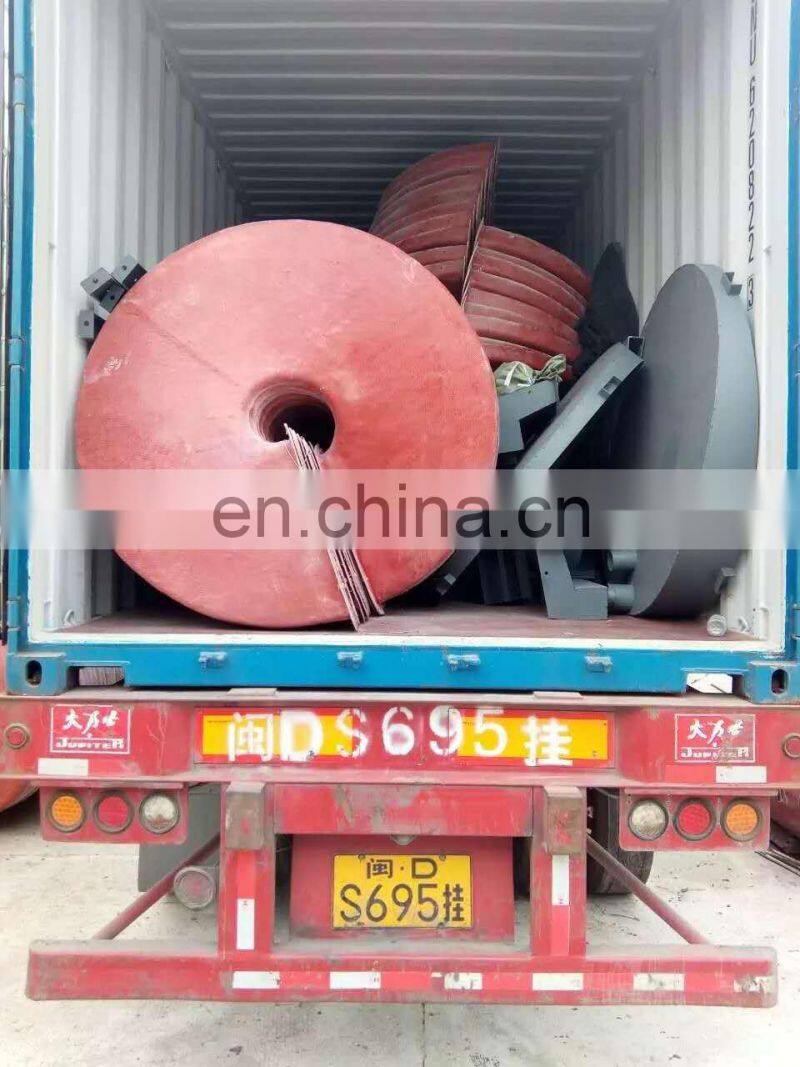

Packing &Delivery
Packaging Details:
We will make different packaging according to different machine sizes standard international export packing,container, wooden box.
Delivery Time:
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan.
After receiving the deposit, we will complete the delivery within 15 to 25working days.
FAQ
Q: For providing you the suitable quotation we need to know the following information:
A:
1.What is the raw material?
2.What is the capacity per hour you required ?
3.What is the maximum input size of the raw material ?
4.What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we
will at our discretion replace or repair the defective parts freely.
A:
1.What is the raw material?
2.What is the capacity per hour you required ?
3.What is the maximum input size of the raw material ?
4.What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we
will at our discretion replace or repair the defective parts freely.
