Product Description
Product Description

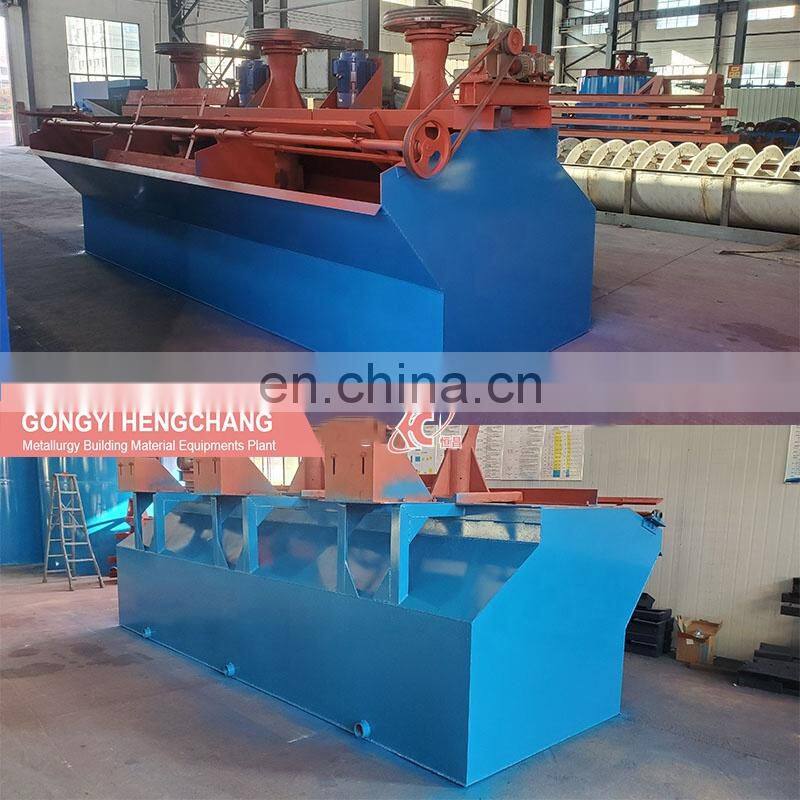

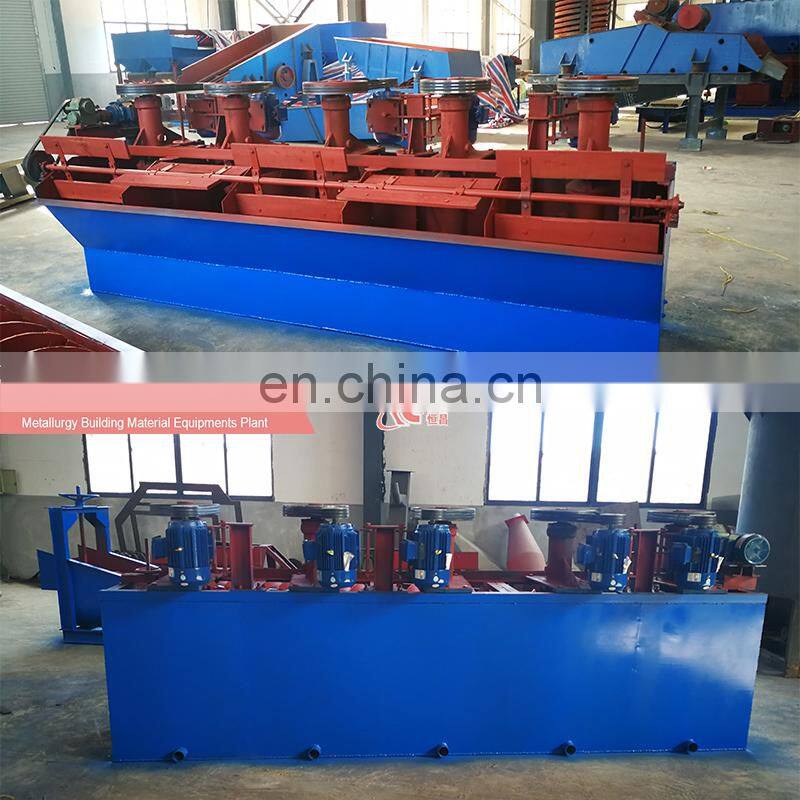

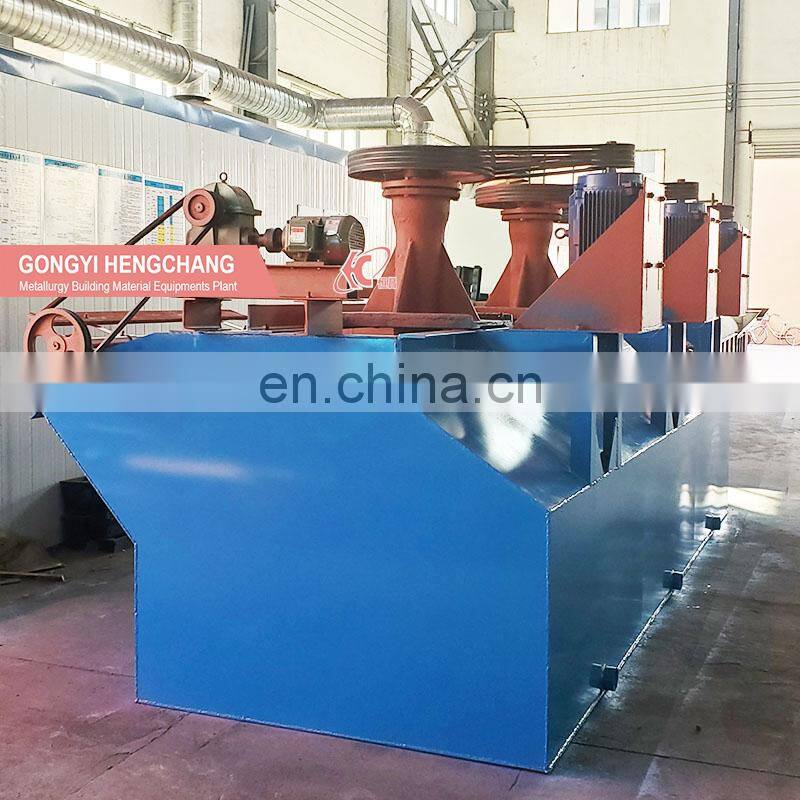

ISO9001 Passed Mining Recovery Equipment Small Separator Metal Separation Copper Ore Gold Froth Flotation Machine Price
Flotation machine is also called flotation cell, which is the mineral separation equipment based on different physical and chemical properties of mineral particles, difference floating or chemical reaction to separate materials. The flotation machine has air suction, pulp suction and flotation functions, which can form self flotation circuit without any auxiliary equipment.
It is horizontally configured, which is easy for process changes. The pulp has reasonable cycle, which can minimize the sand sediments.

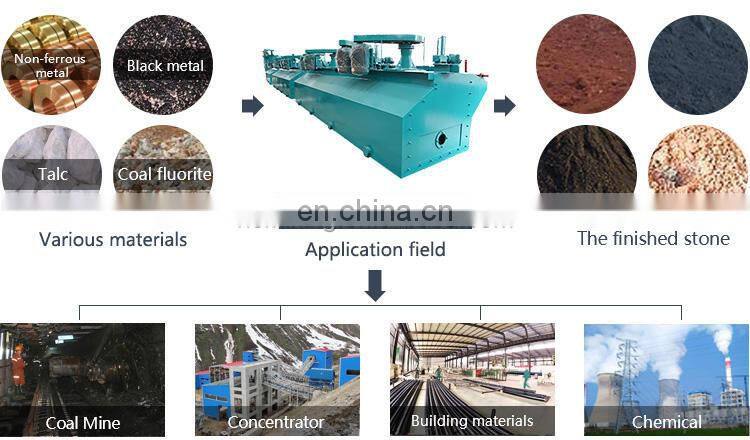

Product Application
Metal ore such as gold, silver, copper, Lead (Pb), Zinc (Zn), Tin, Nickel (Ni) and so on, non-metal mineral, raw body and materials of chemical industry..
The flotation machine is mainly used for sorting non-ferrous metals such as copper, zinc, lead nickel and gold, and can also be used for rough selection and selection of ferrous and non-metal. The motor is driven by the motors V-belt drive to rotate the impeller, which generates centrifugal force to form a negative pressure On the one hand, it absorbs sufficient air to mix with the slurry.
On the one hand, it mixes the slurry with the drug, and refines the foam to make the mineral bond foam Mineralized foam is formed on the slurry surface. Adjust the height of the shutter and control the liquid level so that the useful foam is scraped off by the scraper.

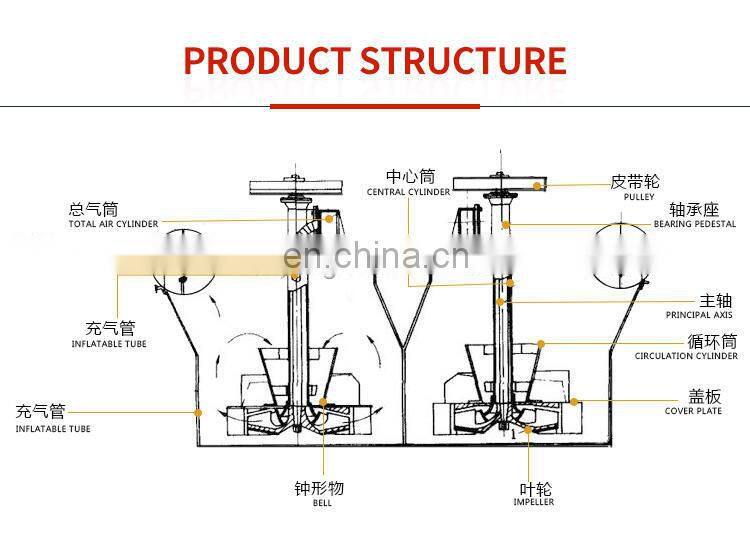

Working Principle
When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled
with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 | ||||
Volume (m³) | 0.37 | 0.7 | 1.2 | 2.8 | 4 | ||||
Impeller diameter(mm) | 300 | 350 | 450 | 550 | 650 | ||||
Capacity (m³/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 | ||||
Impeller Speed(r/min) | 352 | 400 | 312 | 268 | 238 | ||||
Impeller motor | Model | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y180L-6 | |||
Power (Kw) | 1.5 | 3 | 5.5 | 11 | 15 | ||||
Scraper motor | Model | Y90S-4 | Y90L-4 | ||||||
Power (Kw) | 1.1 | 1.5 | |||||||
1.Simple structure, strong agitation ability, and low energy consumption.
2.The impeller is equipped with holey cylinder air alloter.
3.The air scattering is uniform and the mixing effect of air and slurry is good.
4.U-shaped tank, little sedimentation of sand.
5.Solid particles can be fully suspended, high flotation index.
6.Long service life of vulnerable parts.
2.The impeller is equipped with holey cylinder air alloter.
3.The air scattering is uniform and the mixing effect of air and slurry is good.
4.U-shaped tank, little sedimentation of sand.
5.Solid particles can be fully suspended, high flotation index.
6.Long service life of vulnerable parts.
6 Types of Gold Ore:
Gold exists in quartzite. Usually, quartz appears as small stones in large cracks in riverbeds or mountain slopes and has crystals in different colors such as white, yellow, pink, purple, gray, or black. The most common types of quartz with gold ore are rose quartz gold ore and rainbow gold ore. A high gold-quartz ore contains 25% gold by mass, and it occurs in areas where the bedrock is fractured by tectonic and volcanic activity.
Gold exists in quartzite. Usually, quartz appears as small stones in large cracks in riverbeds or mountain slopes and has crystals in different colors such as white, yellow, pink, purple, gray, or black. The most common types of quartz with gold ore are rose quartz gold ore and rainbow gold ore. A high gold-quartz ore contains 25% gold by mass, and it occurs in areas where the bedrock is fractured by tectonic and volcanic activity.

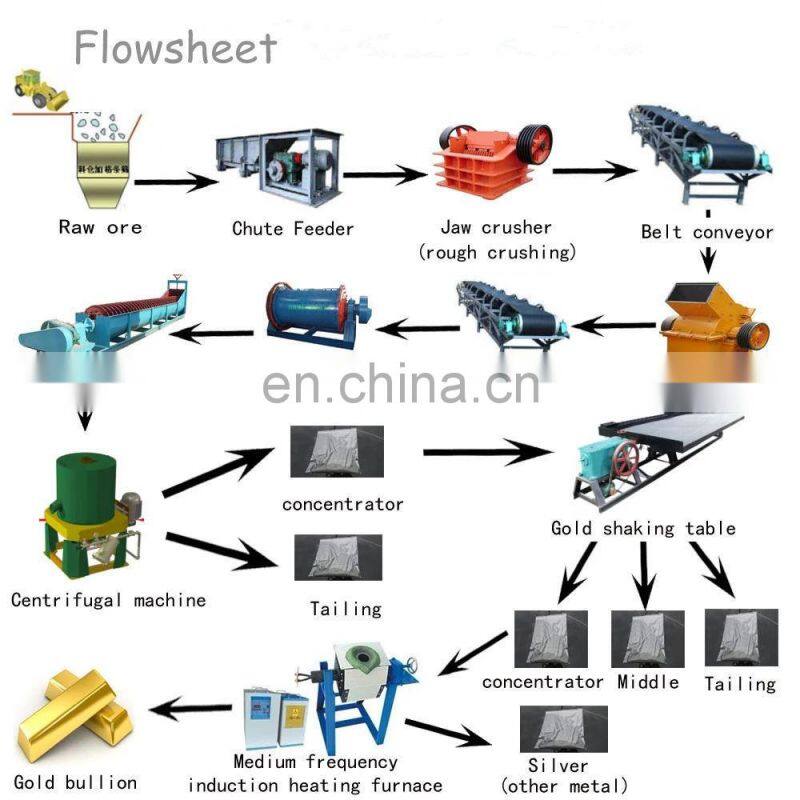

According to different physical and chemical properties of different types of gold ores, flotation separation utilizes various reagents to make the gold attached to the bubbles then scraping these gold particles from blades to get the concentrate
APPLICATION SCOPE:
It is mainly used for the treatment of alluvial gold, as well as in combination with other types of mineral processing techniques.
In addition to deal with gold processing, it can also be used for processing tungsten ore, tin ore, manganese ore, titanium ore,tantalum niobium ore, barite, Iron pyrite, antimony, chrome ore, etc.
It is mainly used for the treatment of alluvial gold, as well as in combination with other types of mineral processing techniques.
In addition to deal with gold processing, it can also be used for processing tungsten ore, tin ore, manganese ore, titanium ore,tantalum niobium ore, barite, Iron pyrite, antimony, chrome ore, etc.
Customer Visits & Exhibition Souvenirs
Company Profile
Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters,including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,powder grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and10,000 tons of crusher parts.
Our Service
Before-sale services:
We guide customers to choose the best and applicable device; provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully . Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully . Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.
Packing &Delivery
Packaging Details:
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
FAQ
Q:Why we believe in Gongyi Hengchang company?
A: 1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliverytime ?
A: The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
A: The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms ?
A: Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
