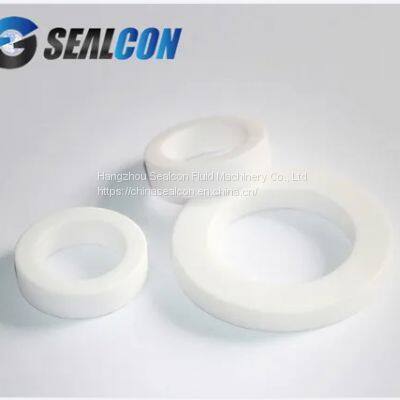

Ceramic Seal

Ceramic material refers to inorganic non-metallic materials made of natural or synthetic compounds through forming and sintering. It has the advantages of high melting point, high hardness, high wear resistance and oxidation resistance. Ceramic mechanical seal is widely used in machinery, chemical industry, petroleum, pharmaceutical, automobile and other fields. Because of its advantages, ceramic shaft seal has become Sealcon’s great choice for sealing materials.

Ceramic Material Properties

Mechanical seals has the high demands about sealing materials, so the ceramic is choosed to make ceramic mechanical seal because of its competitive features.

Mechanical characteristic

Ceramic material is the material with the best rigidity and highest hardness in engineering materials, and its hardness is mostly above 1500HV. Ceramics have high compressive strength, but low tensile strength, poor plasticity and toughness.

Thermal characteristic

Ceramic materials generally have high melting point (mostly above 2000), and have excellent chemical stability at high temperature. The thermal conductivity of ceramics is lower than that of metal materials. At the same time, the linear expansion coefficient of ceramics is lower than that of metal. When temperature changes, ceramics have good dimensional stability.

Electrical characteristic

Most ceramics have good electrical insulation, so a large amount of insulation is used to make all kinds of voltages (1kV~110kV). Ferroelectric ceramics barium titanate (BaTiO3) has high dielectric constant which can be used in the production of capacitor, ferroelectric ceramics. A few ceramics also have the characteristic of semiconductor, can be a rectifier.

Chemical characteristic

Ceramic material is not easy to be oxidized at high temperature, and has good corrosion resistance to acid, alkali and salt.

Optical characteristic

Ceramic materials also have unique optical properties, which can be used as solid laser materials, optical fiber materials, optical storage containers, etc. Transparent ceramics can be used in high-pressure sodium lamp tubes.Magnetic ceramics (ferrites such as MgFe2O4, CuFe2O4, Fe3O4) have a wide range of applications in recording tapes, records, transformer cores, and large computer memory components.

Mechanical Sealing Material

Rubber Seal

Stainless Steel Seal

PTFE Seal

Carbon Seal

Ceramic Seals

SiC Mechanical Seal

TC Seal

Physical Property of Ceramic Seal Ring

Sealcon is a professional carbon seal ring manufacturer, we provide china agitator, ceramic pump, ceramic seals for pumps, ceramic o ring, ceramic seals for water pumps, quality mechanical seals and etc. For more information, please feel free to contact us!
